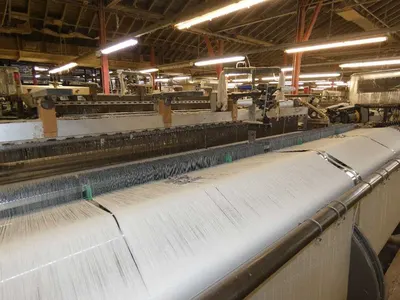

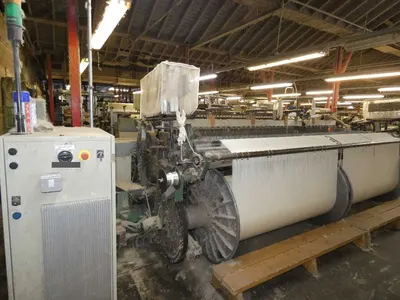

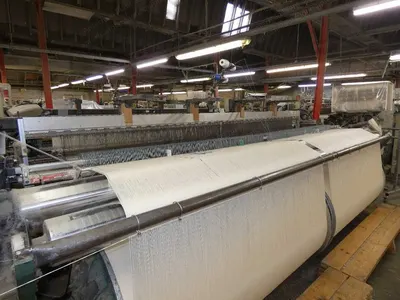

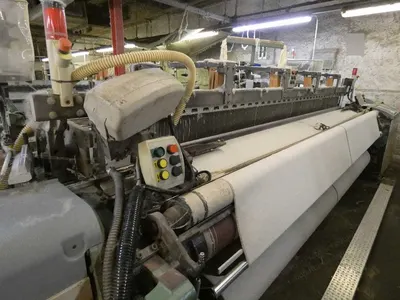

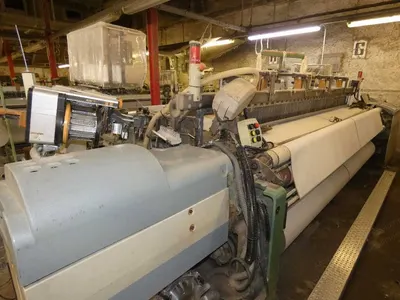

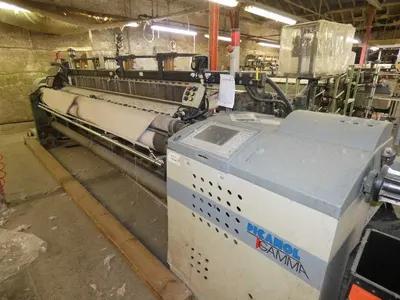

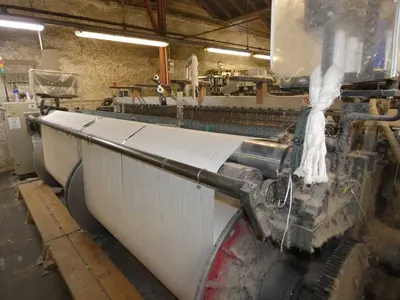

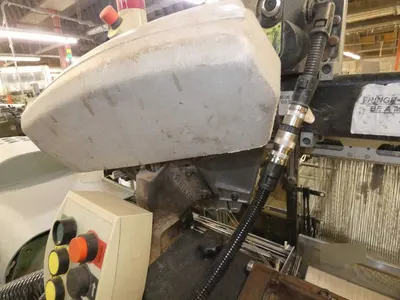

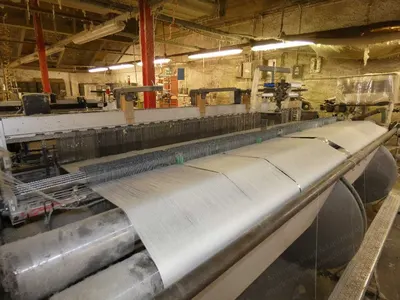

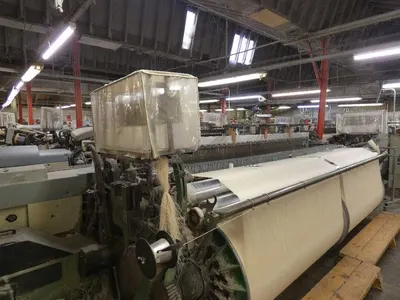

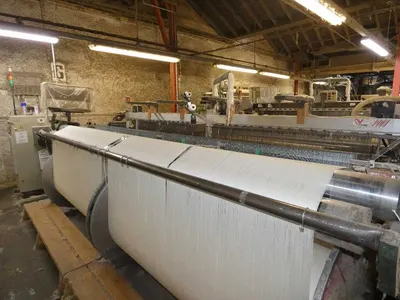

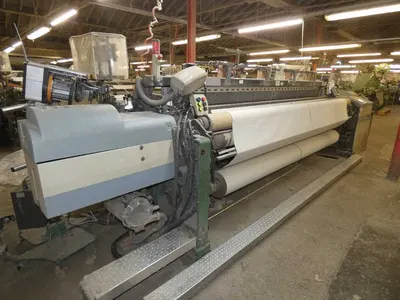

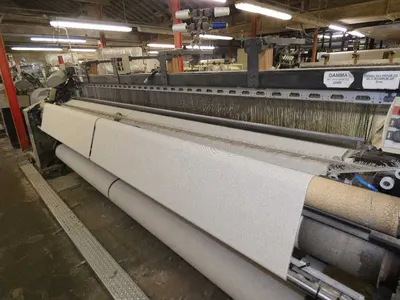

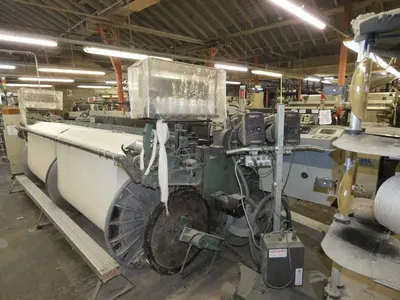

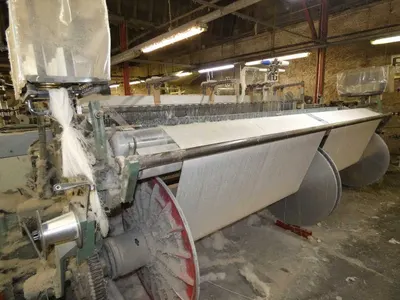

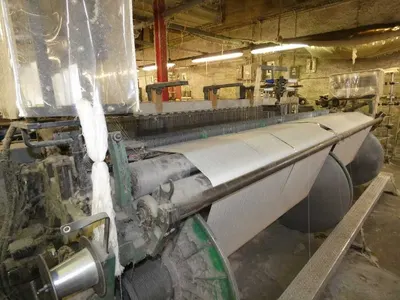

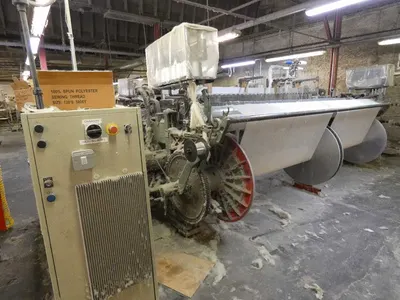

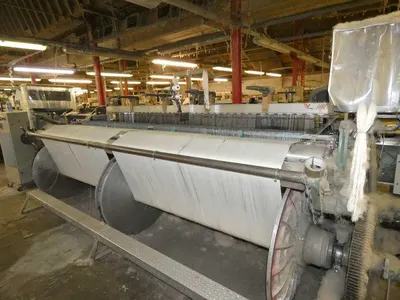

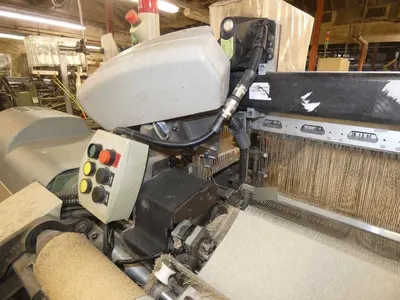

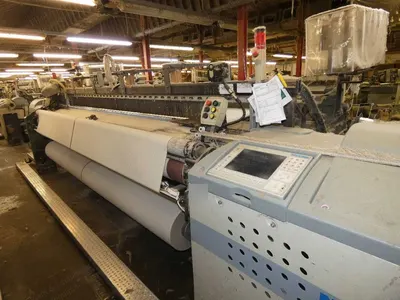

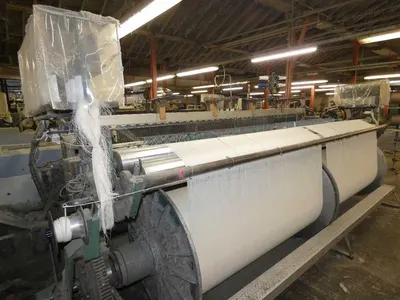

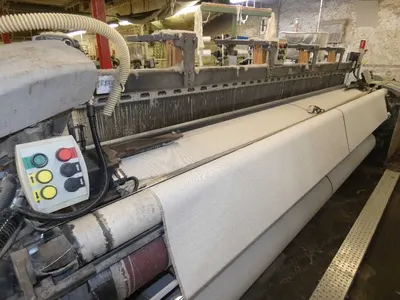

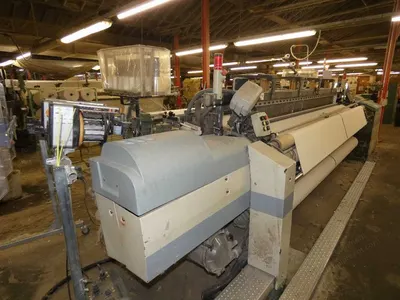

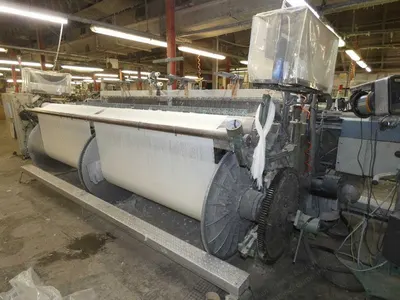

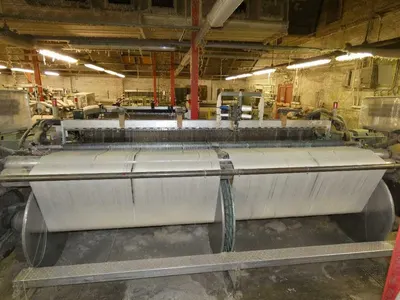

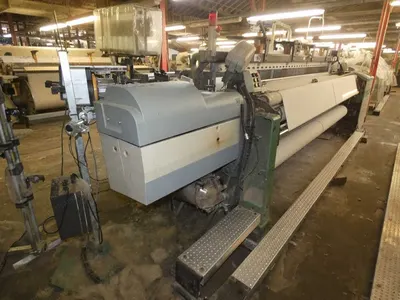

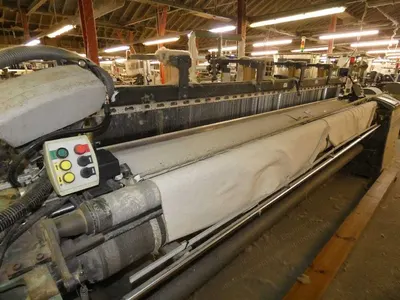

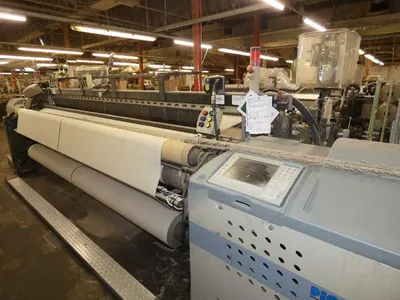

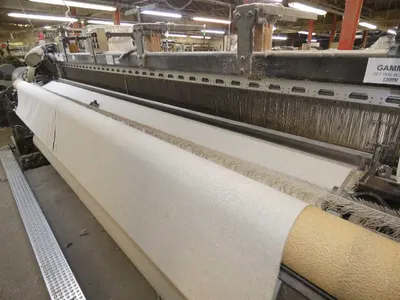

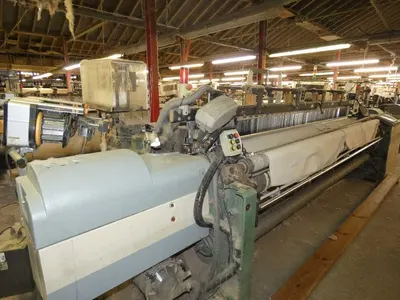

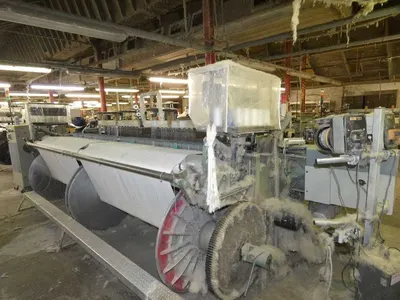

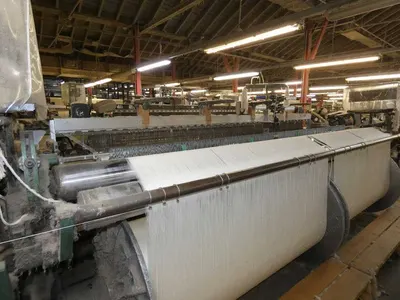

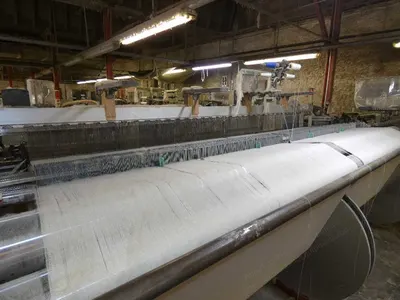

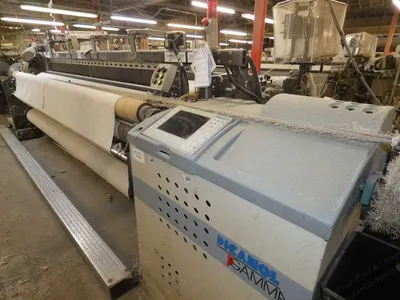

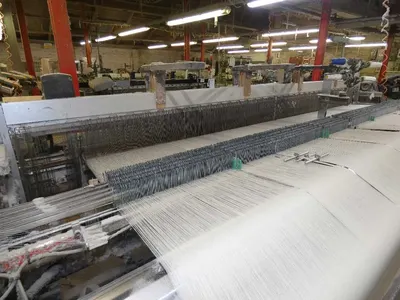

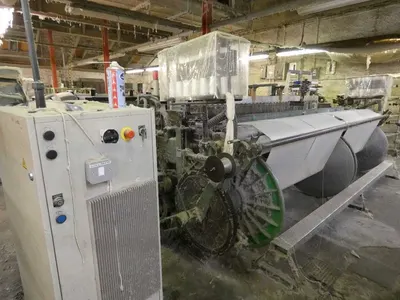

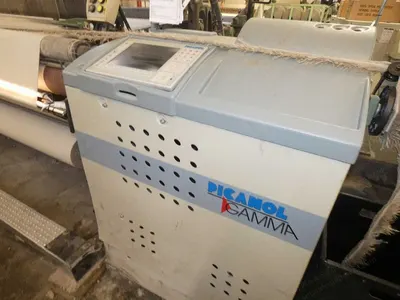

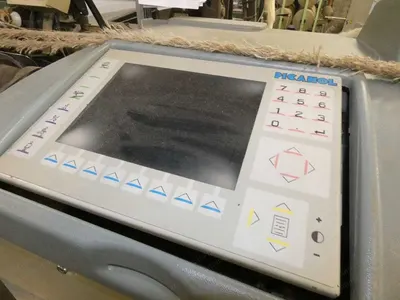

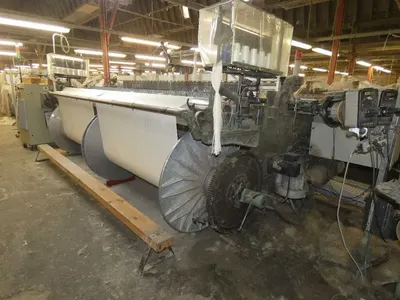

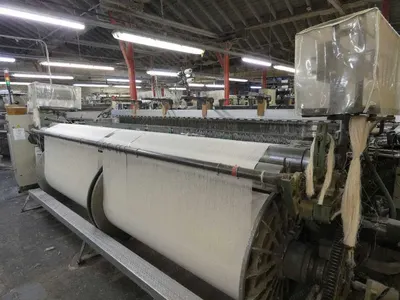

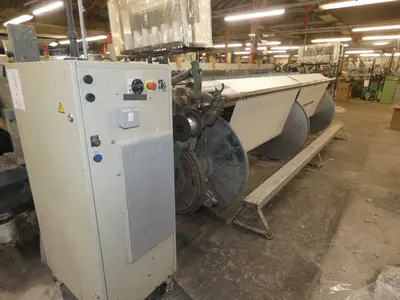

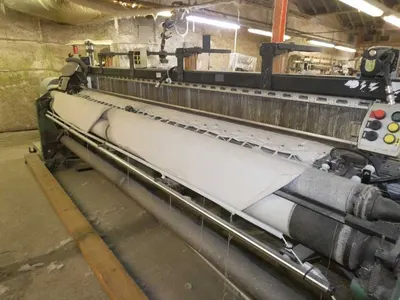

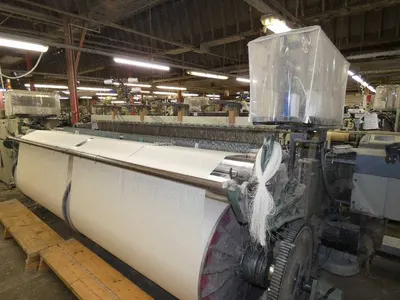

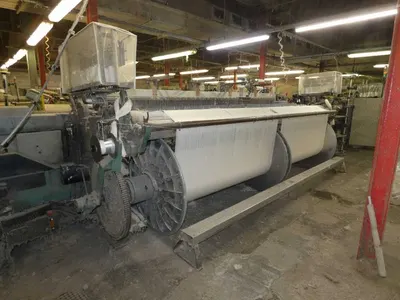

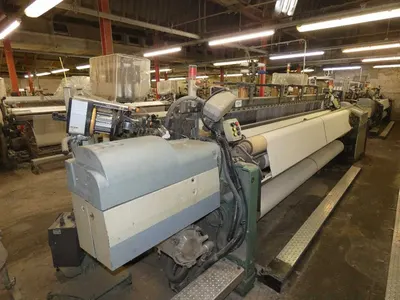

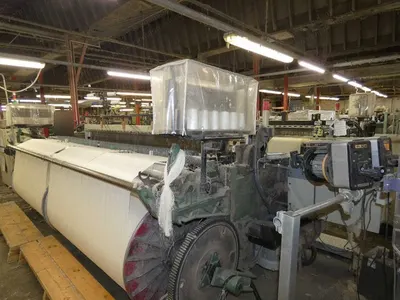

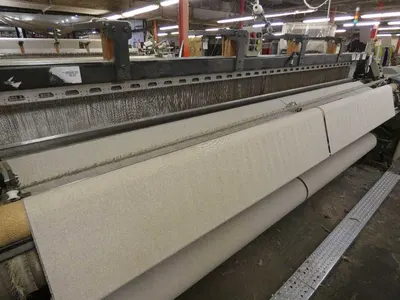

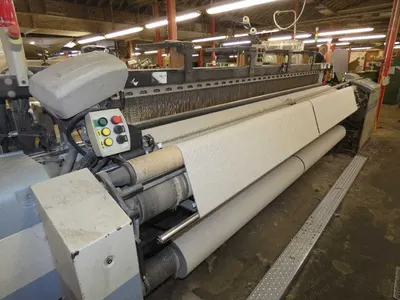

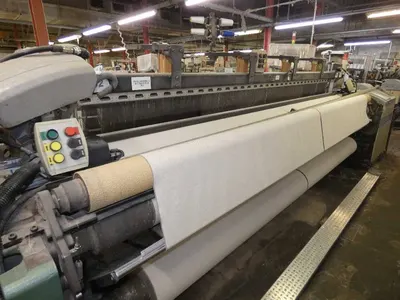

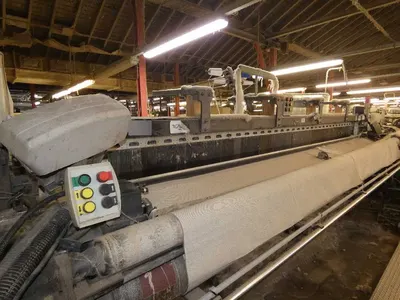

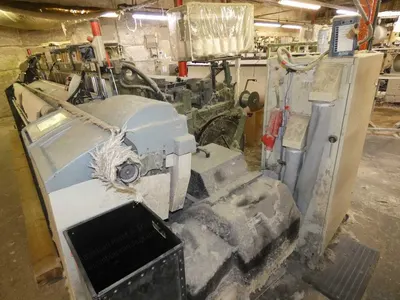

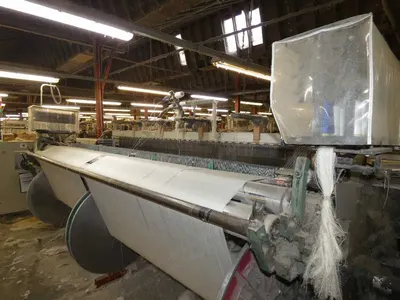

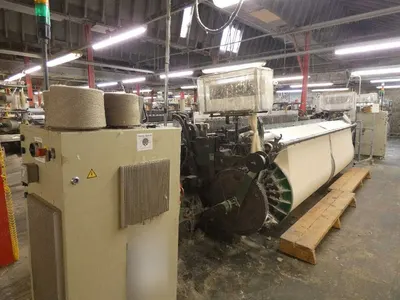

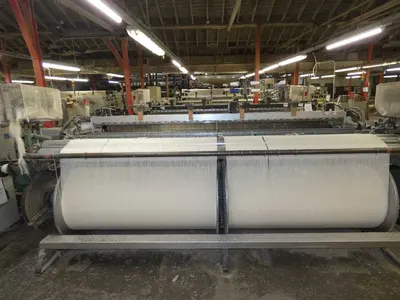

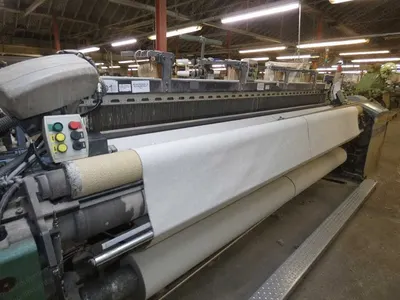

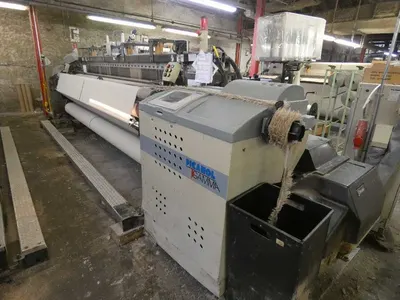

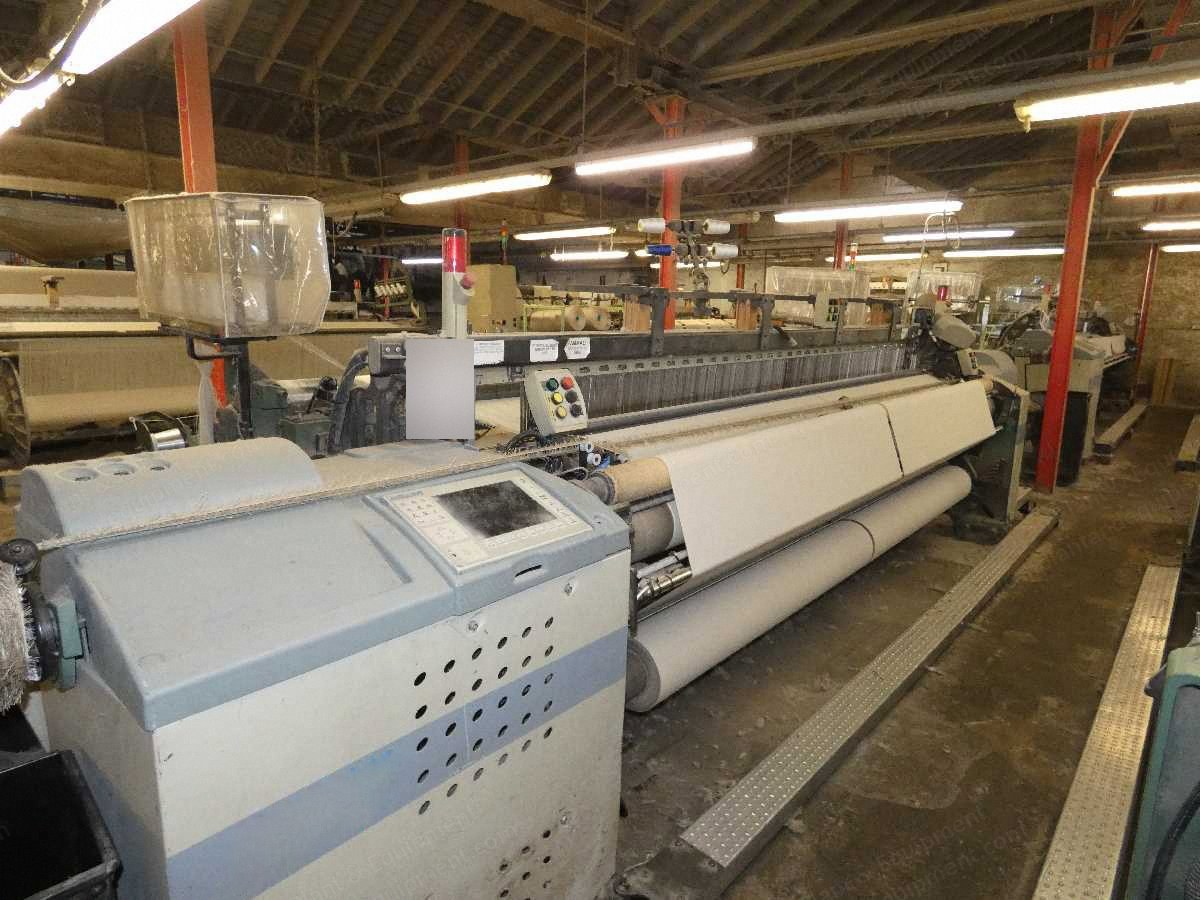

Picanol, Gamma 8-R, 1998, 3400mm Working Width, 8 Colors, Staubli 2670 Dobby

Picanol, Gamma 8-R, 1998, 3400mm Working Width, 8 Colors, Staubli 2670 Dobby

Description

  1. Overview
    1. Working width: 3400mm
    2. Year: 1998

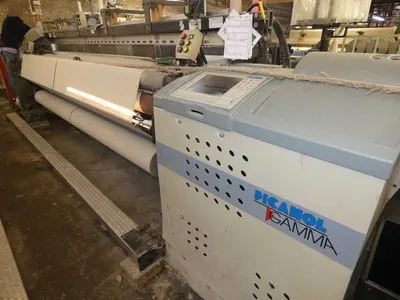

    3. Type: Picanol Gamma 8-R
    4. Weft insertion: flexible guided rapier
    5. Loom speed: 600 (max)
    6. Weft colors (max): 8

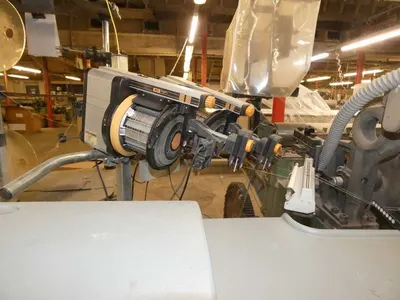

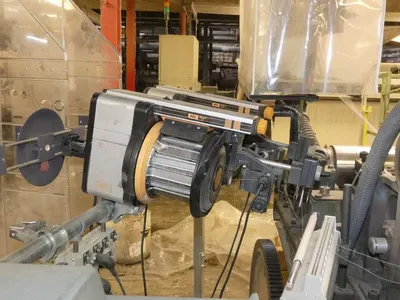

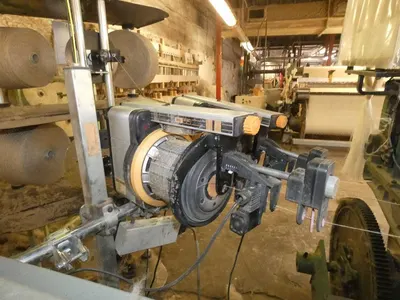

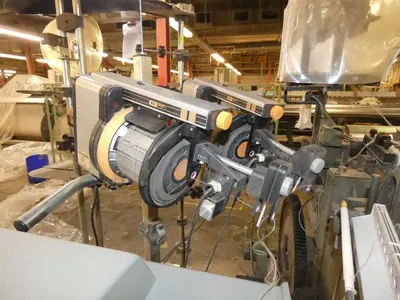

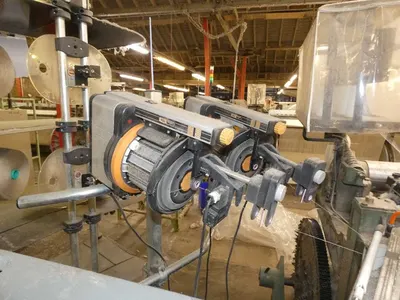

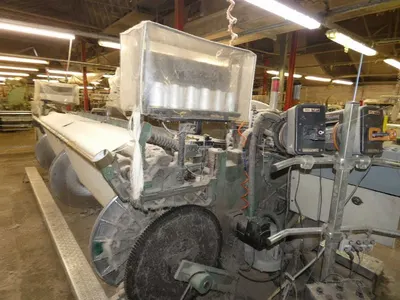

  2. Weft Accumulators
    1. Accumulators: 2
    2. Make and type: Roj Quarz
    3. Selectors: 2 - 5

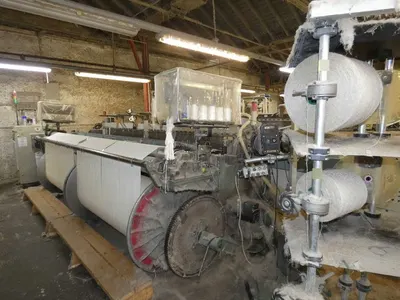

  3. Selvedge and Cone Stand

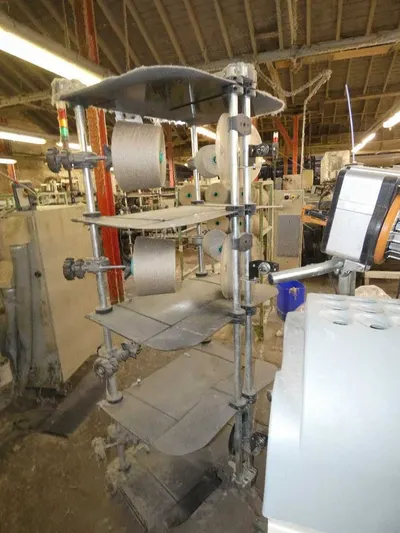

    1. Cone stand: 1

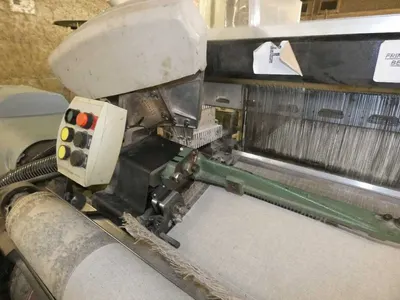

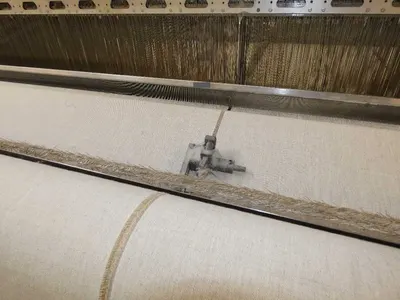

    2. Selvedge type: leno / cut
    3. Selvedge waste bin: 1
  4. Dobby and Shafts

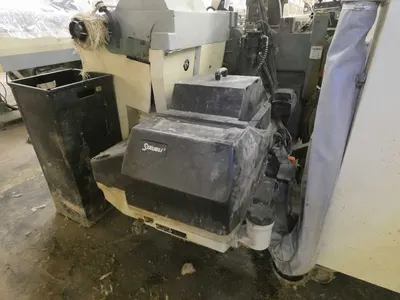

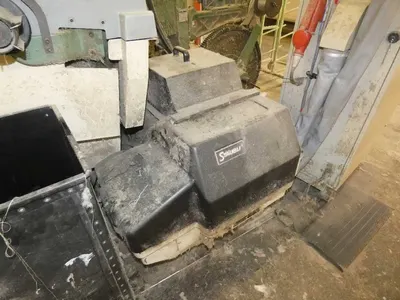

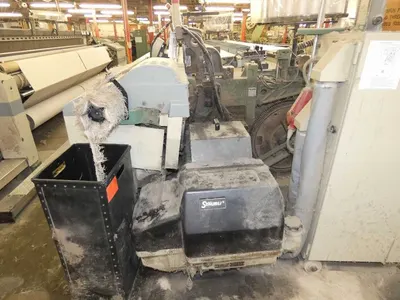

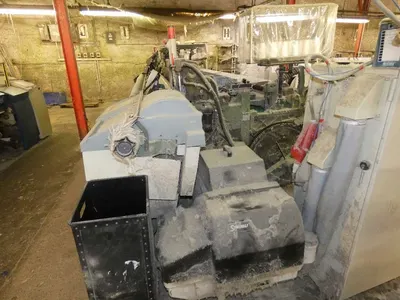

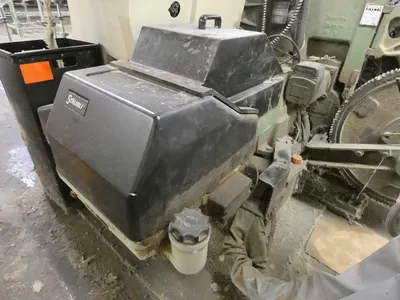

    1. Dobby model and type: Staubli 2670
    2. Max possible shafts: 18
    3. Installed under motions: 18
    4. Frames supplied: 4 shafts min (more if available at factory)

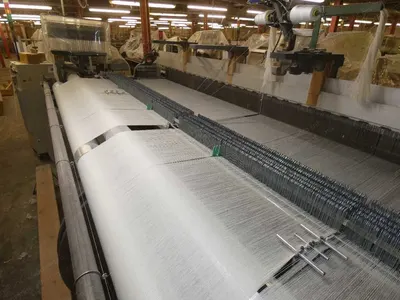

  5. Loom Components
    1. Dropper bars: 5
    2. Loom take-up: electrical
    3. Loom let-off: electrical

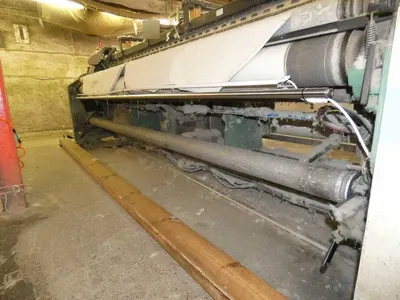

    4. Warp beams: 1 (800mm and 1000 flange)
    5. Cloth rollers: 1
    6. Heddles: as on looms
    7. Droppers: as on looms (7000)
    8. Spares: none
  6. Electrical Supply and Manuals
    1. Electrical supply: 3 phase 380-440V, 50Hz
    2. Manuals: all associated manuals available in the factory
  7. Production and Condition
    1. Currently being used in the production of: woven apparel and furnishing cotton and linen fabrics
    2. Status: still operating and can be seen running
    3. Condition: complete and in good working condition
