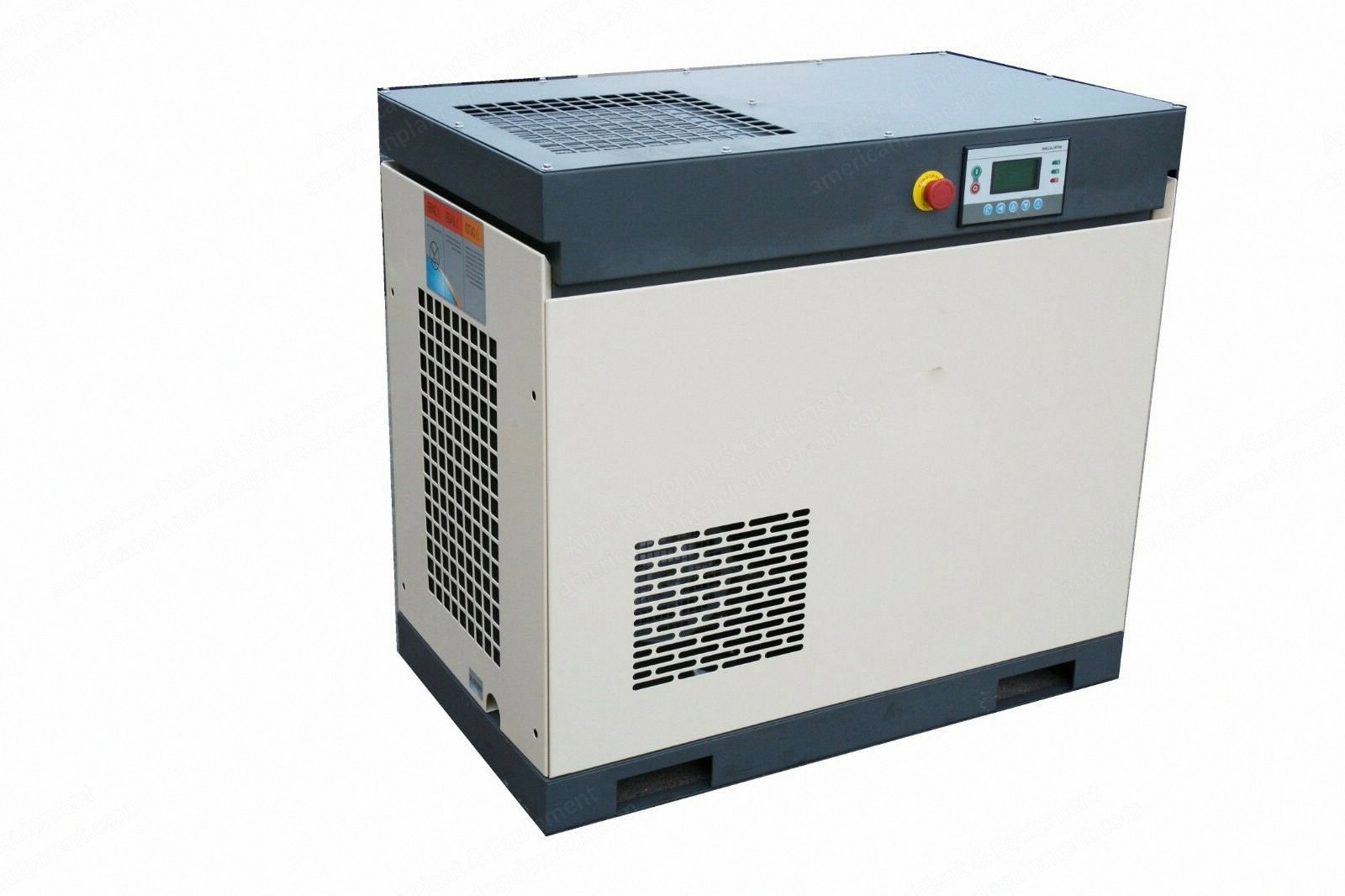

GS Compressor, GS-40, 40 HP, 178 CFM, 175 PSI (New)

GS Compressor, GS-40, 40 HP, 178 CFM, 175 PSI

Description

  1. Overview
    1. Gs 40 hp rotary screw air compressor with 178 cfm output
    2. Gs compressor brand
    3. The gs-40 series air compressor is a single stage, air cooled, oil injected rotary screw air compressor package
    4. The compressor package includes the rotary screw compressor, main drive motor, air and oil system, filters, oil cooler, cooling fan and controls
    5. The gs rotary screw compressor is designed for continuous duty operation
    6. All units are fully enclosed with a cabinet for a low sound level
    7. The compact design requires a minimum amount of space with an extremely low noise level for ease of placement in any facility
  2. Specifications
    1. Rated horsepower: 40 hp (30 kw)
    2. Airflow volume: 178 cfm
    3. Capacity: 178 cfm at 100 psi
    4. Maximum pressure: 175 psi
    5. Operating pressure: 60-175 psi
    6. Rated voltage: 208 v, 220 v, 230 v, 240 v, 460 v
    7. Voltages: 208/230/460/480 (3-phase)
    8. Current phase: 3 phases
    9. Sound level: 63 dba
    10. Cooling: air/oil
    11. Weight: 1500 lbs
    12. Dimensions (l-w-h): 53 x 34 x 48 in
    13. Controls: on/off dual control
    14. Modified item: no
    15. Custom bundle: no
  3. General Technical Information
    1. All voltages available
    2. Wye-delta start for low power consumption is standard
    3. Air inlet and particle filters are standard
    4. Integrated cooling system
    5. Air and oil lines are copper and stainless steel braided
  4. Separation System
    1. Multi-stage air/oil air separator filter system
    2. Asme and crn approved safety valve
    3. Air/oil separator reservoir tank with oil level sight glass
    4. Easy oil drain excess
  5. Air Control
    1. Certified with a ce listed electrical components
  6. Drive System
    1. Integrated v-belt system plus easy tension system
    2. International standard pulleys are used for ease of maintenance and long life
  7. Airend
    1. German engineered high efficiency male and female rotor design
    2. Oil injected during compression stage for lubrication and sealing
    3. State of the art air/oil temperature sensor at discharge of compressor
  8. Cooler
    1. Plate fin air cooled aluminum oil cooler which is cooled by a dedicated cooling fan
    2. Oversized cooling capacity allows for simple operation at high ambient temperatures
  9. Fan
    1. Fan is mounted on the cooler to allow operation of compressor with side panels off
  10. Electric Motor
    1. High efficiency motor meeting nema requirements
    2. Foot/flange mounted motor frame
    3. Tefc (totally enclosed fan cooled) to protect motor providing longer life
    4. Special winding coating for longer life
    5. Ip54 insulated motor
  11. Electric Control
    1. Simple design and construction provides ease of repair for minimum down time
  12. Intake Valve
    1. Automatic dual control optimizes the air demands of your compressed air system
  13. Oil Separation System
    1. High efficiency air and oil separation provides less than 3 ppm carryover for clean pure air
  14. Filtration
    1. All filtration and filter media are made of space age technology to handle the atmospheric water, pressure and high temperatures to ensure clean and debris free working capacity
  15. Enclosures
    1. Gs compressors come with a cold rolled steel plated enclosures
    2. A 250 degree varnish ensures rust resistance for a long life
    3. High density environmental friendly dampening materials are used to reduce noise levels from compressor
  16. Plc Electronic Control
    1. Intelligent control system displays fault codes with description for ease of maintenance and short down time
  17. Warranty
    1. The gs compressors come with a 5 year limited warranty
  18. Condition
    1. New: a brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable)
    2. Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag
