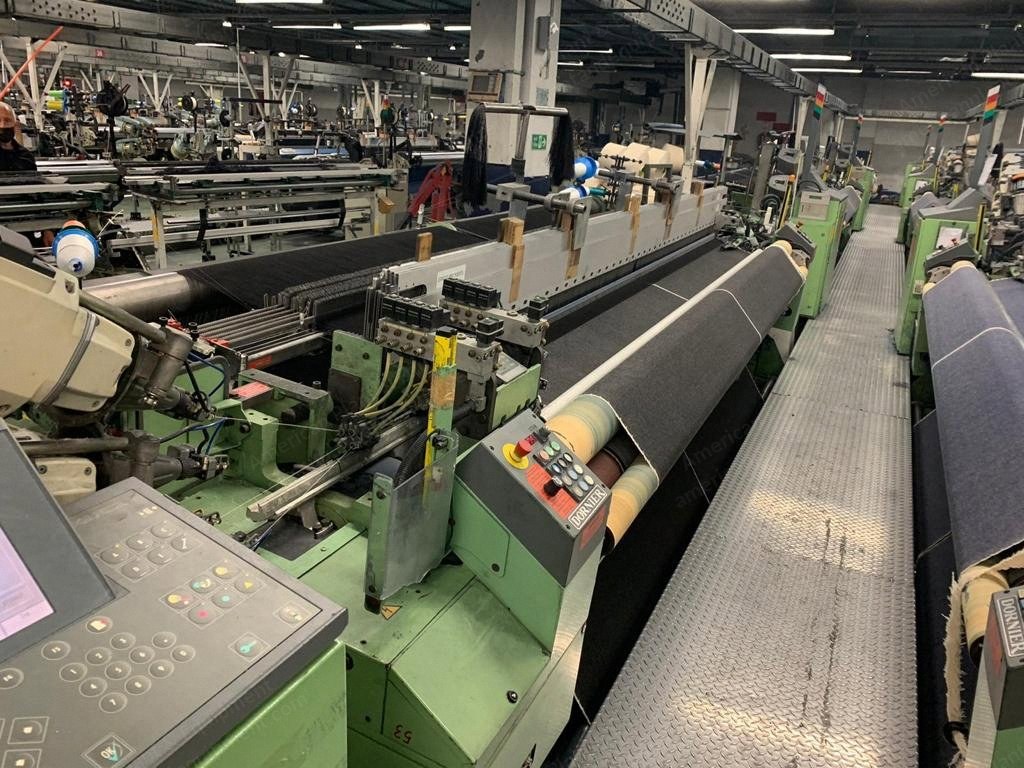

Dornier, AWS 4/E, 2004, Air-Jet Loom, 4000mm Working Width, 4 Colors, Staubli Cam Motion

Dornier, AWS 4/E, 2004, Air-Jet Loom, 4000mm Working Width, 4 Colors, Staubli Cam Motion

Description

  1. Overview
    1. Dornier air-jet looms
    2. Type AWS 4/E
    3. AT2 panel
    4. Year 2004
    5. Working width 4000 mm
    6. 4 weft colors
  2. Specifications
    1. Staubli cam motion 6 to 8 shafts installed
    2. Split warp beams
    3. Max. warp beam diameter 1016 mm
    4. Off-loom take-up
    5. 2 electronic warp let-off motors (EWL - RHS + IHS)
    6. Electronic take up (ECT)
    7. Positive weft clamp (PWC)
  3. Accessories Per Loom
    1. 4 weft feeders with el. panel (ROJ SuperElf)
    2. 6 heald frames Grob 13”
    3. 6 cams (4 x 3/1 and 2 x 2/2)
    4. 3 to 4 half warp beams
    5. 8000 heddles and droppers
    6. No batching motion
