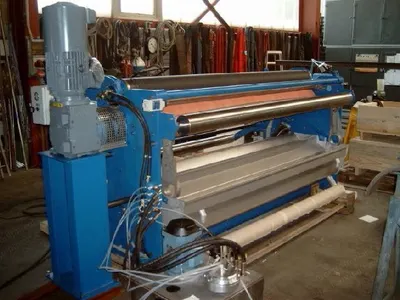

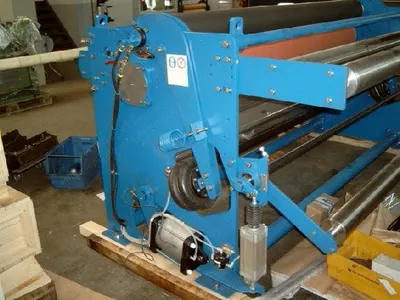

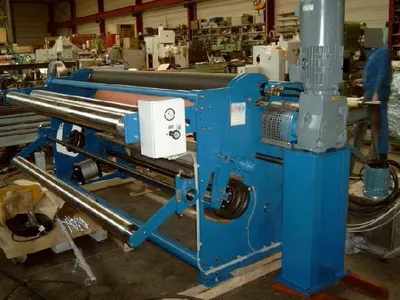

Kuesters, 222.52 / 2000, Overhauled 2021, 2-Roller Finishing Dyeing Padder, 2200mm Working Width, 2400mm Roller Width

Kuesters, 222.52 / 2000, Overhauled 2021, 2-Roller Finishing Dyeing Padder, 2200mm Working Width, 2400mm Roller Width

Description

  1. Overview
    1. Type 222.52 / 2000
    2. 2-roller finishing padder with 1 “swimming roller” (s-roller)
    3. Origin: Germany
    4. Machine overhauled in year 2021
    5. Overhauled, delivered with guarantee
  2. Specifications
    1. Width of goods: 2200 mm
    2. Roller width: 2400 mm
    3. Number of rollers: 2 pieces
    4. Carrier roller diameter: 270 mm
    5. Roller cover: soft rubber, 75 degrees shore
    6. S-roller diameter: 210 mm
    7. Roller cover: soft rubber, 75 degrees shore
    8. Line pressure: 50 N/mm
    9. Total pressure: 12 to
    10. Drive journal/pin diameter: 70 mm

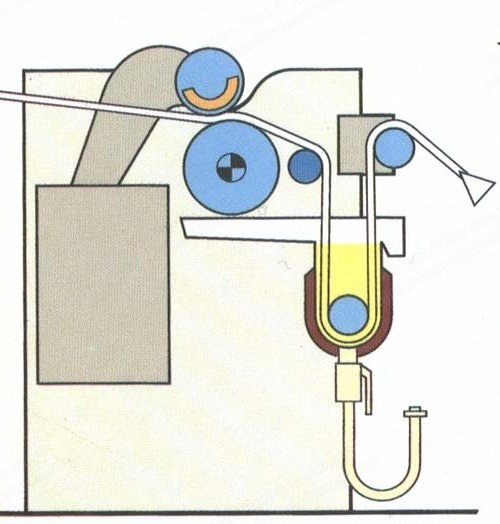

  3. Goods Guidance
    1. Goods guide for woven goods
    2. 1 curved spreader roller
    3. Wide holder, 1 guide roller
    4. Fleet basin with displacement body + 1 guide roller
    5. Pendulum roller control (compensator) with pneumatic discharge
  4. Drive and Controls
    1. Drive side according to order
    2. Operator side after order
    3. Additional frequency drive to fit the machine into a system is possible
    4. Hydraulic panel for joint pressure application made of stainless steel
  5. Condition
    1. Machine is complete before delivery
    2. Overhauled
