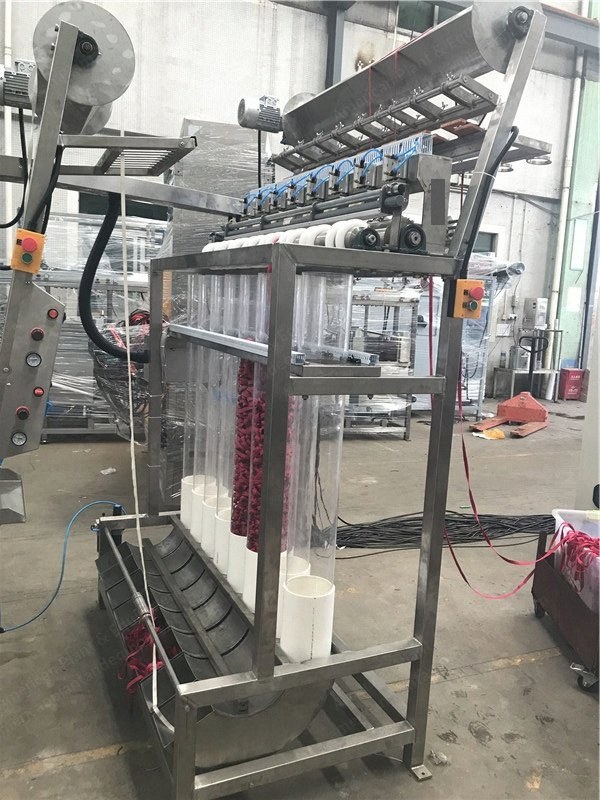

NovaStar, DG520, Continuous Dyeing Machine, Working Width 400mm, 8 Strips
Scroll to zoom
100%
Description
Overview
Complete set normal temperature continuous dyeing machine for nylon elastic tapes
Continuous dyeing machine for nylon elastic tapes into any color
Working width: 400 mm
Output capacity: speed 0 to 25 meter/strip/minute, adjustable according to elastic tapes weaving type, color shadow, and width and length
Number of tapes: 1 to 8 strips every time, depending on elastic tapes width
Heating system: steam
Options
J-box: 1 set of 8 separate j-boxes for 8 elastic tapes
Computer control: 1 set with one touch screen, PLC 1 set, to program and save all machine parameters such as temperature, speed, etc., as governed by the property of a particular fabric
Buyer Preparation
Air compression hp
Boiler: 400 kgs
Pressure reducer
All pipes for steam, water and waste water and wires contacting
