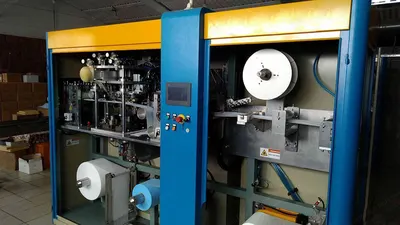

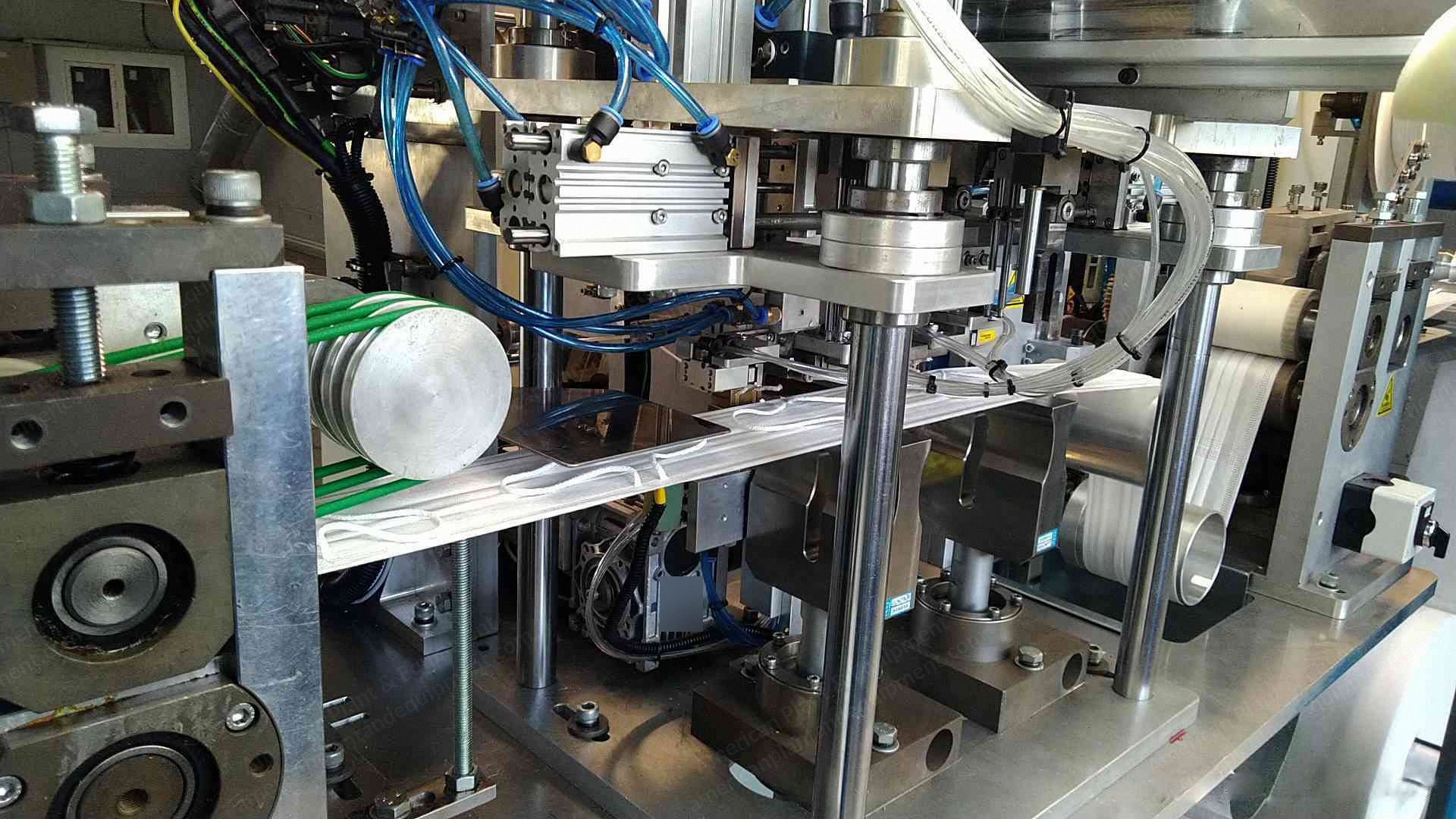

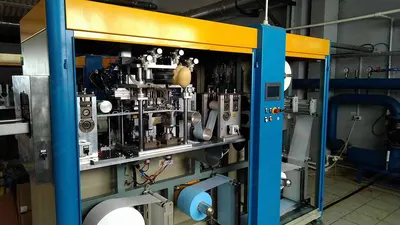

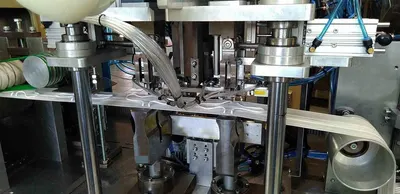

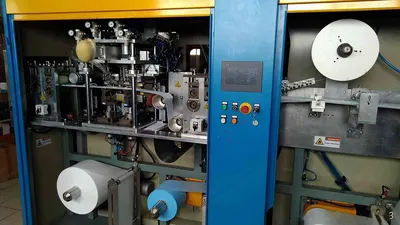

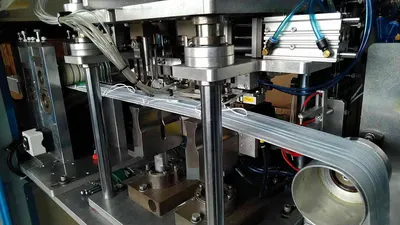

NovaStar, FM264, Full-Automatic, Disposable Medical Mask Production (New)

NovaStar, FM264, Full-Automatic, Disposable Medical Mask Production

Description

  1. Overview
    1. Mini full-automatic disposable mask machine is a late-model of full-automatic disposable mask machine.
    2. The machine makes multi-layer fabrics into various masks by form-folding, ultrasonic welding, ear ribbon welding and nose wire welding.
    3. Compared with traditional disposable mask machines, it only needs one device to complete the whole mask making process, greatly reducing the space occupied by the production line.
    4. Full-obturated production design provides a set of reliable safety protection for operators.
  2. Intended Use
    1. Specifically designed for high speed and stable production of masks.
    2. Adjust the production speed of disposable masks according to your production requirements.
  3. Equipment Description
    1. Full-obturated production design, available for the mask of inner-ear or external-ear type.
    2. Easy operating, minimum space occupation, available for air transport.
    3. Equipment's work is reliable and stable, and operation becomes easy and convenient.
  4. Equipment Components
    1. Fabric feeder and its accessories provide fabric for the process of disposable mask making.
    2. Fabric folding and guiding mechanism finishes the stacking and folding of the fabric.
    3. Nose wire mechanism performs the responsibility of inserting, cutting and welding of the nose wire.
    4. Edge-welding mechanism.
    5. Ear ribbon feeding mechanism provides ear ribbon for the machine and ear ribbon welding mechanism welds the ear ribbon to the mask.
    6. Pulling unit and rolling cutter cuts the masks off from the equipment.
  5. Specifications
    1. Working principle: servo control.
    2. Rated air pressure: 0.6-0.7 mpa.
    3. Rated power: approx. 5 kw.
    4. Power supply: ac 3-phases, 480 v and 50/60 hz.
    5. Input current: 12 a.
    6. Cable section: 5 x 6 mm².
    7. Working temperature: +5 °c to +35 °c.
    8. Weight: approx 1100 kg.
    9. Noise emission: the a-weight emission sound pressure level at workstations does not exceed 70 db (a).
  6. Consumable Material Data
    1. Non-woven fabric.
    2. Fabric width: 130 to 250 mm.
    3. Inner diameter of fabric roll: min. 76 mm.
    4. Outer diameter of fabric roll: max. 550 mm.
  7. Working Range
    1. Adult size: 175 x 95 mm.
  8. Modes of Operation
    1. Automatic mode: the equipment can continuously and automatically work for production purpose.
    2. Standby: the equipment is standby when each part of the equipment is in place and production materials are ready.
    3. Manual mode: when maintenance or set-up needs to be conducted, you can switch the equipment to manual mode.
    4. Fault: the equipment alerts the operator when an abnormal event occurs.
