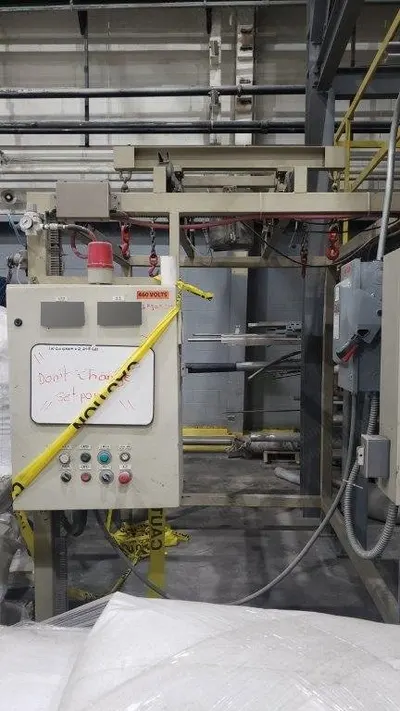

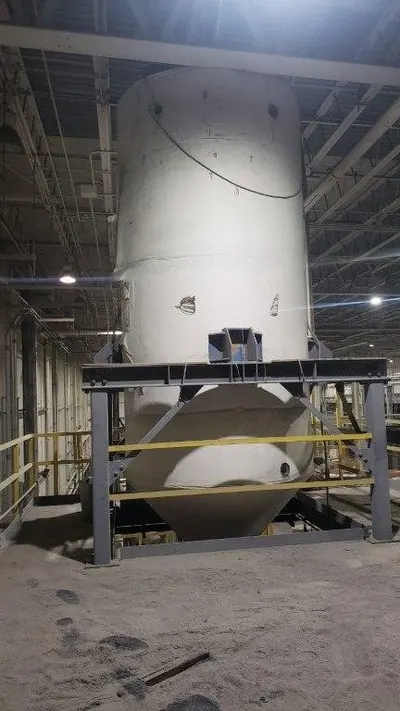

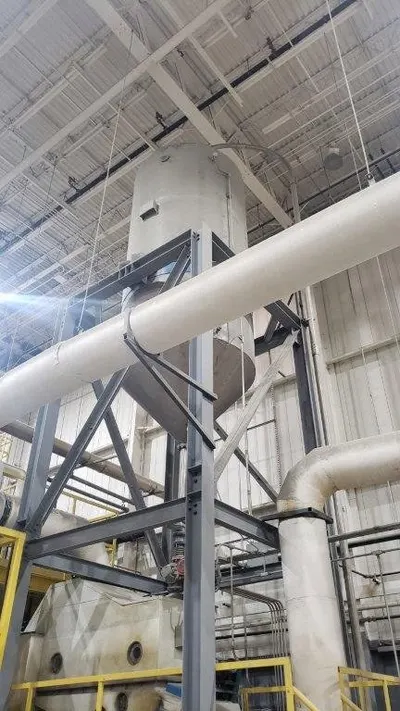

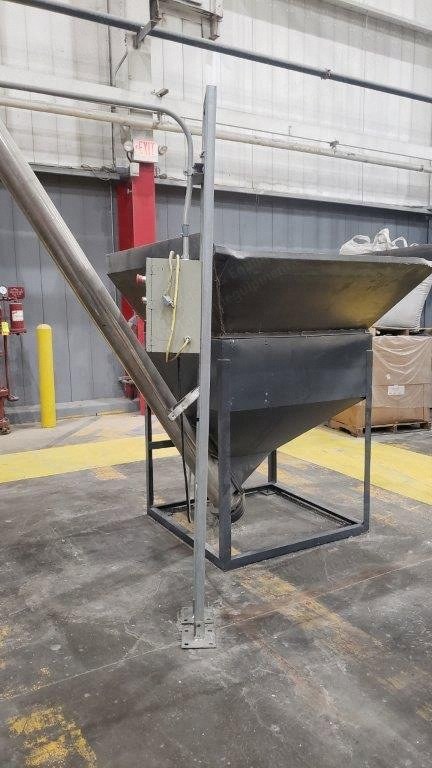

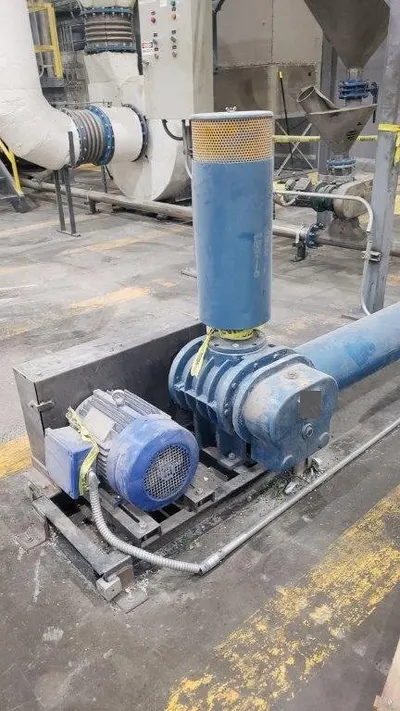

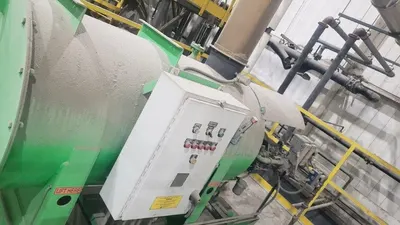

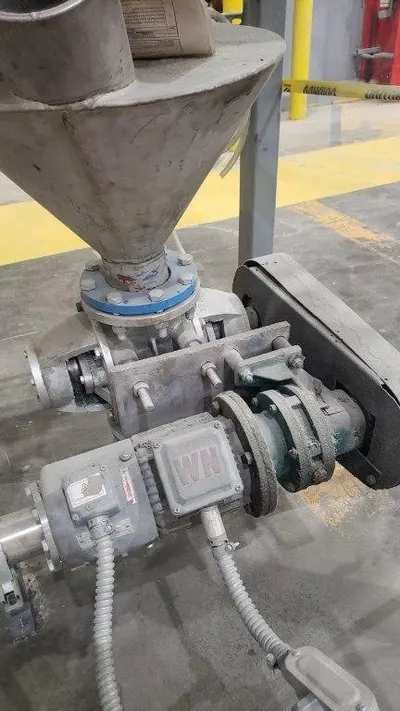

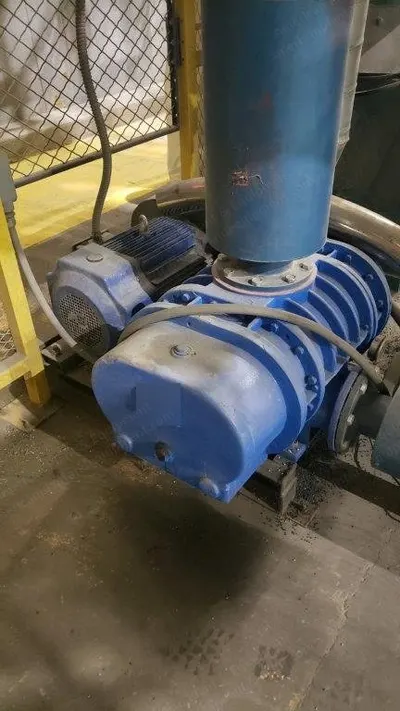

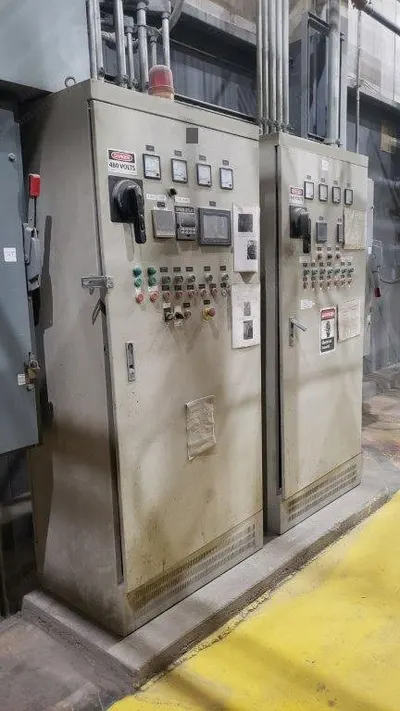

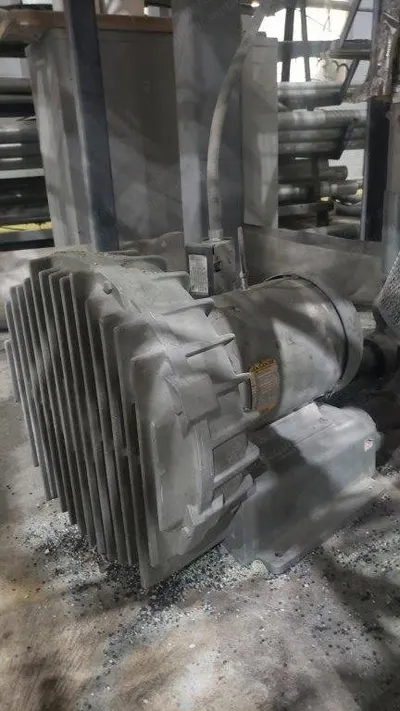

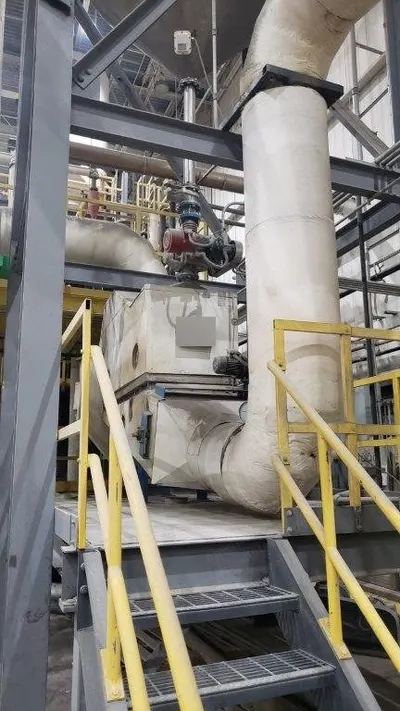

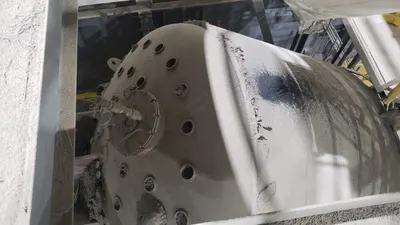

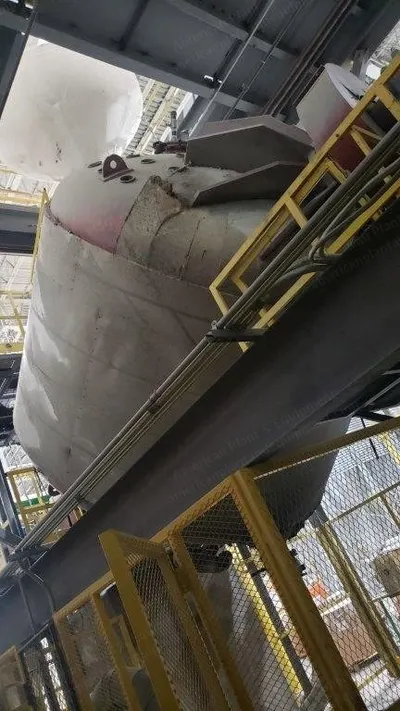

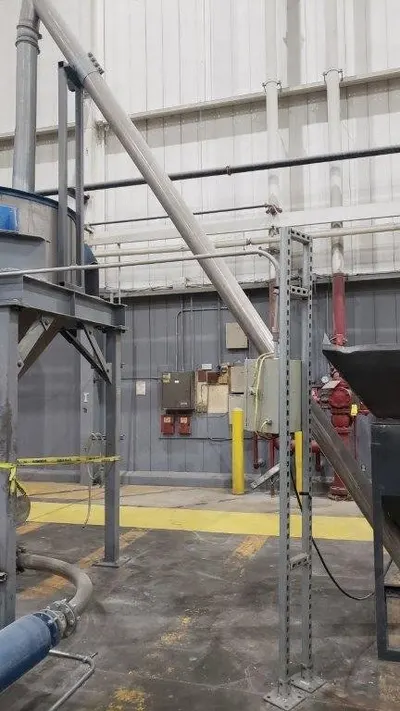

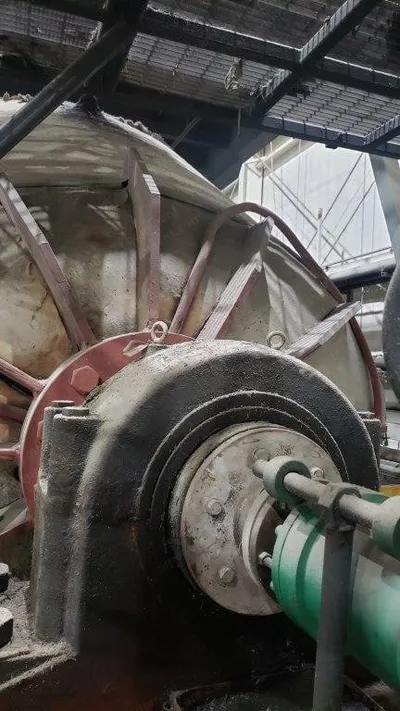

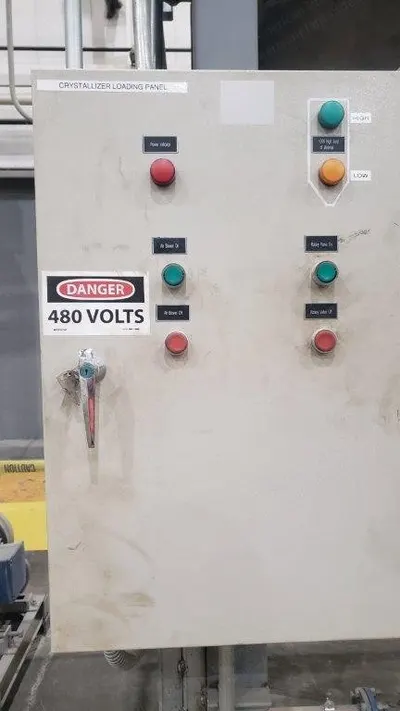

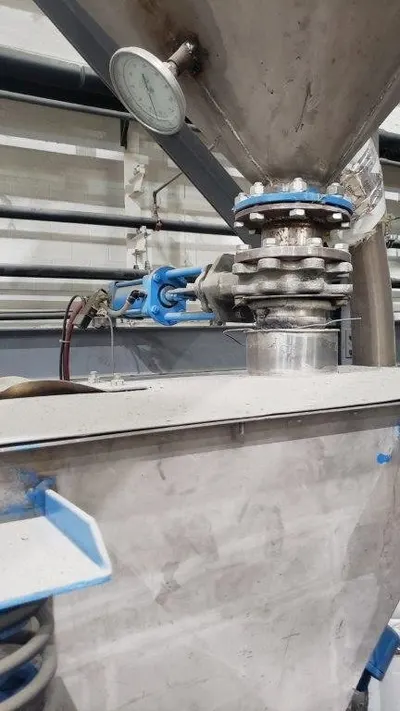

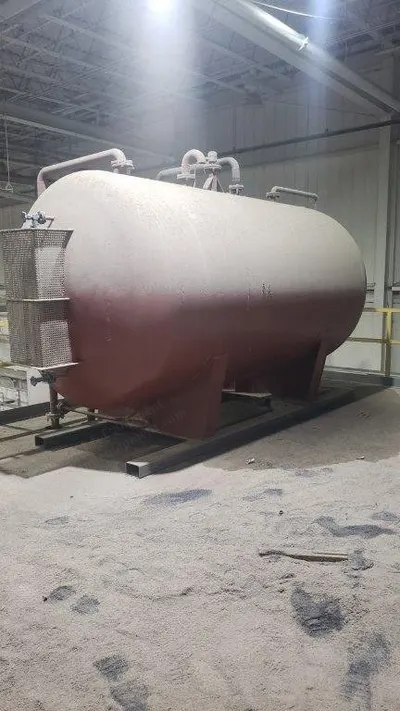

Description Overview New in 2014 Capacity of 15 tons per batch This system is used to increase IV of PE chips, mainly applied to bottle production through SSP Main Specifications Capacity of chips conveying system: 1.5 t/h Capacity of crystallization device: 700 kg/h Capacity of 30 m³ tumble reactor: 15 t/b (about 5000 t/y) IV of original chips: according to your requirements IV of finished chips: according to your requirements Installed power: 250 kW Cooling water (provided by the buyer): Q=10 t/h, T=25 °C, P=0.3 MPa Conduction oil (provided by the buyer): Q=7 t, T=320 °C System Components 1.5 t/h PET chips conveying system 700 kg/h chips crystallization system Chips silo Vacuum system Heating system 15 t/b tumble reactor Electric control system Chips Conveying System (1.5 t/h) Rotary valve Conveying air supply unit Wet chip overhead silo Bin level meter Transfer piping Electrical control system of conveyor PET Crystallizing System (700 kg/h) Gate valve Sight glass Metal expander Rotary valve Crystallization device Manometer Bimetallic thermometer Cyclone separator Butterfly valve Dust collecting barrel Metal expander Blower Butterfly valve Air vent valve Heater Platinum thermal resistance Metal expander Flutter valve Compensating port Metal expander Bimetallic thermometer Level controller Immediate silo Electrical control system of crystallizer Tumble Reactor (15 t/b) Tumble reactor Cyclone separator Separator Vacuum pump system Conduction oil heater Conduction oil cooler Conduction oil circulating pump Oil-gas separator Conduction oil conservator Conduction oil lower tank Oil control valve, flange, metal gasket Thermometer, manometer Electrical control system Pipeline Cooling water Conduction oil
