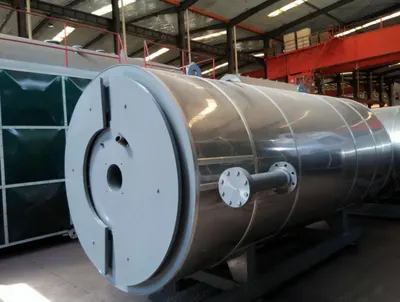

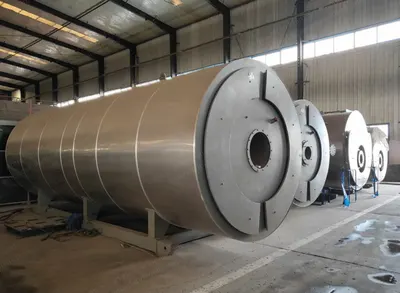

NovaStar, BT109, 2400kW, 1.0 MPa, 320°C, Natural Gas Fuel Thermal Oil Boiler (New)

NovaStar, BT109, 2400kW, 1.0 MPa, 320°C, Natural Gas Fuel Thermal Oil Boiler

Description

  1. Overview
    1. Natural gas fuel thermal oil boiler
    2. 2,000,000 kilocalories per hour
    3. Thermal power rating: 2400 kW
    4. Design highest pressure: 1.0 MPa
    5. Highest medium temperature: 320 °C maximum
    6. Boiler medium capacity: 1.9 m³
    7. Designing efficiency: 93%
    8. Calculating fuel: diesel oil 209 kg per hour, natural gas 244 Nm³ per hour
    9. Medium circulating volume: 160 m³ per hour
    10. Piping connecting diameter: 150 mm
    11. Heating surface area: 115.98 m²
    12. Dimension (mm): 5800 x 2280 x 2600
    13. Installation weight: 12.46 tons
  2. Features

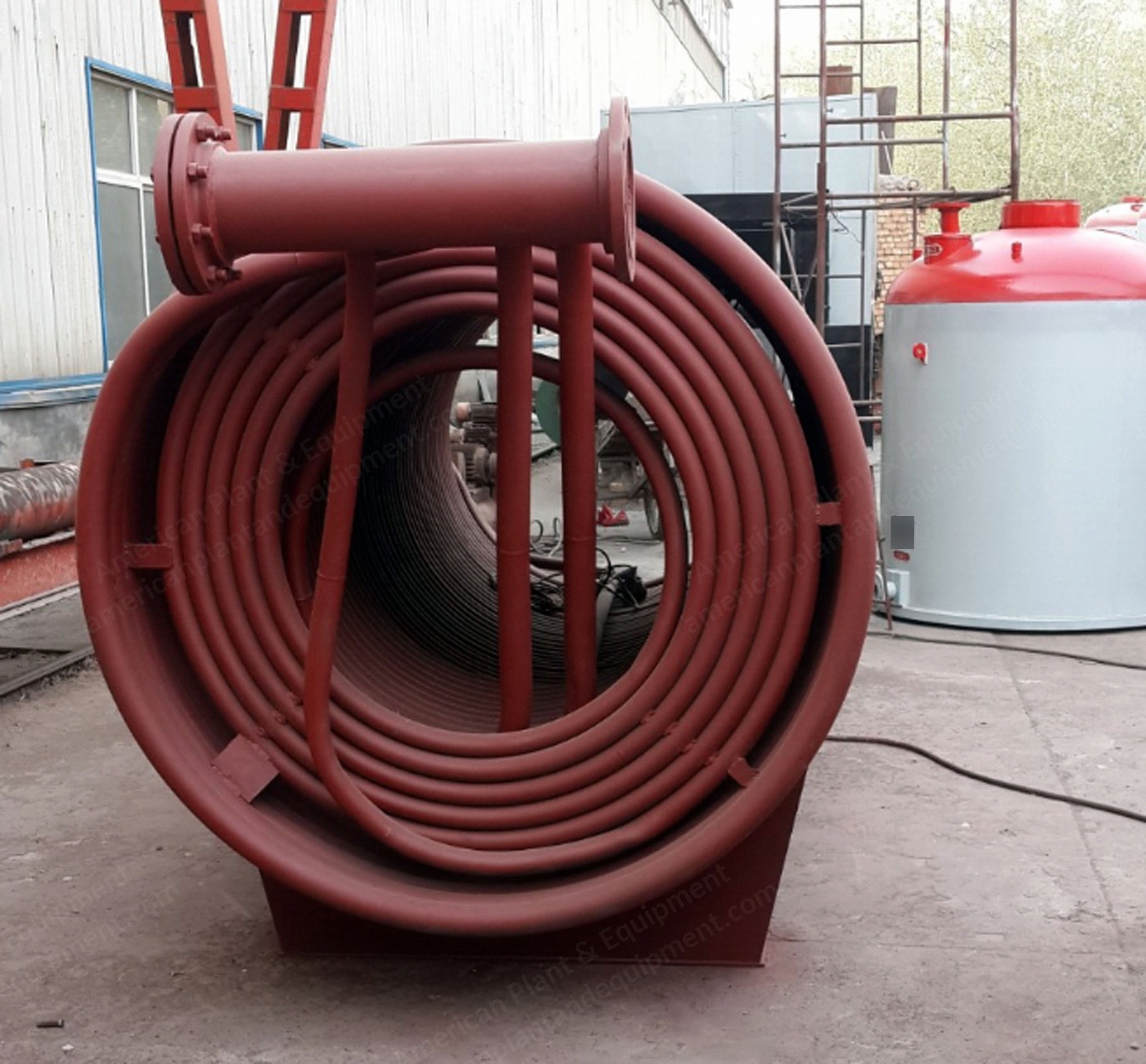

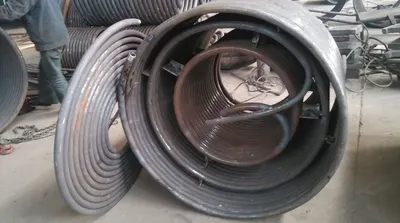

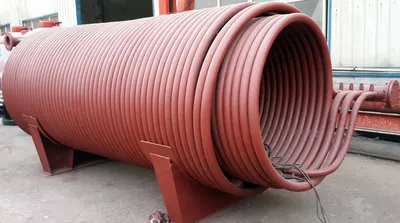

    1. Heating surface is made up of closely arranged coils
    2. Boiler can take diesel, gas, town gas and oil as fuel
    3. Uses automatic computer control to achieve DCS control and remote control
    4. Burner and thermal load can be adjusted automatically
    5. Can be widely used in textile, chemical, wood, oil, rubber, plastics, food, paper, pharmaceutical, reduction, concentration, dehydration, forest product industry, etc.
  3. Included Components
    1. Burner (natural gas): Italian brand Riello
    2. Chimney: Φ 500 mm x 9 meters
    3. Oil circulating pump: WRY125-80-200 37 kW-2 (2 units)
    4. Oil filling pump: KCB-55 1.5 kW
    5. Filter: DN150 (2 units)
    6. Oil and gas separator: DN150
    7. Expansion tank: 1.5 m³, working pressure 0.08 MPa
    8. Drain tank: 4 m³, working pressure 0.08 MPa
    9. Electrical cabinet: fully automatic control
    10. Plate level gauge: X49H-600 L=600 DN25 for oil storage tank
    11. Plate level gauge: X49H-440 L=600 DN25 for expansion tank
    12. Float ball level gauge: UQK-02 (2 units)
    13. Platinum resistance thermometer: WZP230 PT100 M27 x 2 (3 units)
    14. Needle valve: DN15 (2 units)
    15. Bimetallic thermometer: WSS-411 0-400 T (2 units)
    16. Gauge tube bending: DN15 G1/2-M20 (2 units)
    17. Pressure gauge: YX-150 0-1.6 MPa M20 x 1.5 (2 units)
    18. Installation materials: valves, meters, steel plates, etc. (1 set)
