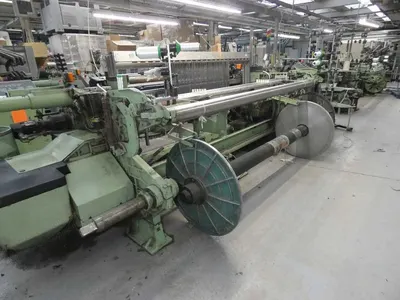

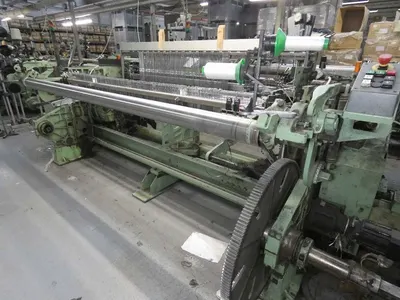

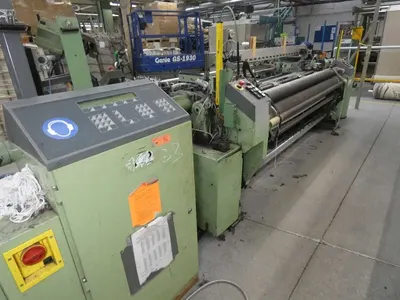

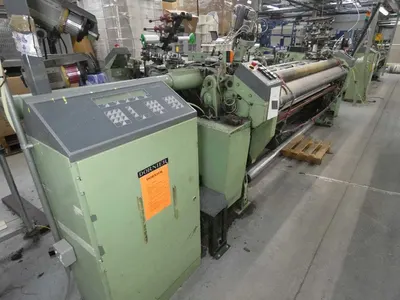

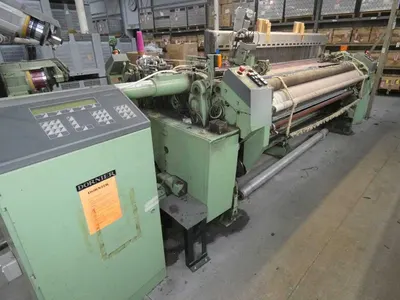

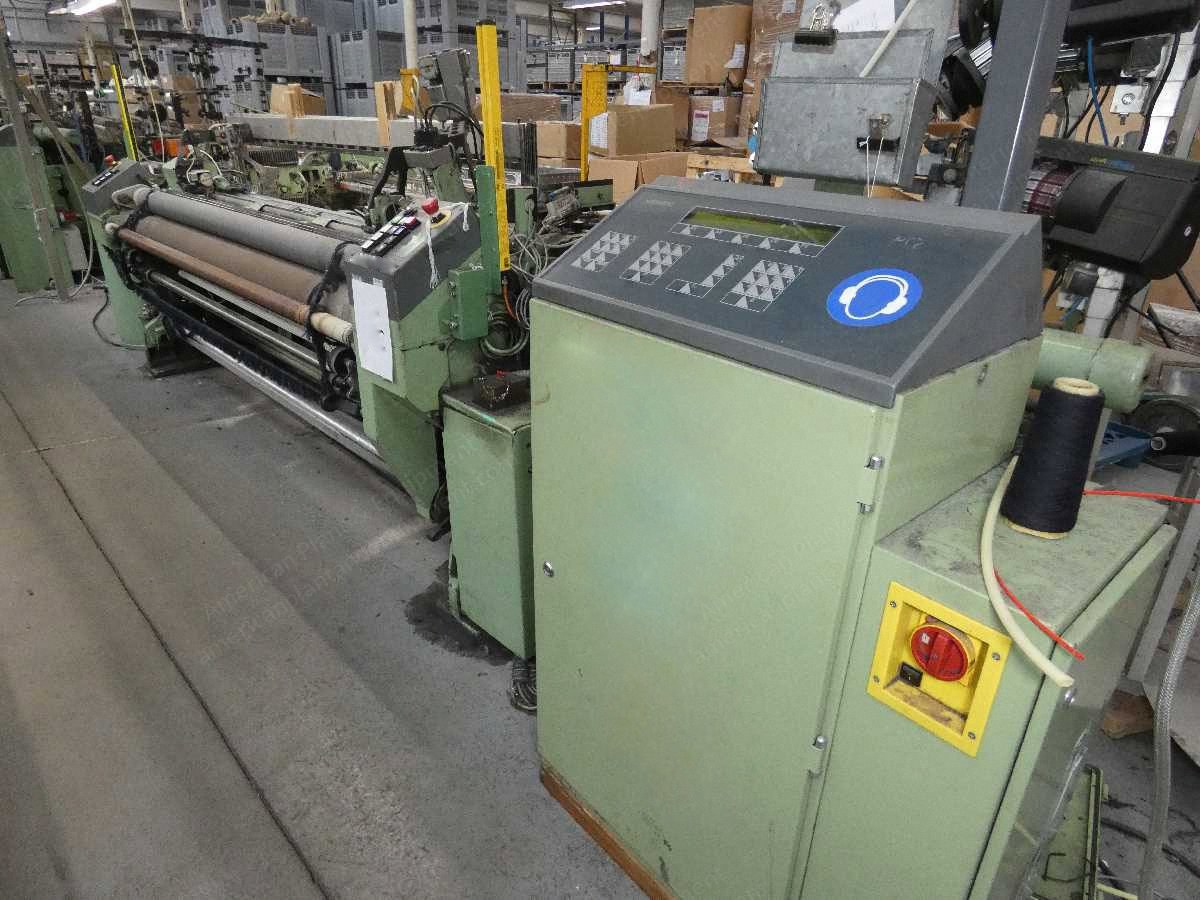

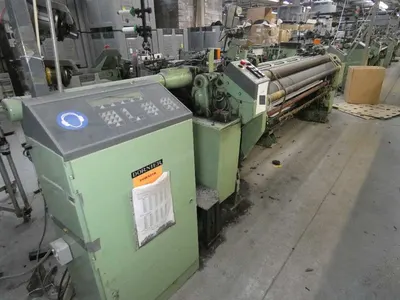

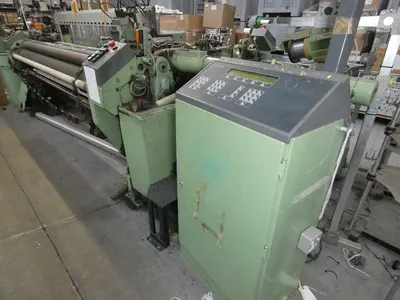

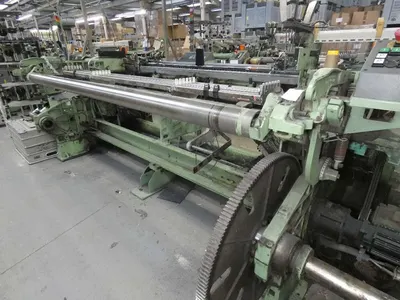

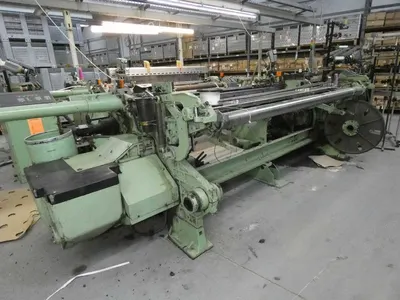

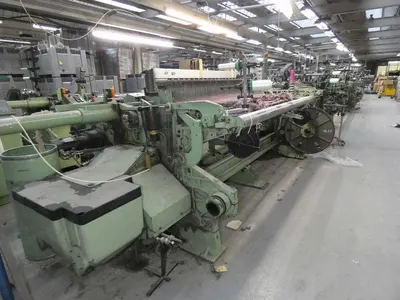

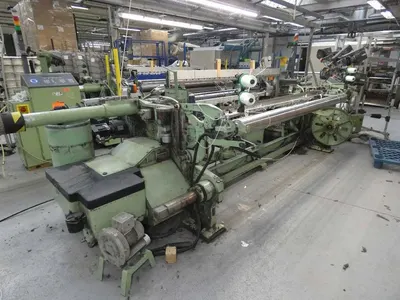

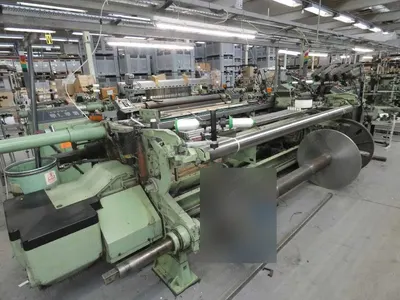

Dornier, HTV8S, 1996, Rapier Loom, 2200mm Working Width, 8 Colors, Staubli 2667 Dobby

Dornier, HTV8S, 1996, Rapier Loom, 2200mm Working Width, 8 Colors, Staubli 2667 Dobby

Description

  1. Overview
    1. Make and type: Dornier
    2. Type: HTVS/8
    3. Year: 1996 to 1997
    4. Working width: 2200 mm
    5. Weft insertion: positive rigid rapier
    6. Loom speed: 550 (max) - normally run at 400

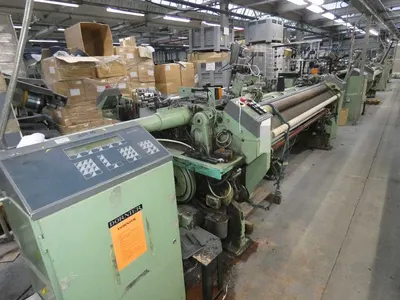

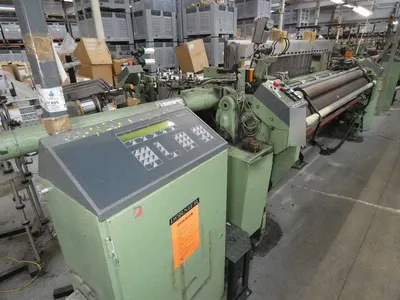

    7. Controller: Dialog panel 1
    8. Weft colors (max): 8
    9. Accumulators: 4 min (as on loom)
    10. Selectors: 4 ECS (min)
    11. Weft detector: Eltex with 8 positions
    12. Cone stand: 2
    13. Selvedge type: leno / cut
    14. Selvedge waste bin: 1
  2. Dobby And Shedding
    1. Dobby model and type: Staubli 2667 (max 20)
    2. Installed under motions: 16
    3. Frames supplied: 4 Grob heald frames (408 mm J type)
    4. Dropper bars: 4 (Grob 6 row stop motion fitted)
  3. Take-Up And Let-Off
    1. Loom take-up: electrical
    2. Loom let-off: electrical
  4. Beams And Rollers

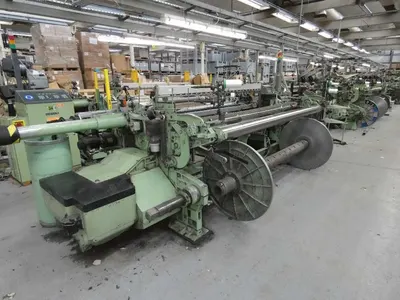

    1. Warp beams: 1 (800 mm flange)
    2. Cloth rollers: 1
  5. Accessories And Spares
    1. Heddles: none
    2. Droppers: none
    3. Spares: none
    4. Selvedge bobbins will remain in factory
    5. Manuals: all associated manuals available in the factory
  6. Electrical Specifications
    1. Power: 6.2 kW
    2. Electrical supply: 3 phase 380-440 V, 50 Hz
  7. Production And Condition
    1. Currently being used in the production of: woven apparel and furnishing cotton and linen fabrics
    2. Status: still operating and can be seen running
    3. Condition: complete and in good working condition
