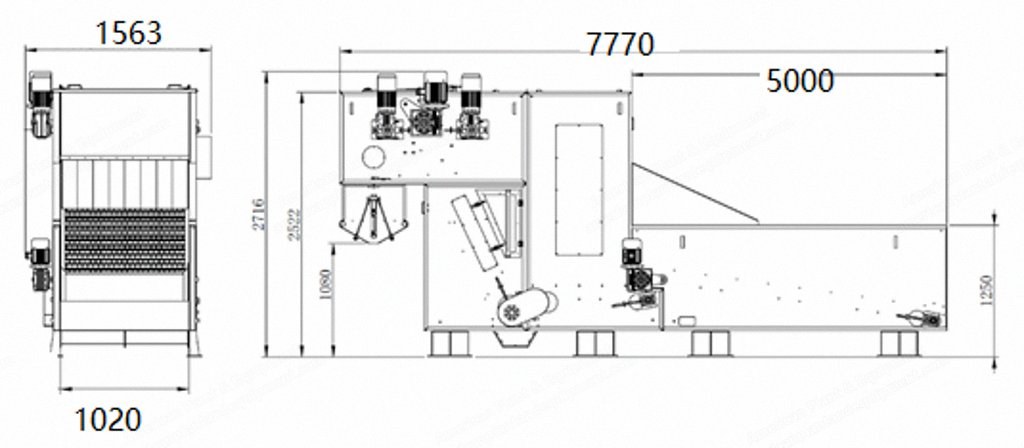

NovaStar, FP238, Bale Opener and Transfer Lattice, 1000mm Working Width, 100kg/h Capacity (New)

NovaStar, FP238, Bale Opener and Transfer Lattice, 1000mm Working Width, 100kg/h Capacity

Description

  1. Overview
    1. Item 001: Bale opener
    2. Item 002: Transfer lattice for bale opener
    3. Does not include the prices for needles, brushes, air pipes, electric cables (primary and secondary wirings)
  2. Technical Specifications
    1. Conveyor length of input belt: 5000 mm
    2. Working width: 1000 mm
    3. Machine width: 1763 mm
    4. Weight control: PLC
    5. Precision (%): <3
    6. Capacity (kg/h): ≤100
    7. Machine weight (kg): 2900
    8. Installed power (kW): 5.15
  3. Structure
    1. Conveyor: Feeding lattice - PVC lattice (5000 mm length); oblique lattice - aluminum spiked lattice with nails
    2. Motor: Brand Siemens-Beide; 0.75 kW x 1 for oblique lattice; 0.75 kW x 1 for transfer lattice; 1.1 kW x 2 for stripper roller and uniform roller; voltage and customized as per the requirement of customer
    3. Safety: Environment - closed body (no fiber flow in the air); operational safety - depend on customers' requirements
    4. Material: The frame is made of Q235-A steel plate by CNC laser cutting, CNC bending and modular assembly; the main body of the spiked lattice is aluminum lattice, which is embedded with stainless steel nails; the probability of dropping nails is small and the service life is long
    5. Photoelectric automatic control of fiber feeding, frequency control of spiked lattice, control of fiber feeding quantity
    6. The weighing bucket adopts sensitive gravity sensor with weighing function, according to the program control, the fibers are spread on the opening conveyor curtain
    7. Separate high-precision weighing bucket is not affected by airflow
    8. Loosen all kinds of baled fiber without manual shaking and reduce labor intensity
  4. Maintenance
    1. Periodic maintenance - regular cleaning (air spray on the lattice and the rollers)
    2. Lubrication and greasing on the bearings
  5. Working Principle
    1. The machine is one of the parts of the opening and blending system for the complete nonwoven process. A variety of raw materials are placed on the upper curtain of the bale opener, need manual feeding. And the raw material is sent to the lower row of the upper hand by the epithelial curtain. The raw materials are mixed and opened by the stripper roller and uniform roller, and then discharge onto conveyor evenly.
    2. The special pattern in the spike lattice and the aluminum nails are the unique attribute the machine bears. The proportion of the weightage allotment is controlled by the PLC and confirming the weighting control with utmost accuracy.
