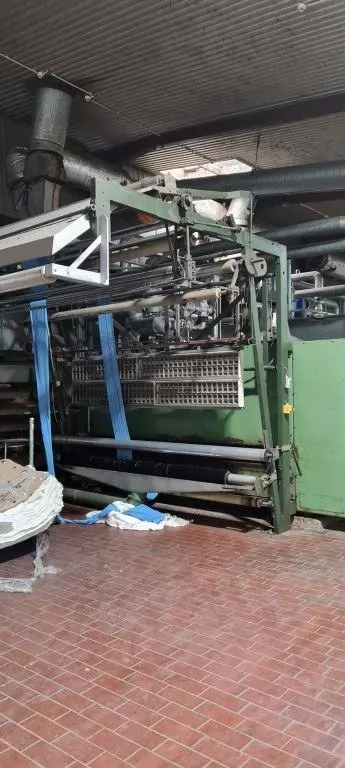

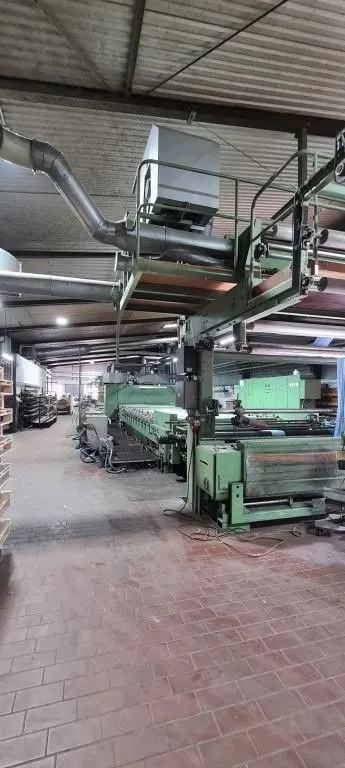

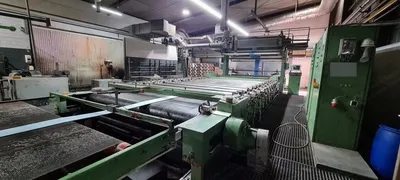

Zimmer, RSD 352, 1986, 3000mm Working Width, 10-Screens, Rotary Printing Machine

Zimmer, RSD 352, 1986, 3000mm Working Width, 10-Screens, Rotary Printing Machine

Description

  1. Overview
    1. Textile screen printing machine

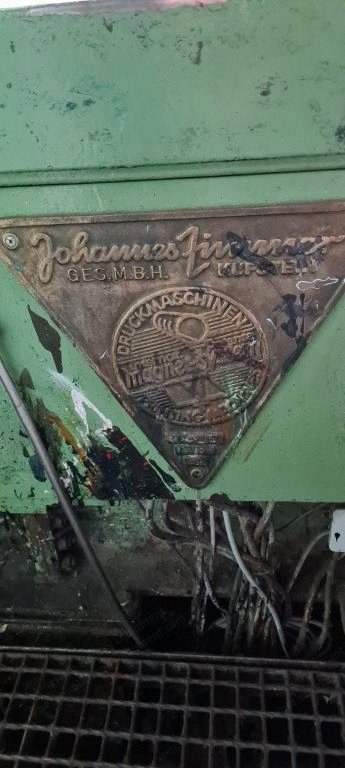

    2. Brand: Zimmer RSD 352
    3. Year: 1986
    4. Working width: 3000 mm

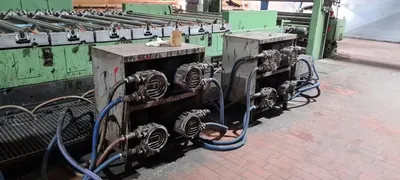

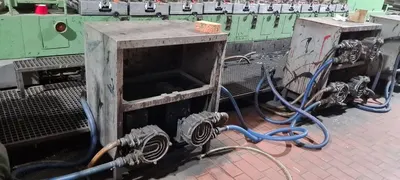

    5. 10-screens rotary printing machine with peristaltic pumps

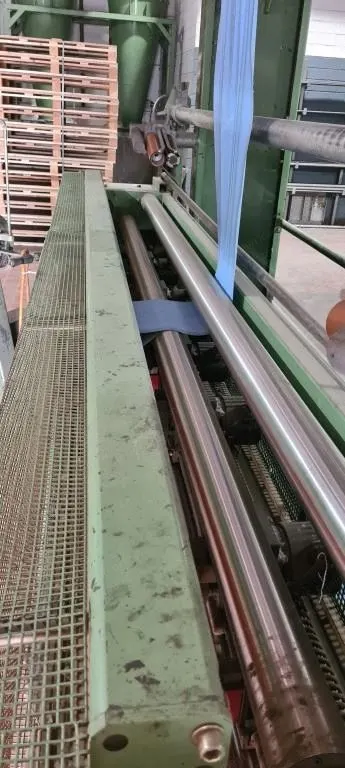

  2. Infeed Section
    1. Infeed frame max. web width: 3000 mm
    2. Integrated fabric cleaning system (knocking / brushing)

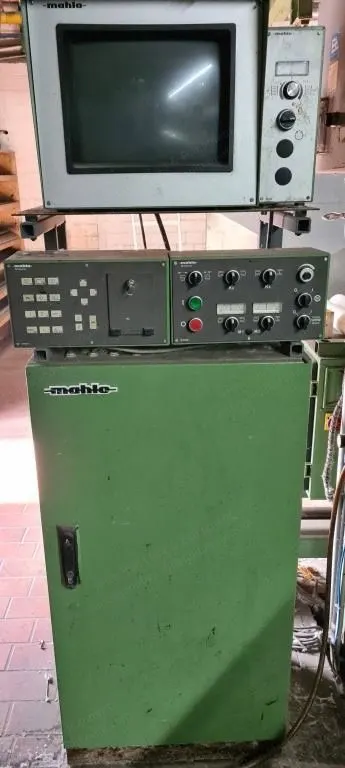

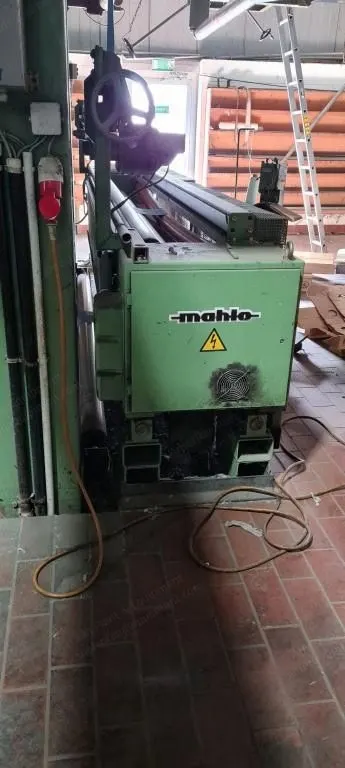

    3. Including weft straightener, type Mahlo FMC-10P, year 1998

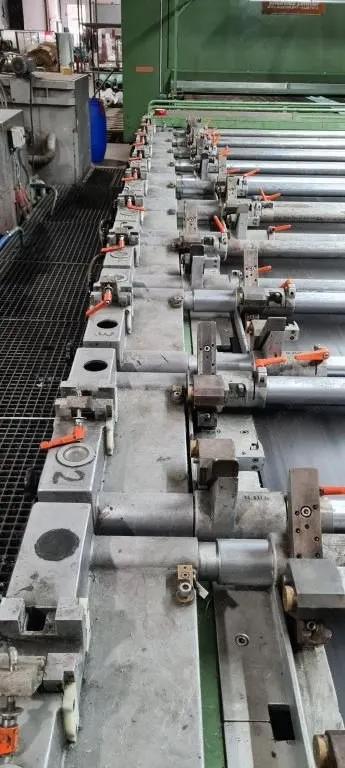

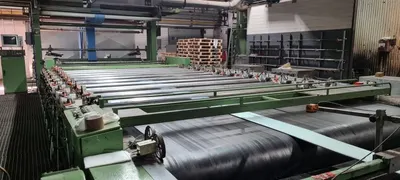

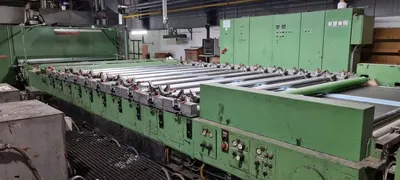

  3. Printing Units

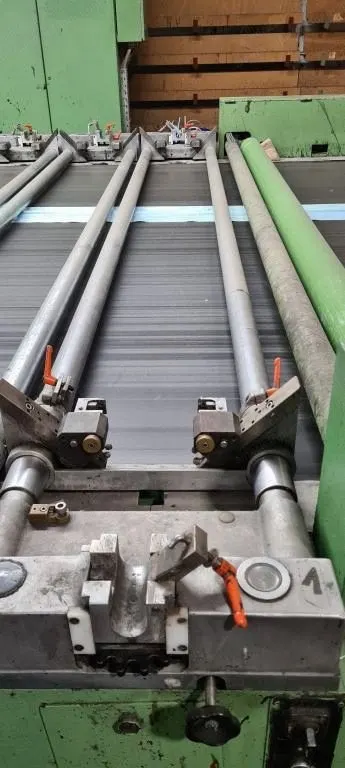

    1. 10 printing units, equipped with magnet rackel, stepwise adjustable, thermoplastic device
    2. Mechanical stencil drive, max. printing width 3000 mm
    3. Plus various ink tubes for printing widths: 1850 mm, 2450 mm, 2650 mm, 2850 mm, 3000 mm

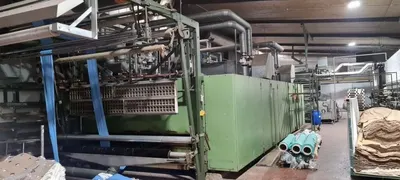

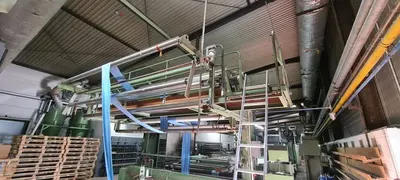

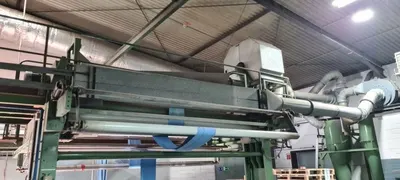

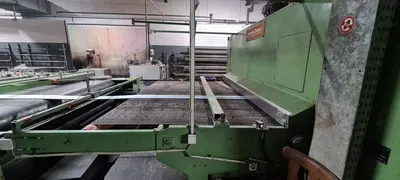

  4. Dryer

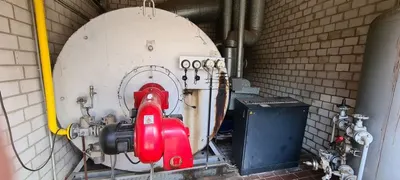

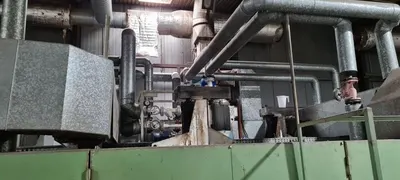

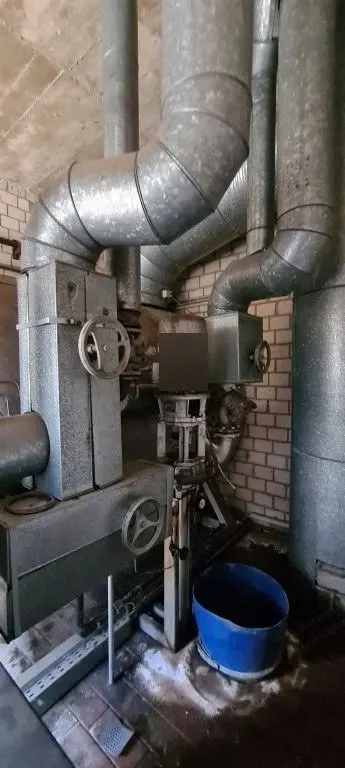

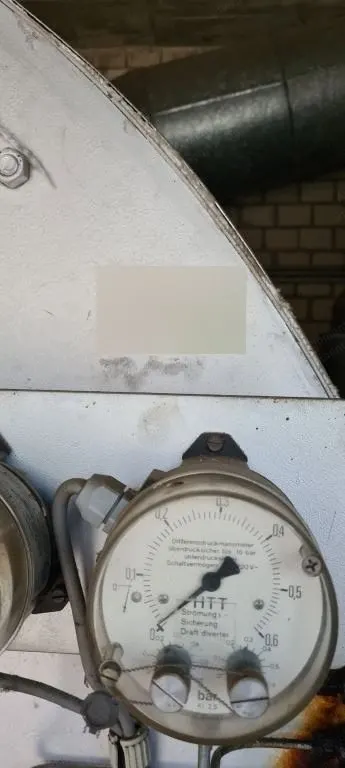

    1. Dryer: thermal oil heated, HTT type WTO 100 L, year 1989
    2. Make: Zimmer, type TR III, temperature class T3, 5 segments

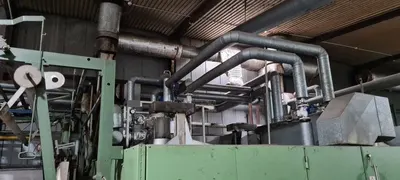

    3. Minimum exhaust air volume: 20,000 m³/h, 240 kg/h
    4. Heating type: thermal oil
    5. Throughput width: 3000 mm
    6. Conveyor type: center conveyor belt, fabric discharge table feeder, year 1986
  5. Condition
    1. Very good technical condition
