Sulzer, P7M R3 B 280 N2 SP 012, 1999, Working Width 2800mm, Staubli 2665 MR3 Dobby, 5.0 kW

Sulzer, P7M R3 B 280 N2 SP 012, 1999, Working Width 2800mm, Staubli 2665 MR3 Dobby, 5.0 kW

Description

  1. Overview

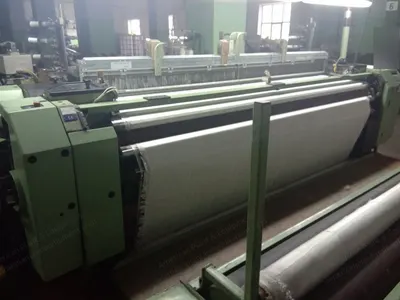

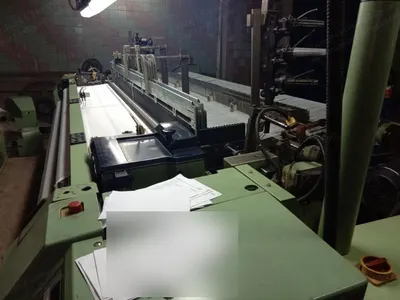

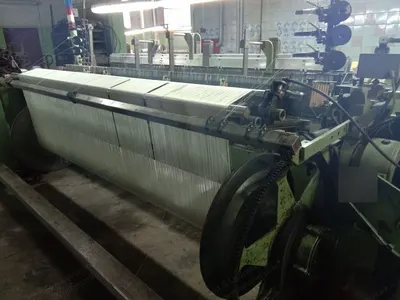

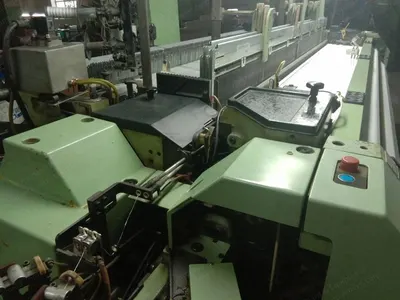

    1. Sulzer projectile weaving machine
    2. Model: P7M R3 B 280 N2 SP 012
    3. Year: 1999
    4. Working width: 2800 mm
    5. Machine structure in R3 design
  2. Specifications
    1. Main drive: 5.0 kW, 380 V, 50 Hz
    2. Reinforced sley, 4 degrees

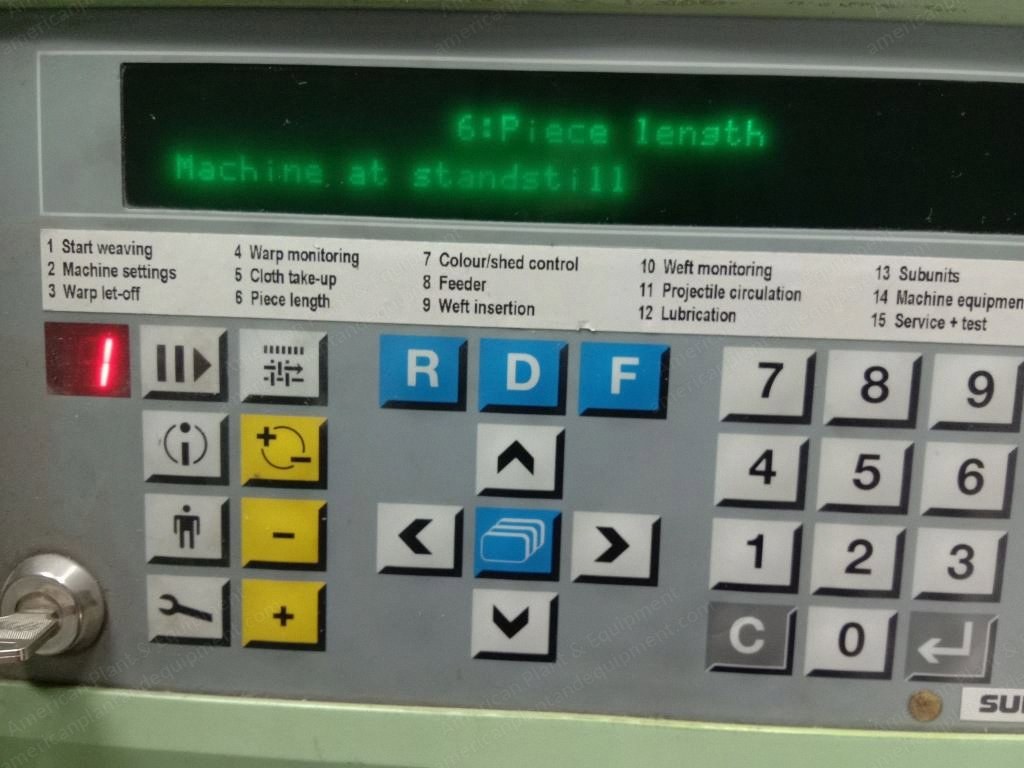

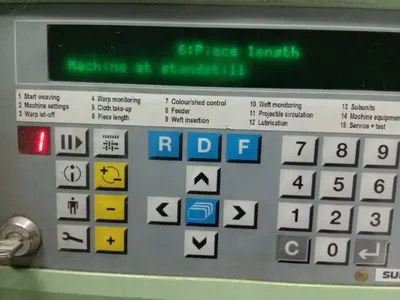

    3. Microprocessor controlled devices
    4. Connector for data monitor
    5. Frequency controlled main drive motor
    6. Blow off device at picking lock with external air supply, 6 pressure bar
    7. 1 electronic pick counter for 5 shifts integrated in the system
    8. 1 light barrier
    9. 1 reinforced main drive R3 design
    10. 2 electronically controlled warp let-offs for half warp-beams for disc diameter up to 940 mm, tube diameter 216 mm, incl. sensors and electrical connections
    11. 1 warp tensioner reinforced, supplementary warp deflection, R3 design
    12. 1 warp stop motion
    13. 6 contact bars for warp stop motion
    14. 1 reinforced dobby Stäubli 2665 MR3 with 10 jacks
    15. 10 reinforced shaft drives for distance between end eyes of heald of 331 mm
    16. 1 floating take-up roller Ø 140 mm, R3 design
    17. 1 set of guide teeth in block form, divided half/half
    18. 1 set projectiles D12
    19. 1 set of half cross leno Klocker at picking and receiving side, with cutting device incl. take-up device for cut selvedges
    20. 1 half cross leno Klocker in the center, with cutting device, for 2 width weaving
    21. 2 separate thread bobbins for auxiliary selvedge
    22. 2 electronically controlled weft yarn brakes, system Sulzer
    23. 2 electronic weft detectors, type Löpfe L1
    24. 1 temple pair with temple cylinders, short, with pressure from above, complete
    25. 1 spreader bar
    26. 1 slow motion gear with automatic pick finding and shaft levelling device
    27. 1 lubrication device GS
    28. 1 step board, warp beam side
    29. 2 full warp beams, disc Ø 800 mm, tube Ø 216 mm
    30. 1 bobbin stand with bobbin holders
    31. 2 weft feeders Iro Galaxy

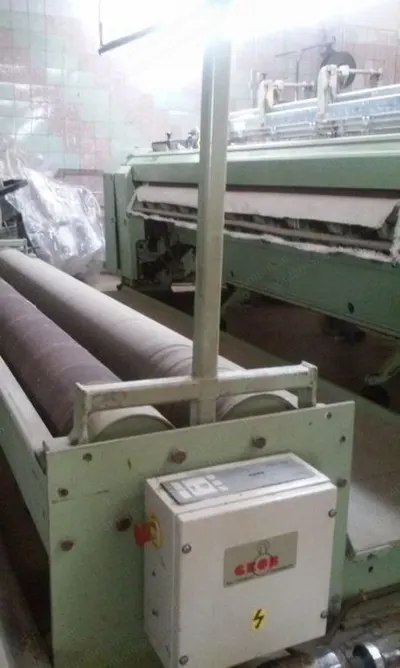

    32. 1 batching motion type Grob, with traverse motion
    33. 2 winding cores
  3. Condition
    1. The loom was specially reinforced in year 2016 for heavy fabrics
  4. Included
    1. 1 set of half cross leno Klocker at picking and receiving side, with cutting device incl. take-up device for cut selvedges
    2. 1 half cross leno Klocker in the center, with cutting device, for 2 width weaving
    3. 2 separate thread bobbins for auxiliary selvedge
    4. 2 electronically controlled weft yarn brakes, system Sulzer
    5. 2 electronic weft detectors, type Löpfe L1
    6. 1 temple pair with temple cylinders, short, with pressure from above, complete
    7. 1 spreader bar
    8. 1 slow motion gear with automatic pick finding and shaft levelling device
    9. 1 lubrication device GS
    10. 1 step board, warp beam side
    11. 2 full warp beams, disc Ø 800 mm, tube Ø 216 mm
    12. 1 bobbin stand with bobbin holders
    13. 2 weft feeders Iro Galaxy
    14. 1 batching motion type Grob, with traverse motion
    15. 2 winding cores
