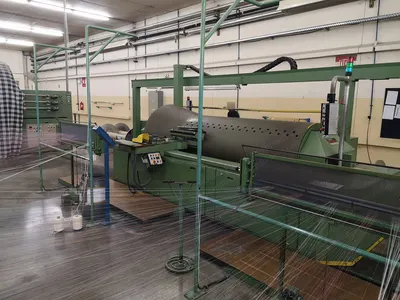

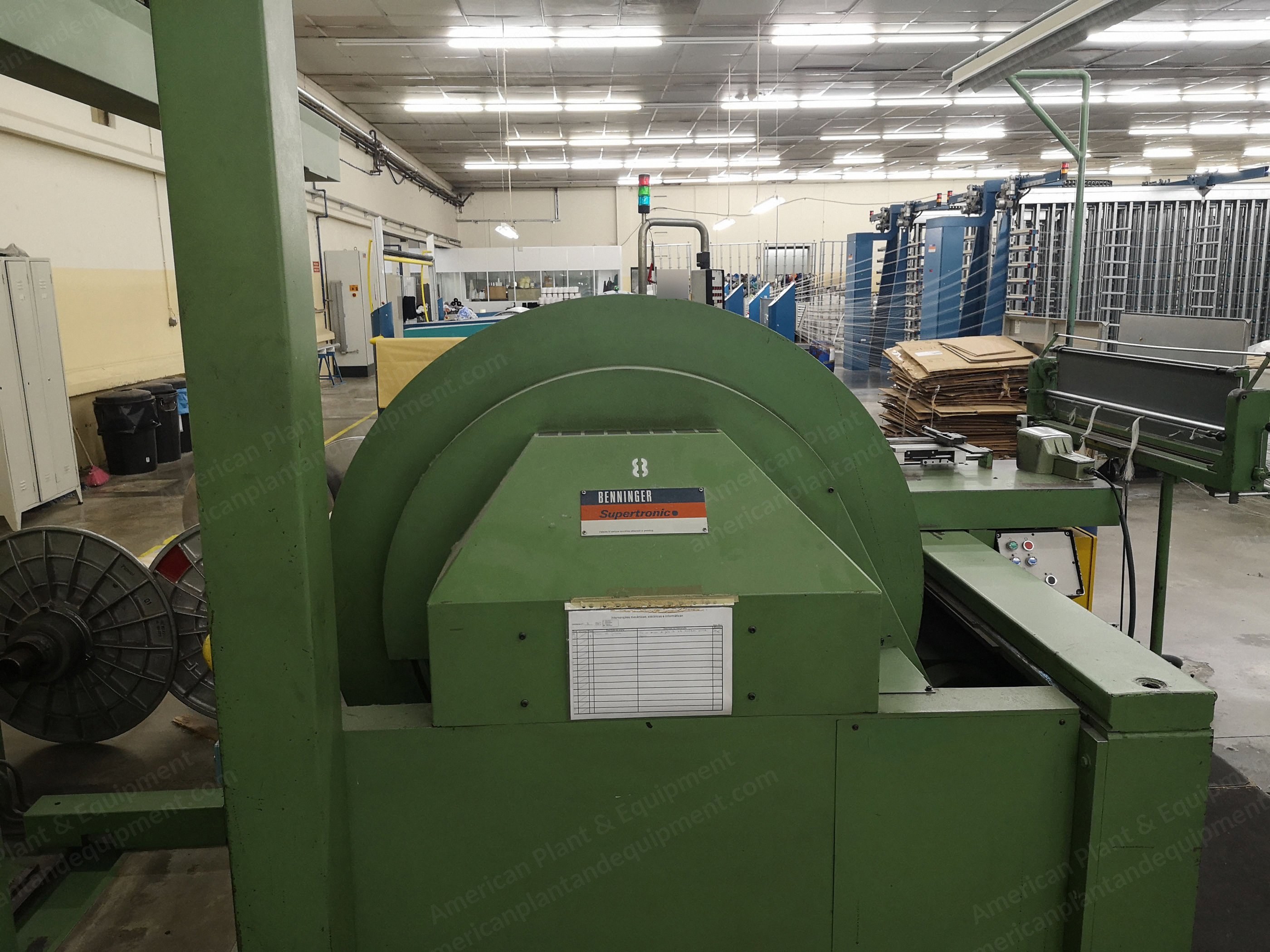

Benninger, Supertronic, 1988, Sectional Warping Machine, 2100mm Working Width, 1000mm Warp Disk Diameter

Overview

1. Supertronic sectional warping machine

2. Year: 1988

3. Working width: 2100 mm

4. Warp disk diameter: 1000 mm

5. Warp speed: 600 m/min

6. Winding speed: 220 m/min

7. Working yarns: > 30 Ne and < 50 Ne

Specifications

1. Flange diameter: 3140 mm

2. End to end dimensions of the beam, including shafts: 3000 mm

3. Width of flat part of warper: 2200 mm

4. Width of sectional (conical) part of warper: 920 mm

5. Width of warp beam: 2000 mm

6. Flange diameter of warp beam: 800 mm

Included

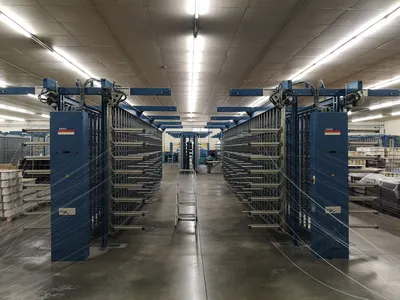

1. 2 creels

2. Metal drum

3. Must be sold with creel
