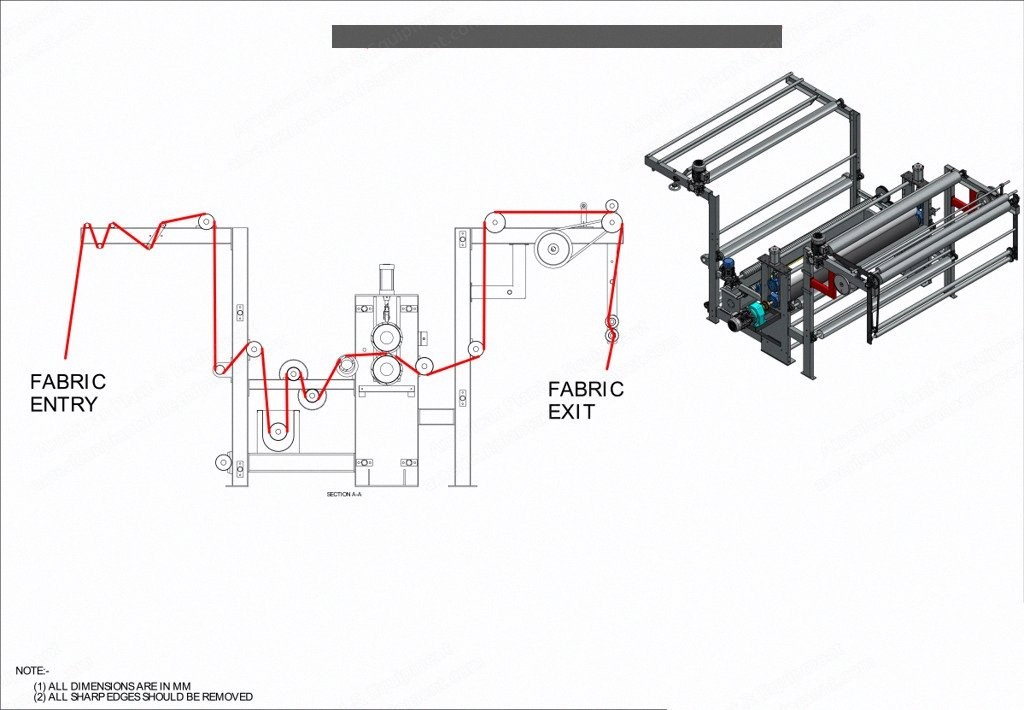

Description Overview Foulard open-width squeezing padder Fabric width: 4000 mm Roller width: 4200 mm Entry Section High entry, fabricated high entry Swivel tensioning device with expander roller guide roller Pneumatic cloth guider Fabric accumulating J scray Impregnation Trough Jacketed impregnating tank manufactured from 3 mm thick stainless steel 316 material having 200 mm diameter guide roller Fill and drain valves, auto manual, 3ach 1 inch Heating arrangement optional Chemical addition 200 liter tank Level indicator controller in impregnation tank Pneumatic Squeeze Padder (Nip) Roller width: 4200 mm Side support wall made out of stainless steel 304 5 mm thick material with tie bar Squeezer rubber roller drive roller moves on self-align heavy-duty bearing Top rubber roll made from solid shaft duly coated with synthetic rubber, shore hardness 90 to 95, roller diameter 4250 mm Bottom driven roller made solid shaft duly coated with synthetic rubber, shore hardness 80 to 85 Suitable pneumatic cylinders designed to extend pressure up to 12 to 15 ton are mounted on either side of squeezer For pressure regulating of squeezer, complete pneumatic control panel with air pressure regulator, solenoid valve and pressure gauge Curve bar expander or scroll roller as an accessory Coating by HMSU a unit of Bianco Exit Section Plaiter Big batching Fabrics accumulating scray optional Drive 10 hp AC variable drive Included Components E+L cloth guiders Guide rolls diameter 200 mm Service line for steam, air, water Speed indicator PLC touch screen Electrical control panel with air cooling arrangement Electrical cables from panel to machine up to 15 meter distance Spare 475 mm diameter rubber rolls Spare 450 mm diameter drive roll Export packing, clearing and forwarding Pipe line 1 inch diameter 2 mm thick pipe up to 20 meters Technical Specifications Installed power: 15 hp Heating direct and also jacketed impregnation tank Cooling through jacketed trough Maximum temperature in Celsius: 80 to 90 degree in impregnation tank in heated compartment Air pressure required: 5 kg/cm² - 74 psi - 5.0 bar Steam pressure: 2.5 kg/cm² - 37 psi - 2.5 bars Machine mechanical speed: 60 meters/min maximum Total height: 3 meters Total width: 6000 mm Total length: 5100 mm Specification of Rolls 4200 mm diameter rubber squeezer ebonite or rubber drive roller All guide rolls are of diameter 200 mm stainless steel roll with stainless steel end All ebonite scroll rolls are of diameter 200 mm with stainless steel end Pumps and Motors 2 hp/2800 rpm circulation pump attached to impregnation tank Pneumatic Accessories Pneumatic panel plus F R L unit Air regulator and pressure gauge for each nip Pneumatic cylinder for nip Air push/pull valve for nip rollers up/down Drive and Control System 15 hp AC drive for all nip (impregnation and recuperate) 1.5 hp for entry, 1.5 hp exit 2 hp x 3 pump Total electrical load 20 hp Utilities (Your Scope) Steam 3 kg/cm² Water 1 kg/cm² Air pressure 5 kg/cm² All manual valves Brand and Make of Components AC motors: ABB / Siemens Gear boxes: Bonfiglioli Switch gears: ABB AC inverters: ABB Pneumatic accessories Bearings: NTN / FAG Rubber coating Steam valves: Forbes Marshall Brands: ABB or Delta PLC and touch screen Champion / Klinger steam joints
