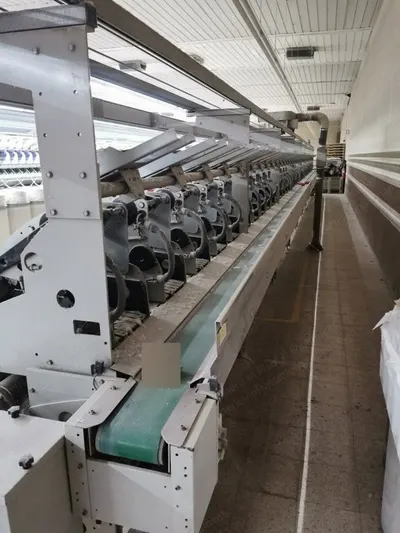

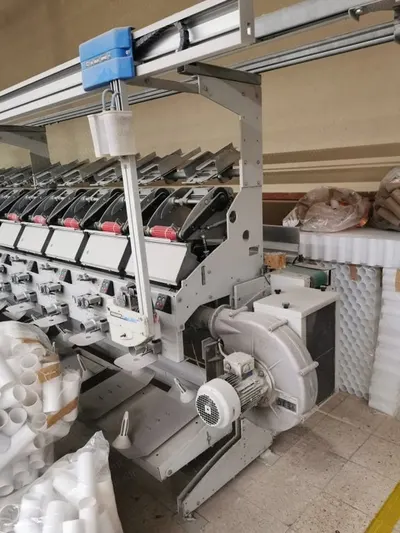

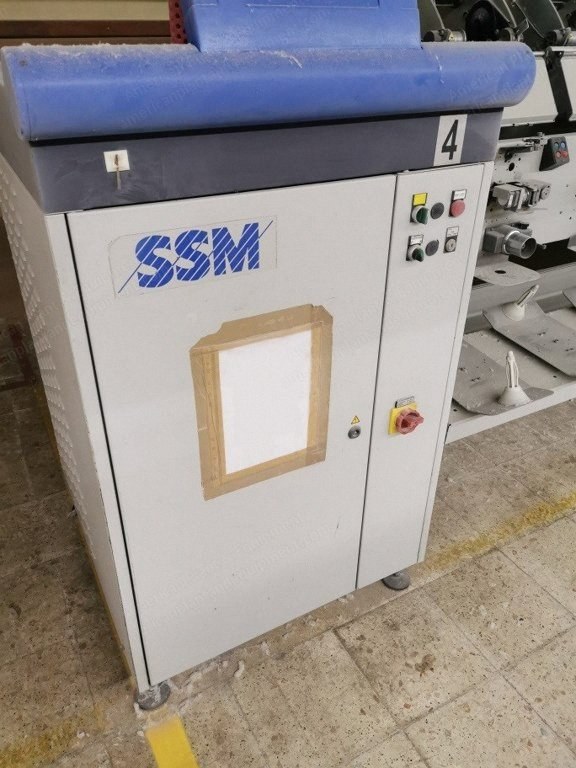

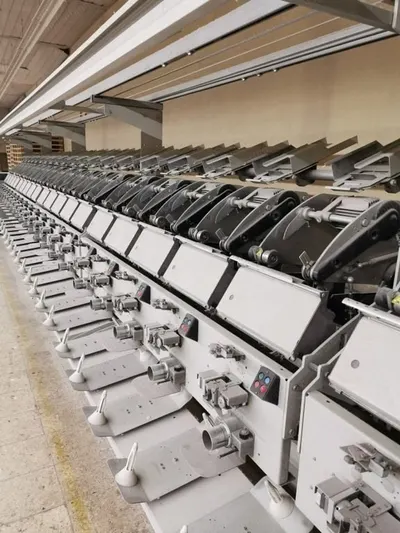

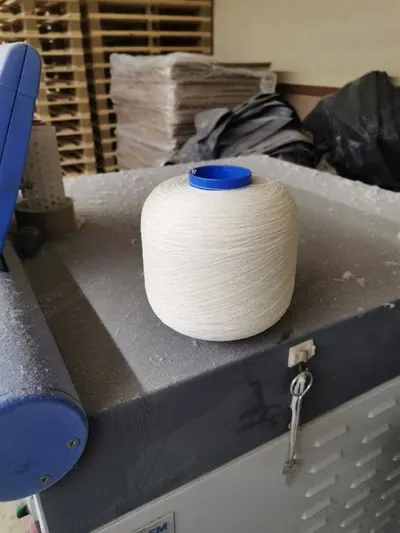

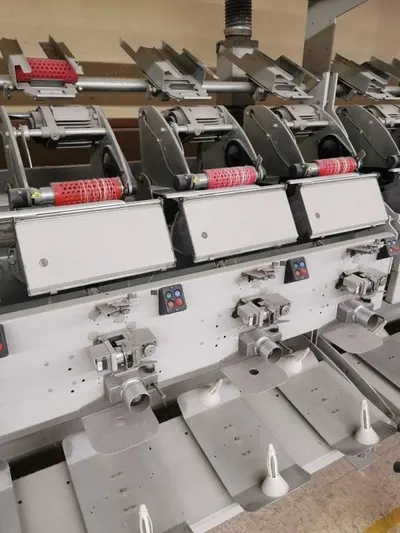

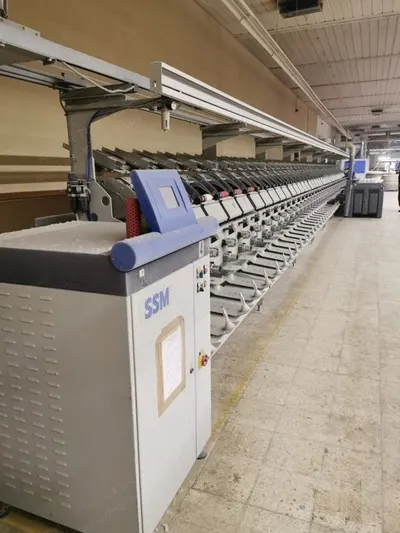

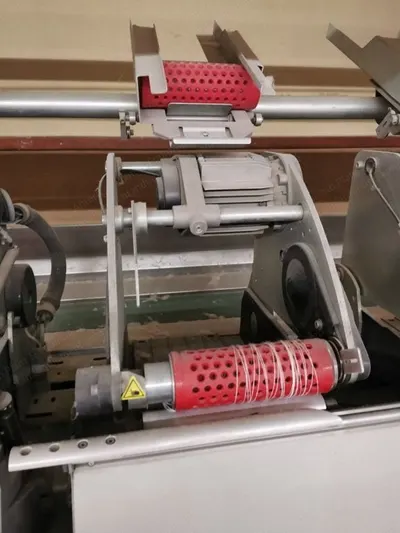

Description Overview Ssm winder machine Year 2004 40 positions Dp1-w model Suitable to work with hard cone and soft cone Machine has the capability to add air, oil is not possible Characteristics Arrangement of positions: unilateral (all positions on one side) Drive: individual drive Positions by section: 5 Number of sections/positions: minimum 1/5, maximum 12/60 Spindle gauge: 440 mm Workable Materials Yarns: spun yarns and continuous filament Linear mass density, max range: max. 3300 dtex Feeding diameter dp1-w: up to 320 mm Feeding diameter double fit: up to 280 mm Feeding diameter triple fit: up to 240 mm Total bobbin weight: max. 10 kg Potency/Output Characteristics Bobbin winding types: staggered precision winding digicone or precision winding Bobbin shape: symmetrical Workable tube shape (conicity according to the standards ISO 3914/1-7, ISO 8489/1-5): cylindrical or conical up to 4º20’ Diameter of empty tubes: interior 43 mm, exterior 47 mm Empty tubes length: 170 to 290 mm Winding length: 100 to 254 mm Bobbins diameter: 280 mm Stroke length: 100 to 250 mm Number of strokes (conditions: maximum stroke length, minimum crossing angle, empty tubes diameter 76 mm): max. 600 double strokes/minute Winding speed (depends on the selected parameters): max. 1300 meters per minute Condition and Included Machine manual included No spares included
