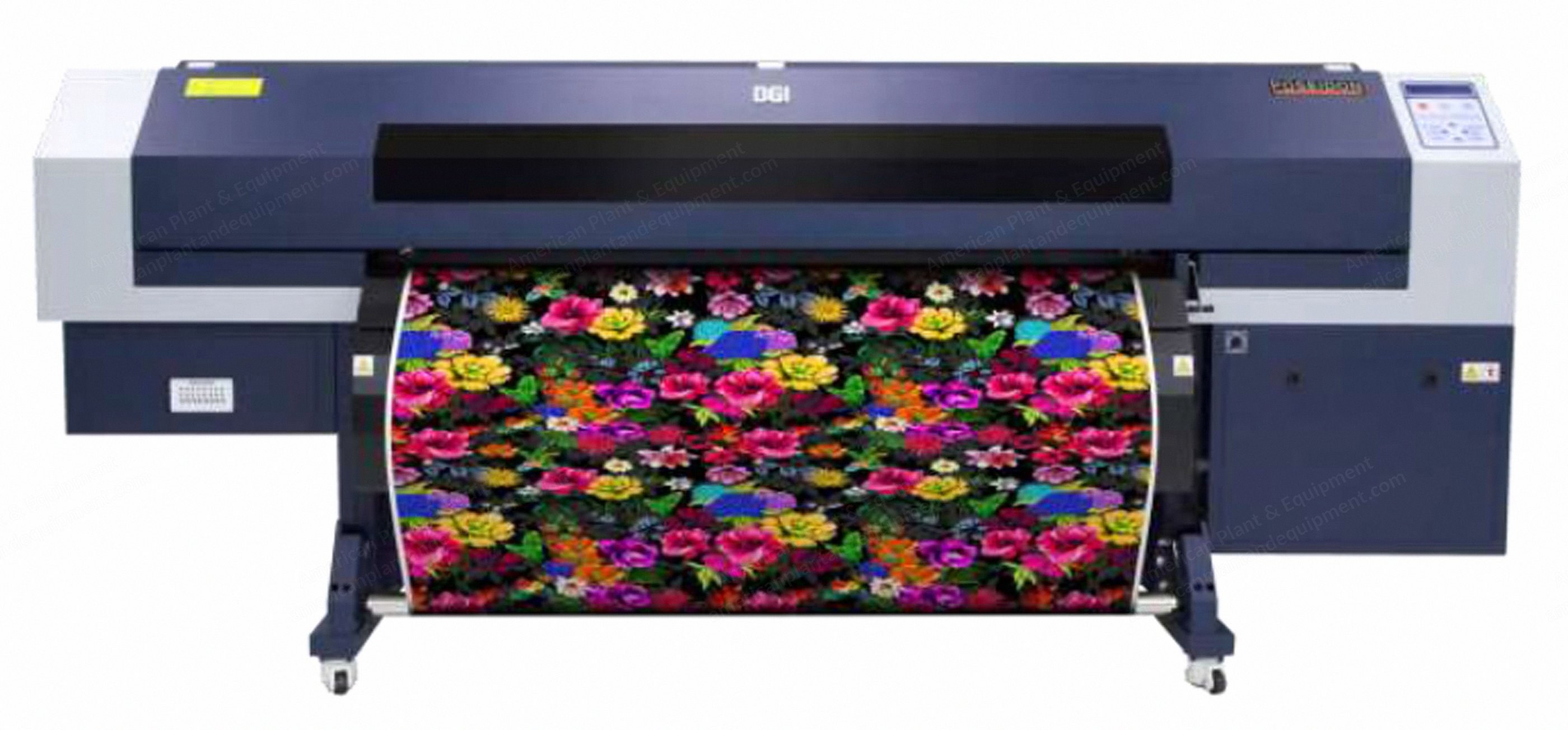

DGI, Poseidon, Dye Sublimation Transfer Printer, 1620mm Max Print Width, Kyocera Printheads

DGI, Poseidon, Dye Sublimation Transfer Printer, 1620mm Max Print Width, Kyocera Printheads

Description

  1. Overview
    1. Industrial printer with Kyocera head, mid-range market focus.
    2. Highest speed and competitive price in the mid-range market.
  2. Productivity
    1. 80 sqm/h at 600 x 600 dpi (I/L 1, DBF 1, 4 pass).
    2. 115 sqm/h at 600 x 600 dpi (normal, DBF 1, 2 pass).
    3. Auto capping function (sleep mode) for unattended operation.
    4. Checking current printing status by monitoring.
    5. Setting time of auto capping time (0-300 min).

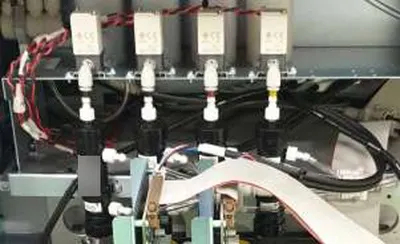

    6. Electronic valve off, suction fan off, front panel heater off.

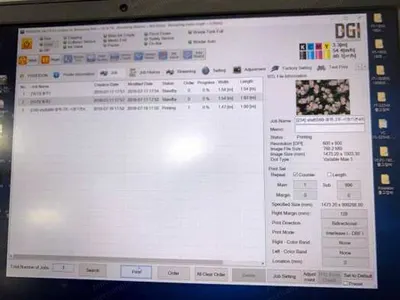

    7. Check printing status during unattended operation by monitoring app (monitoring app: Poseidon, HS FT III, FH-3204).
  3. Quality Control
    1. Change carriage speed without accessing factory setting mode.
    2. Easy to change carriage moving direction at UI.
    3. Print quality modes: normal, quality, high quality.
    4. Normal mode: carriage speed is fastest mode.
    5. High quality mode: good for sharpness and difficult image but decreases print speed about 25%.
  4. Print Speed Specifications
    1. Main scan 600, sub scan 300, normal mode: 210 sqm/h (DBF I 185, DBF II/III 130), 1 pass.
    2. Main scan 600, sub scan 600, normal mode: 130 sqm/h (DBF I 115, DBF II/III 75), 2 pass.
    3. Main scan 600, sub scan 900, normal mode: 95 sqm/h (DBF I 85, DBF II/III 50), 3 pass.
    4. Main scan 600, sub scan 1200, normal mode: 75 sqm/h (DBF I 65, DBF II/III 35), 4 pass.
    5. Main scan 600, sub scan 300, I/L I mode: 155 sqm/h (DBF I 145, DBF II/III 90), 2 pass.
    6. Main scan 600, sub scan 600, I/L I mode: 90 sqm/h (DBF I 80, DBF II/III 45), 4 pass.
    7. Main scan 600, sub scan 900, I/L I mode: 65 sqm/h (DBF I 55, DBF II/III 30), 6 pass.
    8. Main scan 600, sub scan 1200, I/L I mode: 45 sqm/h (DBF I 40, DBF II/III 25), 8 pass.
    9. Main scan 600, sub scan 300, I/L II mode: 150 sqm/h (DBF I 135, DBF II/III 85), 4 pass.
    10. Main scan 600, sub scan 600, I/L II mode: 88 sqm/h (DBF I 79, DBF II/III 45), 8 pass.
    11. Main scan 600, sub scan 900, I/L II mode: 60 sqm/h (DBF I 55, DBF II/III 30), 12 pass.
    12. Main scan 600, sub scan 1200, I/L II mode: 45 sqm/h (DBF I 40, DBF II/III 25), 16 pass.
  5. Comparison With Other Models
    1. Poseidon: speed 80-115 m²/h, resolution 600x600 dpi, 2p/4p pass.
    2. FT-1608: speed 55 m²/h, resolution 720x720 dpi, 4p pass.
    3. F9340: speed 35-45 m²/h, resolution 720x720 dpi, 3p/4p pass.
    4. TS300P: speed 38 m²/h, resolution 720x720 dpi, 4p pass.
  6. Productivity With Simple Head Arrangement
    1. Stagger to in-line (50% speed down).
    2. Add one more color (maintain speed).
  7. Resolution and Speed
    1. 600 x 300: 145 m²/h.
    2. 600 x 600: 80 m²/h.
    3. 600 x 900: 55 m²/h.
    4. 600 x 1200: 40 m²/h.
    5. Max print width: 1,620 mm.

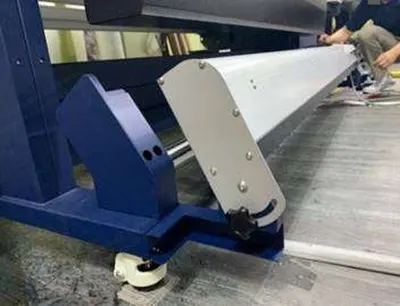

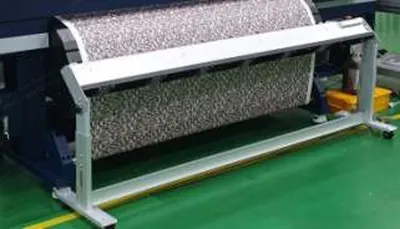

    6. Max winder diameter: 200 mm / 30 kg.
  8. Printhead
    1. Kyocera 300 dpi.
  9. Operating Environment
    1. Temperature: 20-28°C.
    2. Humidity: 40-70%.
  10. Power
    1. 200-240V.
    2. Printer: 5A, heater: 10A, dryer: 10A.
  11. Head Maintenance
    1. Cleaning: blade wiping system.
    2. Capping: wet capping system.
  12. Ink
    1. Sublimation ink.
    2. 1 bottle: 1 kg.
    3. Colors: cyan, magenta, yellow, black, light cyan, light magenta, orange, blue.
    4. Fluorescent yellow, fluorescent pink.
