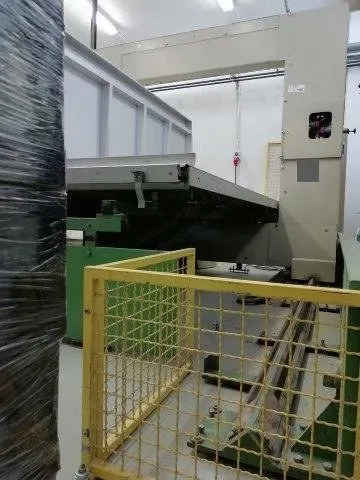

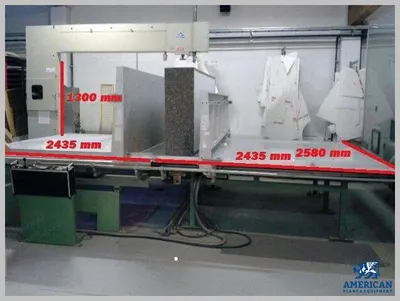

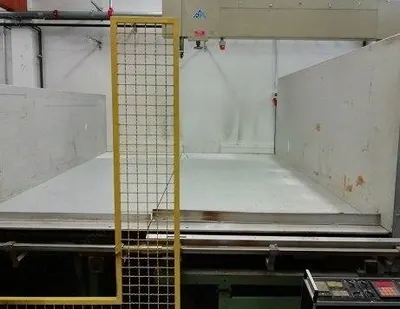

Albrecht Baumer, IS-M, Vertical Foam Cutting Machine, 1300mm Cutting Height, 2435x2580mm Table

Albrecht Baumer, IS-M, Vertical Foam Cutting Machine, 1300mm Cutting Height, 2435x2580mm Table Sold

Description

  1. Overview
    1. Is-m vertical cutting machine: very high cutting precision for highest cutting standards.
    2. Second tiltable left side stop for easy loading of the machine.
    3. Utilization of the left table half as turntable for precision rectangle cuts.
    4. Utilization of a frequency-controlled knife drive for the cutting of special foams.
    5. Air cushion systems for an effortless handling of large blocks.
    6. Material fixing by an optional holding down system.
    7. Minimal space requirement due to a stationary table and a movable cutting unit.
    8. Minimization of cutting times as it is possible to cut in both directions - employment of a knife twisted by 180°.
    9. Possibility of a customized and custom-designed design due to a number of differently configurable table dimensions of both table halves.
    10. Special design with set knife for the cutting of insulating material (e.g. mineral wool, pur rigid foam or polystyrene (eps)).
  2. Key Facts
    1. Application: mattresses, furniture, packaging and automotive industry, consumer goods/household goods industry, special applications such as ceramic filters (reticulated foams), vertical cutting.
    2. Material: block and sheet ware from pur soft foam, non-woven material, rubber foam, latex, epdm foam and basotect®, rock wool and glass wool as well as pur rigid foam, epp.
    3. Cutting tool: precision-ground circulating ground knife with widths of 6-20 mm, available either as toothed knife or as set knife.
  3. Technical Data
    1. Standard: motor-driven upper knife protection unit, motor-driven grinding unit, right side stop, working table with anodized aluminium surface, pneumatic knife tensioning support.
    2. Options: air cushion system, continuously adjustable knife speed, cooling unit, grinding dust extraction unit, holding down device, increase of side stop from 750mm to 1000mm, left side stop, left working table as turntable, optical knife grinding control, version with angle-toothed knife, version with set knife.
  4. Condition
    1. The machine is in good condition and ready to cut.
  5. Included Features
    1. Material: block and sheet ware from pur soft foam, nonwoven material, rubber foam, latex, epdm foam and basotect, rock wool and glass wool as well as pur rigid foam, epp.
    2. Cutting blade: precision-ground circulating ground knife with width of 6 to 20mm, available either as toothed knife or as set knife.
    3. Motor-driven upper knife protection unit.
    4. Motor-driven grinding unit.
    5. Right side stop.
    6. Working table with anodized aluminum surface.
    7. Pneumatic knife tensioning support.
    8. Special design with set knife for the cutting of insulating material such as epp and rock wool.
    9. Left working table as turntable: easy, efficient and precise cutting of rectangular parts without manual turning of the material, for example for the cutting of adhesive laminated goods.
    10. Air cushion system: air cushion generated by a fan, left and right working table can be equipped with an air cushion, recommended for multiple turning of the block during trimming, very easy moving of the block on the table.

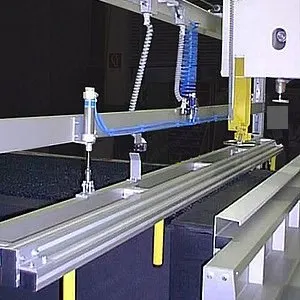

    11. Holding down device: holding down device in connection with turntable, achievement of minimal cutting tolerances.
    12. Optical knife grinding control: better control of the knife grinding at both bevels due to a microscope measuring magnifying glass with illumination, optimum cutting results and tolerances.
