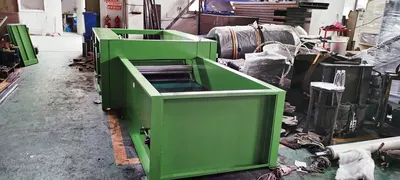

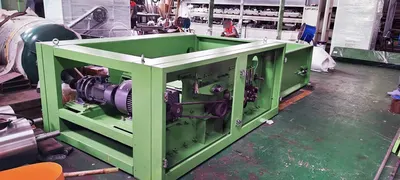

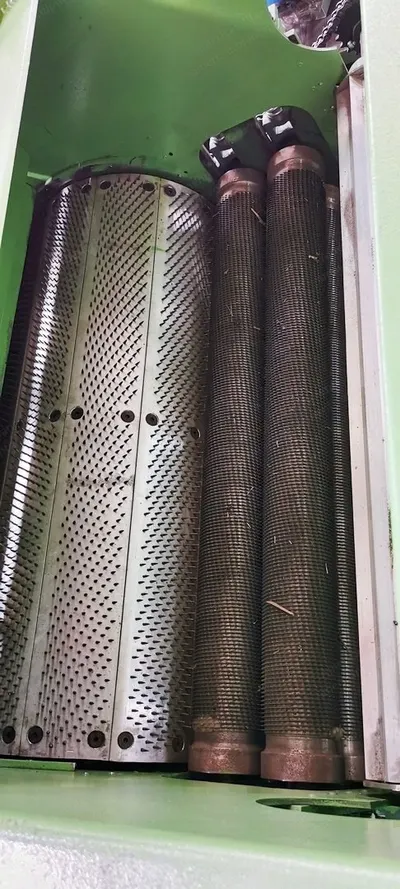

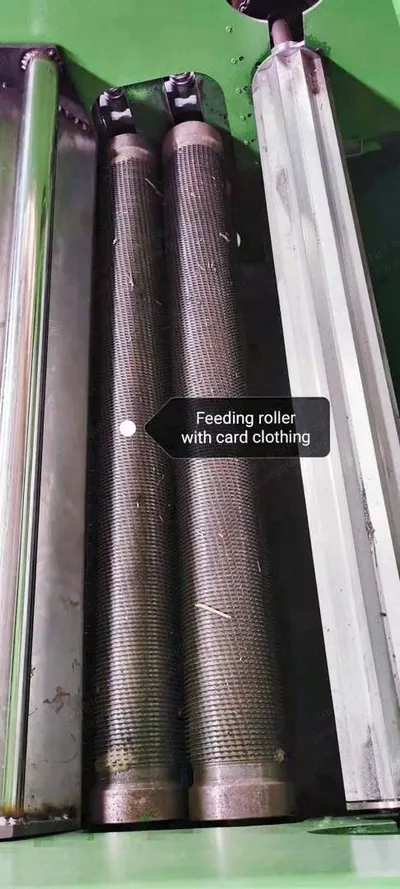

Description Overview Edge-trim opener with double opening roller Machine type: double roller opener Capacity: up to 500 kg per hour Working width: 1000 mm There are 2 cylinders on this edge-trim opener for wadding product Specifications Diameter of opening cylinder: 472 mm (including height of pin plate) 11 lags on each cylinder 600 pins on each lag 6600 pins population on each cylinder Fan motor power: 5.5 kW Installed power: 17.2 kW Feeding motor is frequency controlled, speed control Main opening roller is seamless steel pipe with aluminum alloy pin plate Feeding roller is seamless steel tube covered with wire, and the feeding method of the cotton board is adjustable Feeding roller is with card clothing Electrical Control System 1 suit included Dimensions External dimensions (including length of conveyor belt): 4630 mm length x 1500 mm width x 910 mm height (fan dimensions not included) Packaging Well packaged for loading
