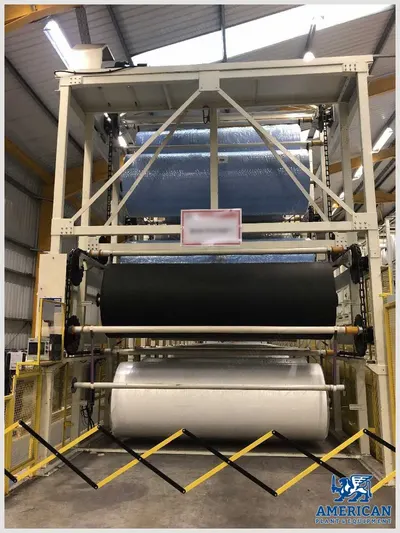

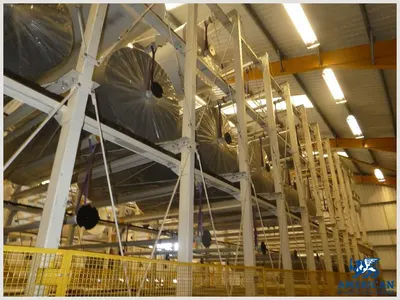

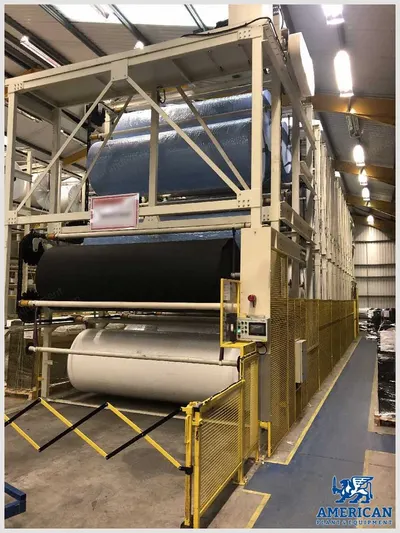

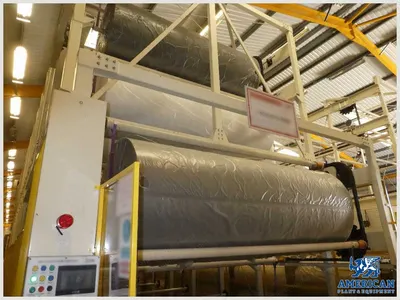

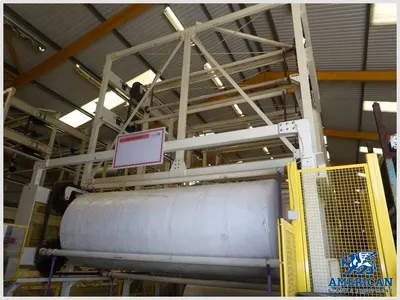

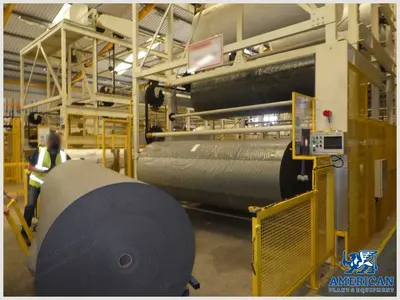

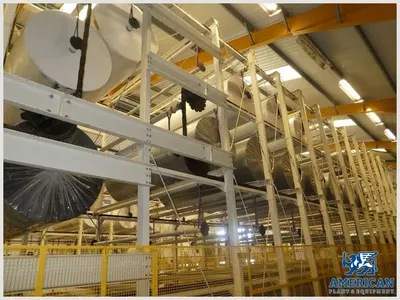

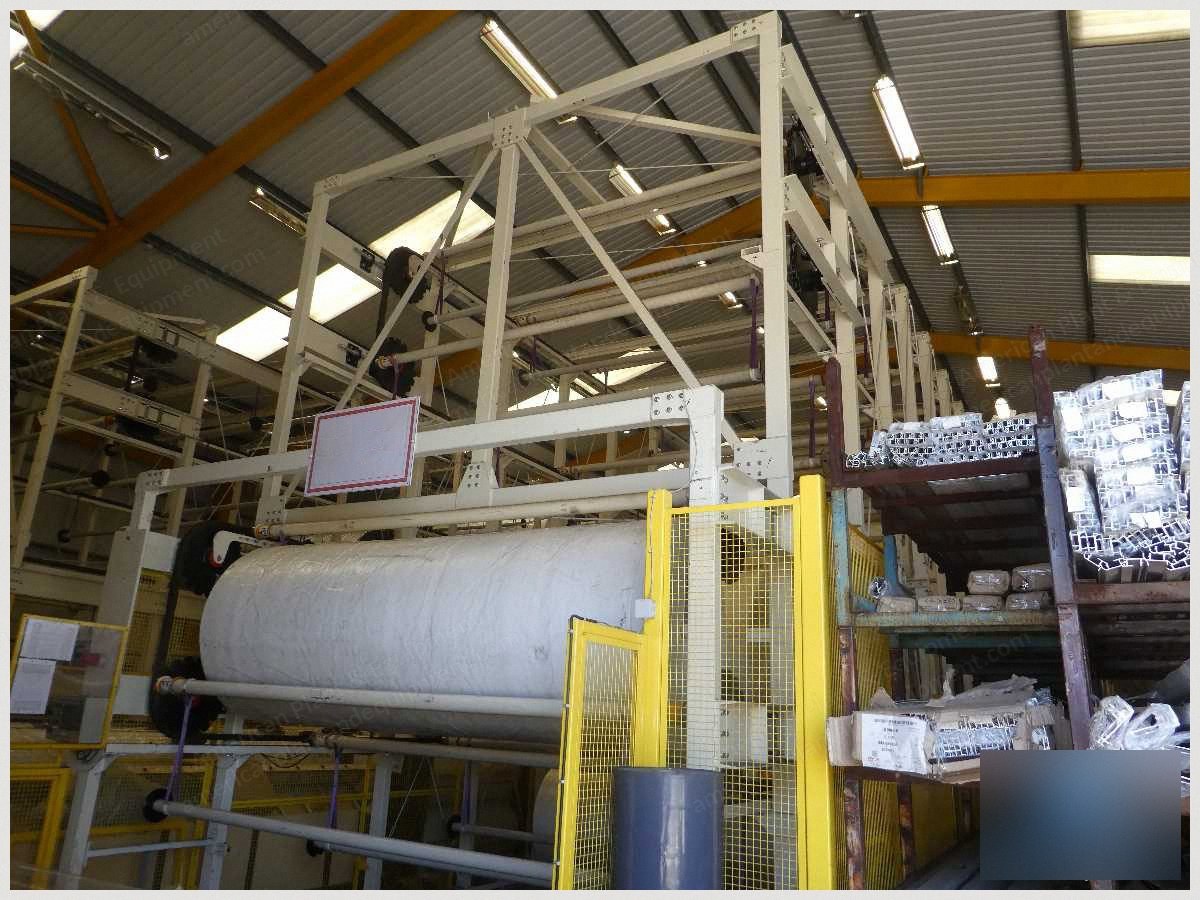

Suntech, ST-BS-50, 2016, 50 Beam Storage System, Working Width 2000mm to 3200mm, 4 Layers

Suntech, ST-BS-50, 2016, 50 Beam Storage System, Working Width 2000mm to 3200mm, 4 Layers Sold

Description

  1. Overview

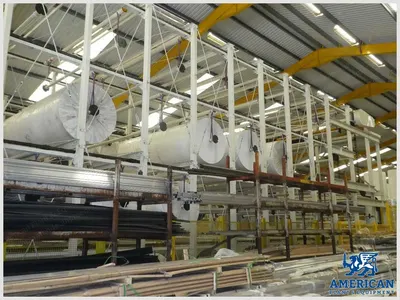

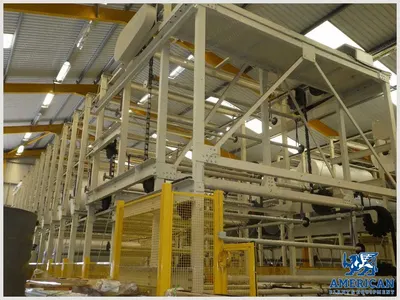

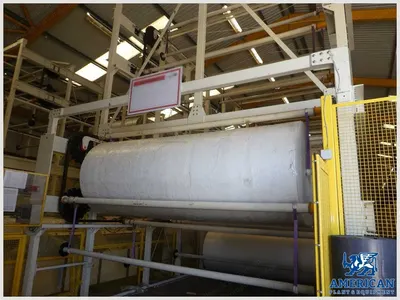

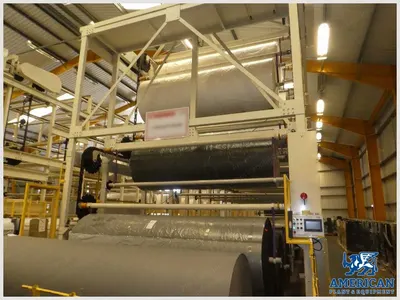

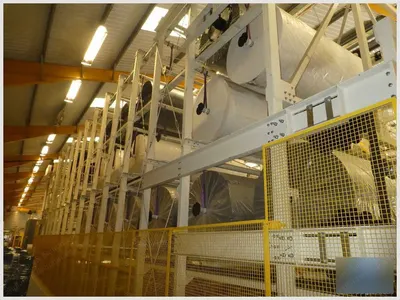

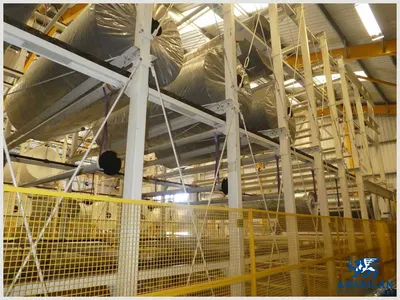

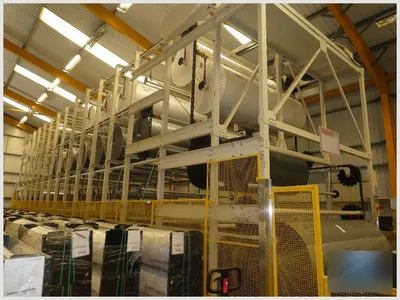

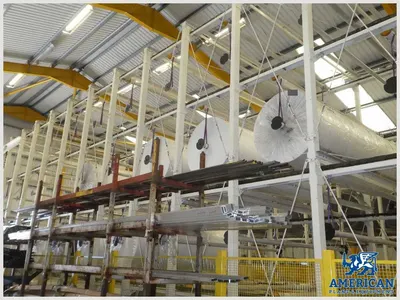

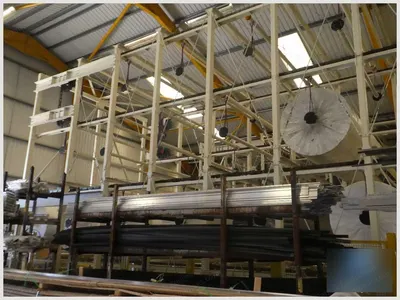

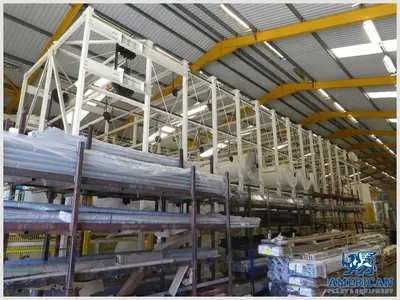

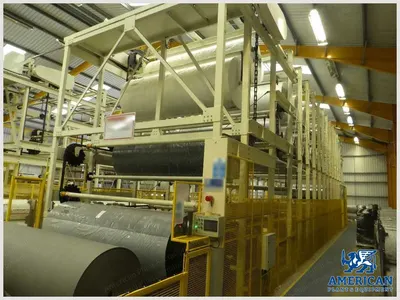

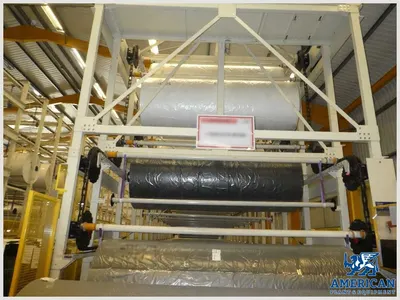

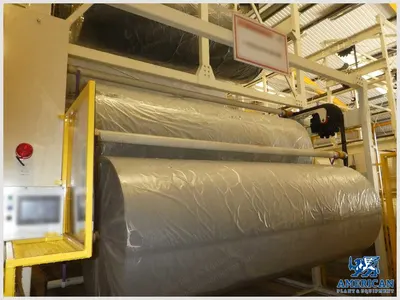

    1. Suntech 50 beam storage system
    2. Brand: Suntech
    3. Model: ST-BS-50
    4. Year: 2016
    5. Type, model and nominal working width of warping: Picanol
  2. Specifications
    1. Working width: 2000 mm to 3200 mm
    2. Maximum fabric roll storage quantity: 50 pieces
    3. Fabric roll diameter: 1200 mm
    4. Maximum fabric roll length: 3270 mm
    5. Maximum fabric roll weight (single unit): 750 kg
    6. Layer: four layers (double exits)
    7. Machine space required (L x W x H): 23025 x 4600 x 6240 mm
    8. Space for operator: 2000 to 2500 mm each side
    9. Running chain pitch: 92 mm
    10. Pillar: rectangular tube with thickness 6 mm
    11. Total power: 5.5 kW
    12. Power supply: 3 phase 380 V / 50 Hz
  3. Control And Automation
    1. PLC controlling: Japanese brand Omron
    2. Touch screen: Taiwan brand Weinview
    3. Operational model: automatic and/or manual
    4. Forward and backward running: 6 m/min
    5. Maximum running speed: 6 meters per minute
    6. Electric hydraulic lift table: no
    7. Enclosed controlled panel with PLC for sequential control of machine
    8. HMI touch screen for easy and quick access of data and machine operation
    9. Automatic fabric roll selection based on entered data like fabric roll number/beam code/etc; machine will select shortest path to select fabric roll and bring it at doffing position (standard type)
  4. Condition
    1. Status: still operating and can be seen running
    2. Condition: complete and in excellent condition
