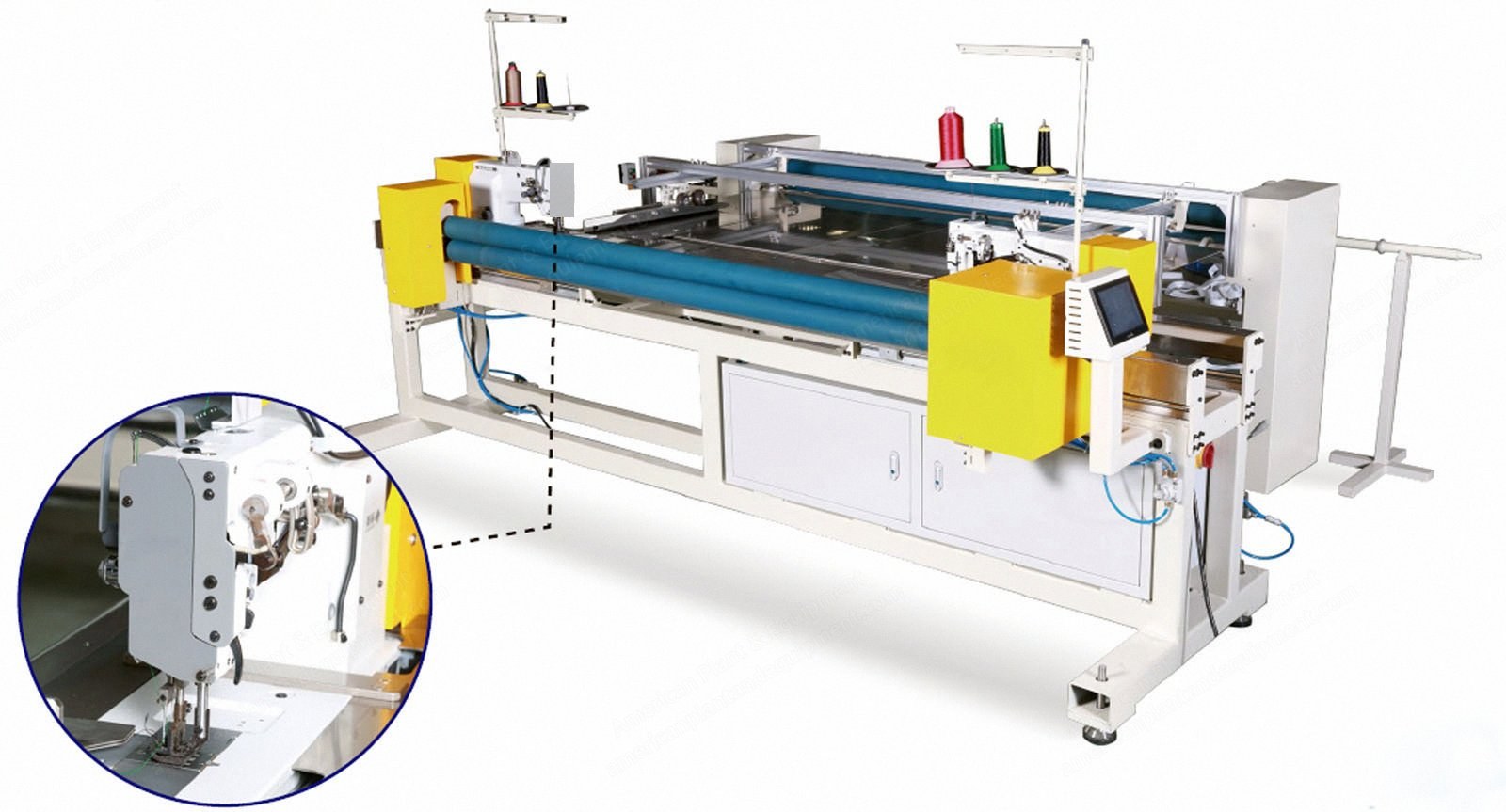

NovaStar, MU130, Continuous Feeding Both Sided Folded Seam Sewing Machine, 1800-2000mm Working Width, 2000 RPM (New)

NovaStar, MU130, Continuous Feeding Both Sided Folded Seam Sewing Machine, 1800-2000mm Working Width, 2000 RPM

Description

  1. Overview
    1. Two sides edge sewing machine
    2. Max sewing speed of 2000 rpm
    3. 2000 stitches per minute
    4. Stitch type: single thread lock stitch or double threads lock stitch
    5. Sewing head brand: Highlead
  2. Specifications
    1. Sewing width (customization is possible): 1800 mm to 2000 mm
    2. Max speed: 2000 rpm
    3. Operation screen: 7 inches LCD touch screen
    4. Stitch length: 2 mm to 7 mm can be adjusted
    5. Pattern transmission: USB storage
    6. Power supply: three phase 480 V
    7. Rotary hook: X3 jumbo rotary hook
    8. Stitch type: double needles lock stitch
    9. Needle distance: 25 mm
    10. Air pressure: 0.6 MPa
    11. Power: 3 kW
    12. Dimensions: 3300 mm x 2300 mm x 1700 mm (L x W x H)
  3. Features
    1. Stitch length 2 mm to 7 mm
    2. Fabric width: range from 1800 mm to 2000 mm (customization is possible)
    3. Double-thread and single-thread foldable seams (optional overlock machine head)
    4. While folding, able to wrap and fold inside with reinforced tape and rope
    5. Both left/right sewing heads are adjustable for various fabric width
  4. Application

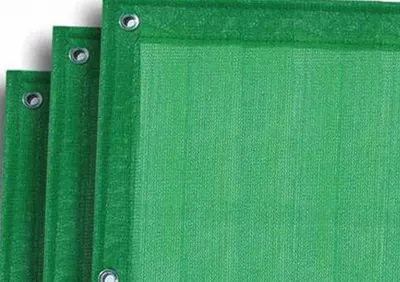

    1. Suitable for curtains, tarpaulins and waterproof cover products with continuous both edges sewing requirement
  5. Configuration
    1. 7 inches LCD touch screen
    2. SMC pneumatic component
    3. Igus (Germany) energy chain
    4. Double-needle sewing machine head
