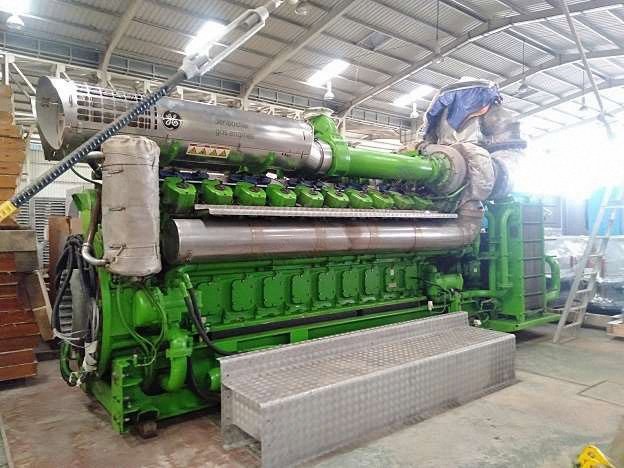

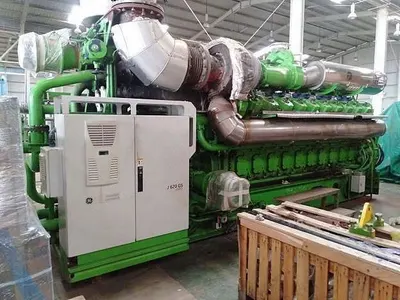

Jenbacher, J620 GS-F, 2012, 3.3 MW, 11 kV, 50 Hz, Gas Engine Generator Set

Jenbacher, J620 GS-F, 2012, 3.3 MW, 11 kV, 50 Hz, Gas Engine Generator Set Sold

Description

  1. Overview

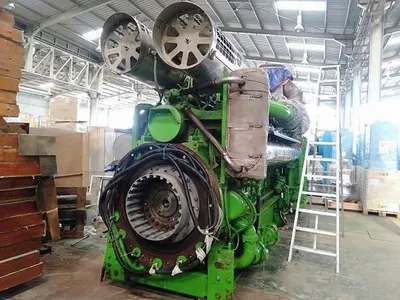

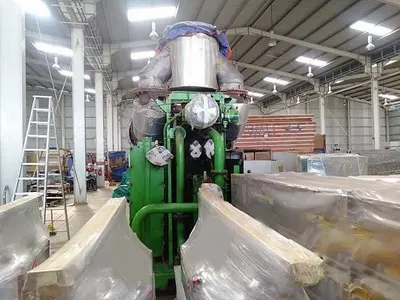

    1. Jenbacher J620 F11 gas engine generating set
    2. Year of manufacturing: 2013
    3. Running hours: 20,000 hours
    4. 3 MW each
    5. 11 kV
    6. 50 Hz
    7. Jenbacher 620 standard
  2. Scope Of Supply
    1. Complete engine base frame, 1 x
    2. Air inlet box, 1 x
    3. Gas mixer, 1 x
    4. Oil pump, 1 x
    5. Inter cooler, 1 x
    6. Coupling, 1 x
    7. Exhaust scavenging system, 1 x

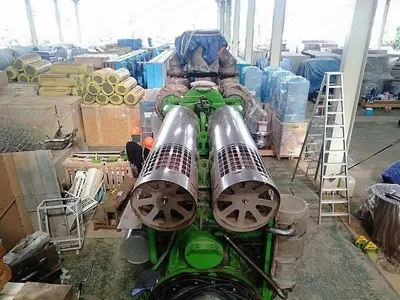

    8. Complete exhaust gas manifold with insulation (A & B bank), 1 x set

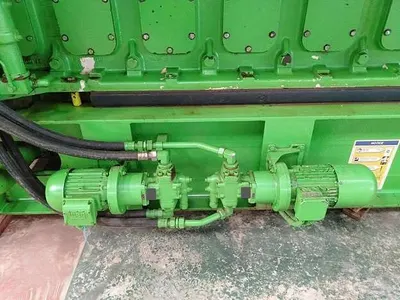

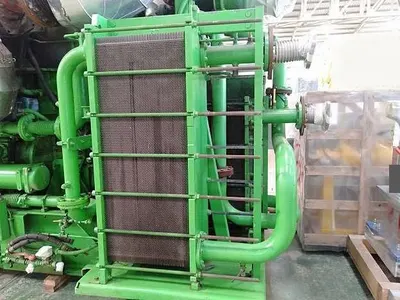

    9. Jacket water pump & heat exchanger mounted on the base frame with pipe work, 1 x
    10. Complete jacket water pre-heating system, 1 x
    11. Complete lube oil refilling system, 1 x
    12. Lube oil heat exchanger mounted to the base frame with pipe work, 1 x

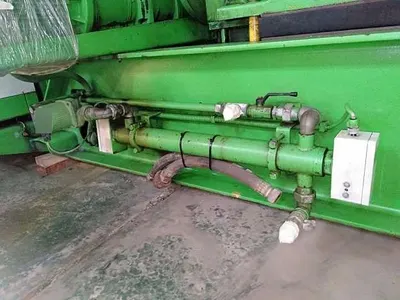

    13. All engine related water, oil and exhaust piping on the engine base frame, 1 x set
    14. Electric starter motors, 3 x

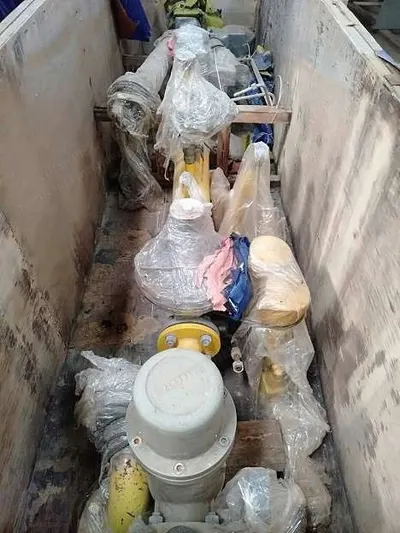

    15. Main pre-chamber gas train, 1 x
    16. Maintenance platform, 2 x
    17. Alternator, 1 x
    18. Module control panel - Diane system, 1 x
    19. Complete operation & maintenance manuals, incl. spare parts book, 1 x set
    20. Set of technical docs incl. but not limited to drawings of the engine, P&I diagrams, wiring diagram, single line diagram, 1 x set
  3. Gas Engine Generating Set
    1. Type: JMS 620 GS-F
    2. Year of manufacturer: 2012
    3. Operating hours: 19,784
    4. Rated power (COP): 3349 kW
    5. Rated power factor: 1
    6. Max. site altitude: 500 m
    7. Max. ambient temp. (intake air): 40°C
    8. Rated frequency: 50 Hz
    9. Rated voltage: 11000 V
    10. Rated current: 176 A
    11. Mass: 21300
    12. Performance: G2

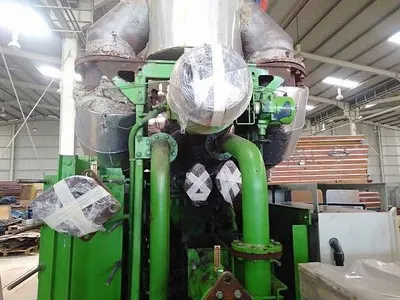

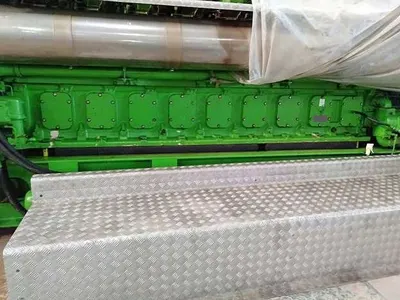

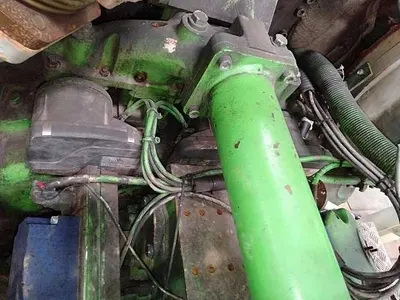

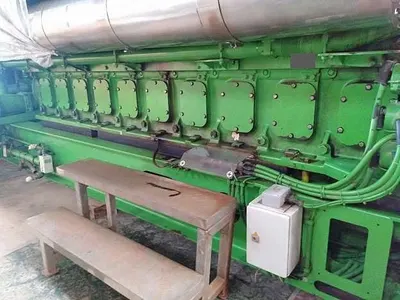

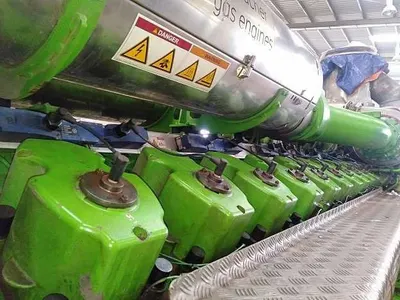

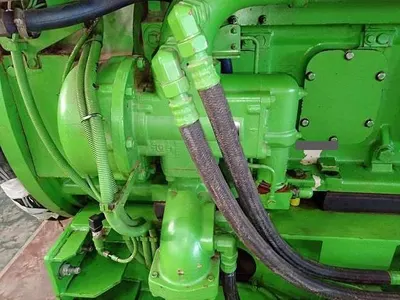

  4. Engine
    1. Engine type: J 620 GS-F111
    2. ISO standard power: 3431 kW
    3. Speed: 1500 rpm
    4. Weight: 16100 kg

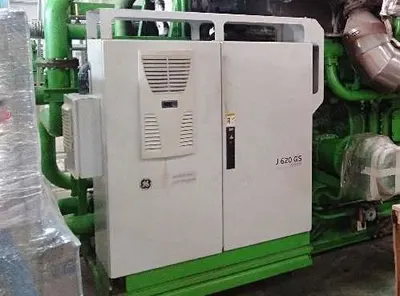

  5. Interface Panel
    1. Wiring diagram: J P219 +M1
    2. Year of manufacturer: 2012

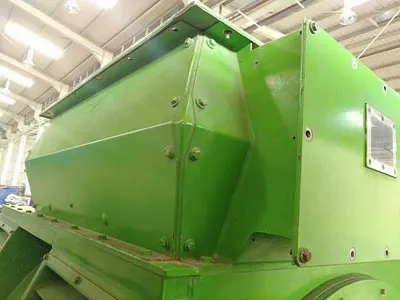

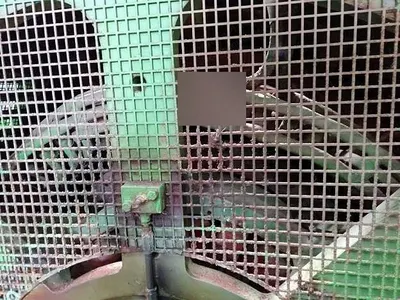

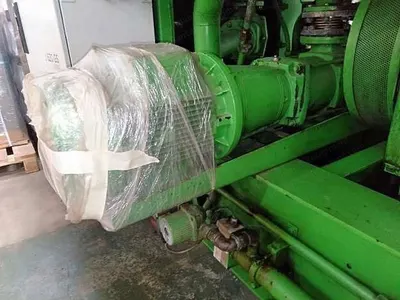

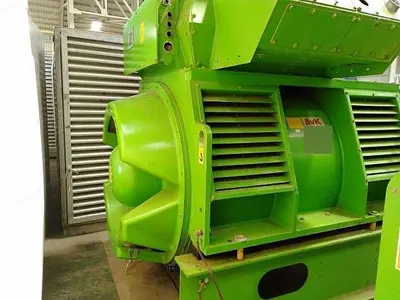

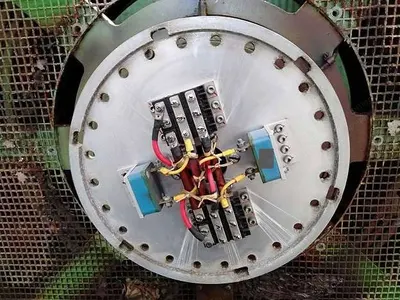

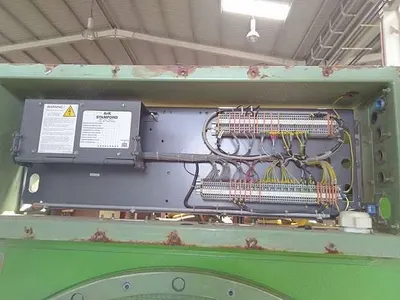

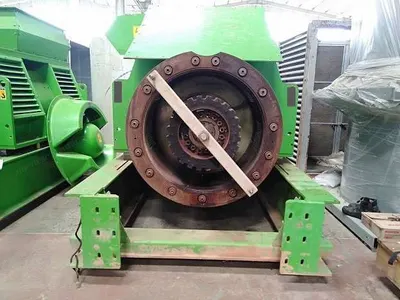

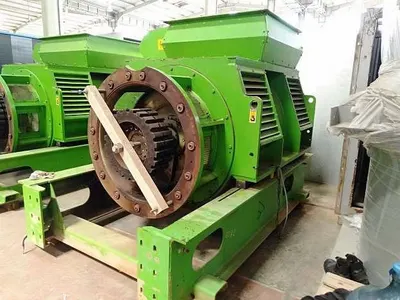

  6. Generator
    1. Frame/core: DI GG 142 E/4
    2. Year of manufacturer: 2012
    3. KVA base rate (BR): 4450 kVA
    4. Frequency (Hz): 50
    5. Speed (rpm): 1500
    6. Over speed (rpm): 1800
    7. Voltage (volt): 10500
    8. Phase: 3
    9. Connection: Y
    10. Amps base rate (BR): 245 A
    11. Power factor (PF): 0.80
    12. Rating: S1
    13. Excitation (volt): 48.4
    14. Excitation (amps): 4.97
    15. Ambient temp.: 40°C
    16. Enclosure: IP 23
    17. Insulation class: F/F
    18. Weight: 9700 kg

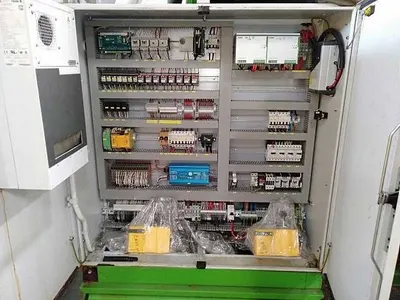

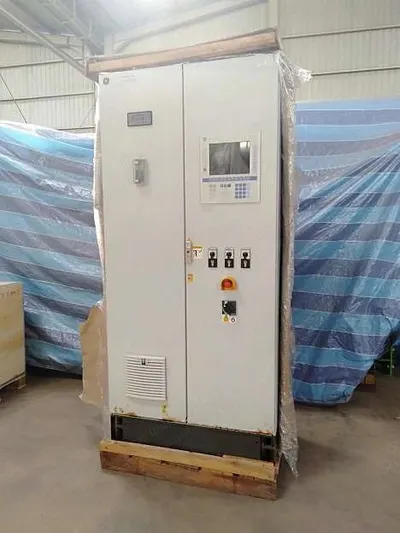

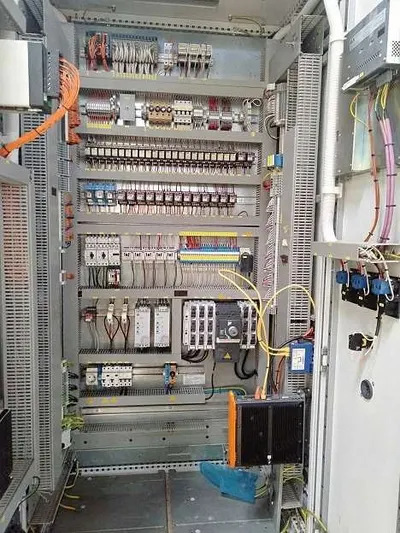

  7. Module Control Panel
    1. Wiring diagram: J P219 +A1
    2. Year of manufacturer: 2012
  8. Technical Documents
    1. Technical description: wiring diagram
    2. Maintenance book: spare parts list
    3. Alarm list: logsheet (at least last 3 months)
  9. Historical Data Of The Units
    1. 1st engine commissioning date
    2. The last date operated
    3. Stop mode
    4. Running hours
    5. Stop reason
    6. Periodical maintenance
    7. Unscheduled repair
    8. Part replacement
    9. Engine oil
    10. Others
