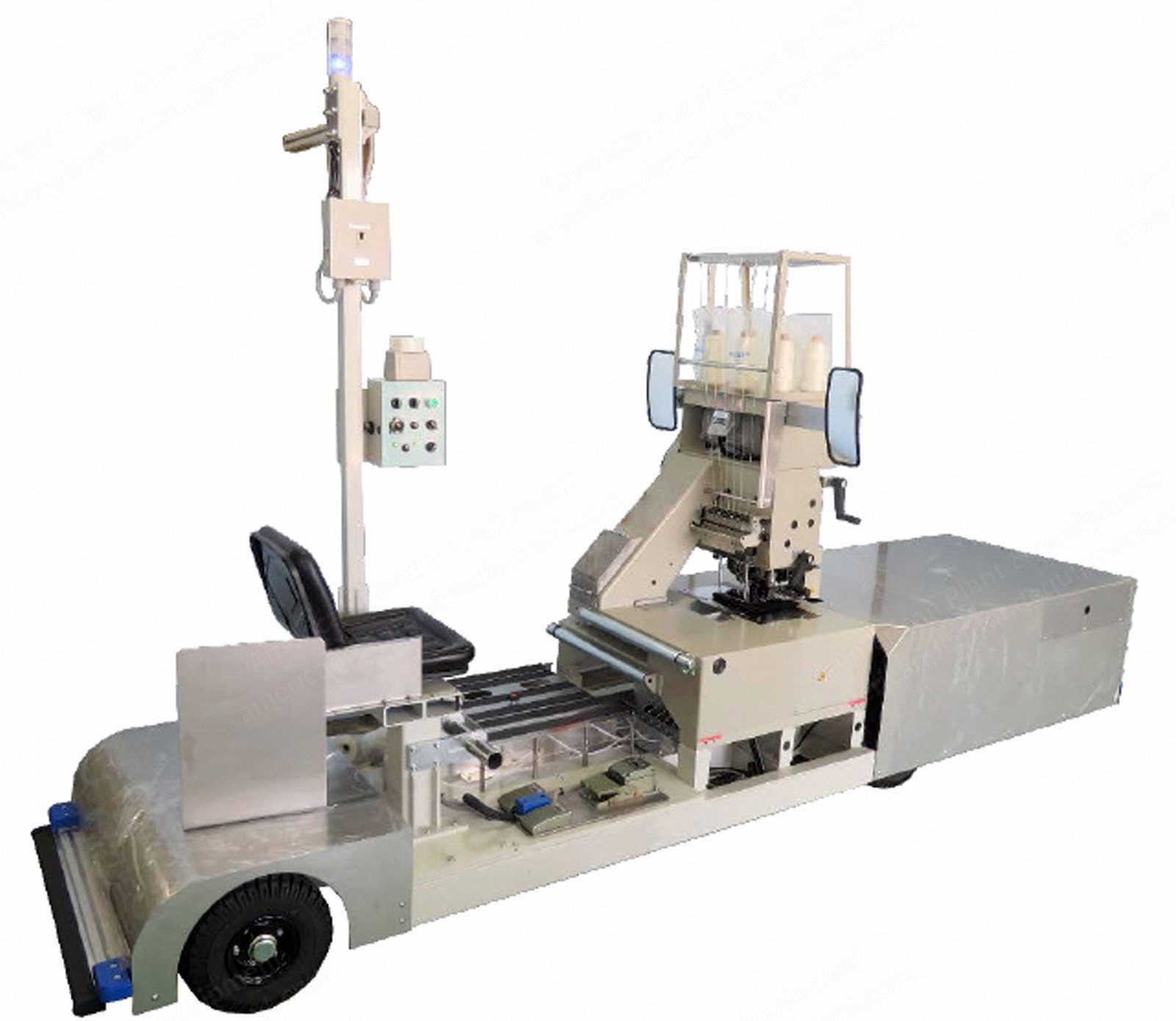

Description Overview Industrial sewing machine for joining heavy and wide fabrics 6 needles, top and bottom feed, double-chain-stitch, self-propelled type for joining wide width sheets Electrical Specifications Input power: AC 3P 200-220V ±10% 50/60Hz Power consumption: approx. 4.5 kVA Sewing Part Arm: Z-type Sewing speed: 200-800 spm inverter-control Feed mechanism: top and bottom feed and pull roller Bed height: 580mm Distance from the center to machine arm: left 120mm / right 120mm Needle gauge: max. 76.2mm Stitch length: 6 to 10mm Needle-bar stroke: 45mm Needle and looper: max. 6 pcs. Thread stand: upper 6 pcs. / lower 6 pcs. Needle no.: DR x 2 #25 or DV x 600 #23(180) Needle stop position: needle goes up automatically as machine stops Pull roller: lower roller drive Operation mode: auto - manual - inching Drive motor: 3φ 1.5 kW / 4P Start up: button-switch Presser height: max. 20mm Driving Part Speed: max. 14m/min Operating devices: pedals for driving and steering Steering selector (dial or pedal) Adjustment dial for synchronizing sewing and driving speed Driving selector (forward or backward) Safety devices: bumper switch on front and rear side Emergency stop button (2 pcs.) Drive motor: 0.4 kW x 2 (inverter control) Steering motor: 0.1 kW (inverter control) Dimensions and Weight Dimension (W x D x H): approx. 3500 x 820 x 1970mm Net weight: approx. 890kg
