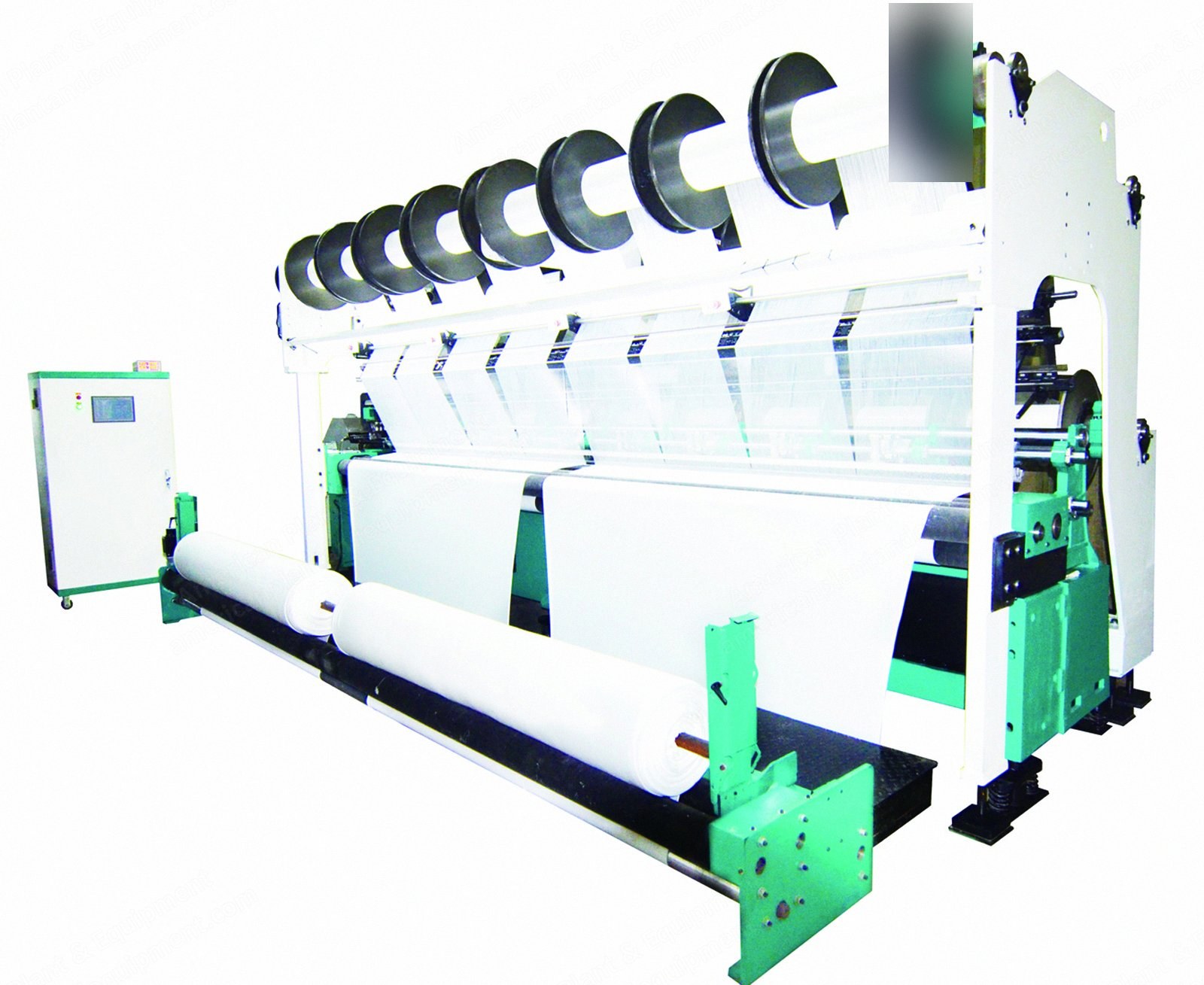

NovaStar, KH194, 218" Working Width, E28 Gauge, 4 Bars EL, Carbon Guide Bar (New)

NovaStar, KH194, 218" Working Width, E28 Gauge, 4 Bars EL, Carbon Guide Bar

Description

  1. Overview
    1. Numerical controlled tricot high speed machine
    2. E28/218”/EBA/compound needle (Groz)
    3. 4 bars EL for design, carbon guide bar
    4. With 4 groups of laser stop
  2. Machine Specifications
    1. Needle: compound needle (Groz-Beckert) 51.50G104
    2. Guide needle, sinker needle, core needle (Saxonia or Groz Beckert needle)
    3. Working width: 218”
    4. Gauge: E28
    5. Bars: 4 bars (carbon guide bar)
    6. Needle bed: carbon
    7. Pattern manner: EL
    8. Let-off manner: EBC
    9. Draw-off (fabric taking): EAC
    10. Take-up manner (batching device): electronic taking up
    11. All bars beam size: 21 x 30”
    12. Speed: 20-1800 rpm (according to the yarn and design and workshop environment)
    13. GB3 and GB4 can use spandex yarn
    14. Main motor: 7.5 kW
    15. Total kW: 7.5 + 7.5 + 8 + 1.5 + 2 + 3 + 0.75 x 2 = 31 kW
    16. Main motor 7.5 kW x 1 = 7.5 kW
    17. Let off motor + fabric taking: Dorna 1.5 kW x 5 = 7.5 kW
    18. EL motor (Fuji) 2 kW x 4 = 8 kW (for choose, also have 1.5 kW)
    19. Batching device: 1.5 kW

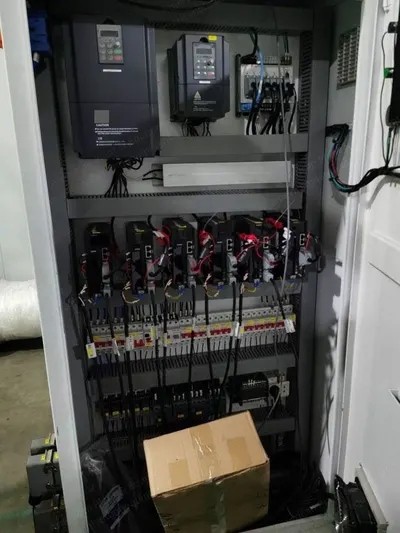

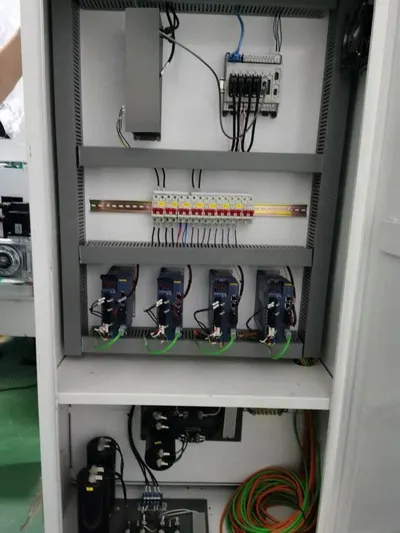

    20. Control box: 2 kW
    21. Oil heating and cooling device: 3 kW (intermittent work)
    22. Air blow device: 0.75 kW
    23. Jogging motor: 0.75 kW, for slow running
    24. Touch screen
    25. With 4 groups of laser stop device and air blow device and tension protection device
    26. Needle bed and guide bar and sinker needle bed use carbon fiber material
    27. Power requirement: 3 phase 480 volts 60 Hz
    28. Main motor inventor: Delixi
    29. Screen language in English, Turkish
    30. With oil temperature control system (cooling and heating device)

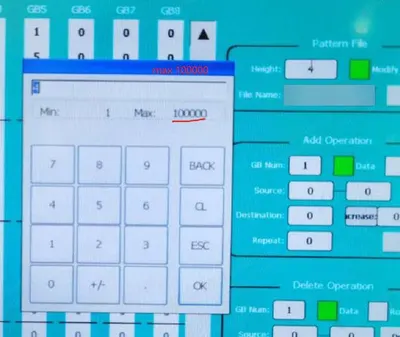

    31. No limit system set 100,000 pattern length
    32. Industrial motion controller (SYMC): Googoltech
    33. Machine warranty: one year
  3. Parts List for Free
    1. Tool box: 1 set
    2. Threading comb: E28, 2 pcs
    3. Threading hook: 20 pcs
    4. Threading slice: 20 pcs
    5. Oil seal: 5 pcs
    6. Needle fixing cover (cover bed): 10 pcs
    7. Compound needle 51.50G104: 500 pcs
    8. Core: C-28-33/ABT, 20 pcs
    9. Guide needle KL-29-93A-49/2: 20 pcs
    10. Sinker needle P-28-130VP-54/B: 20 pcs
    11. Steel wire for guide bar: 2 pcs
    12. Guide needle screw: 200 pcs
    13. EL servo motor: 1 set
    14. EL servo drive: 1 set
    15. Let-off servo drive: 1 set
    16. Let-off servo drive: 1 set
    17. Let-off gear box: 1 set
    18. Let-off timing belt: 1 pc
    19. Grease gun: 1 pc
  4. Shipping
    1. Requires 1 container to ship
