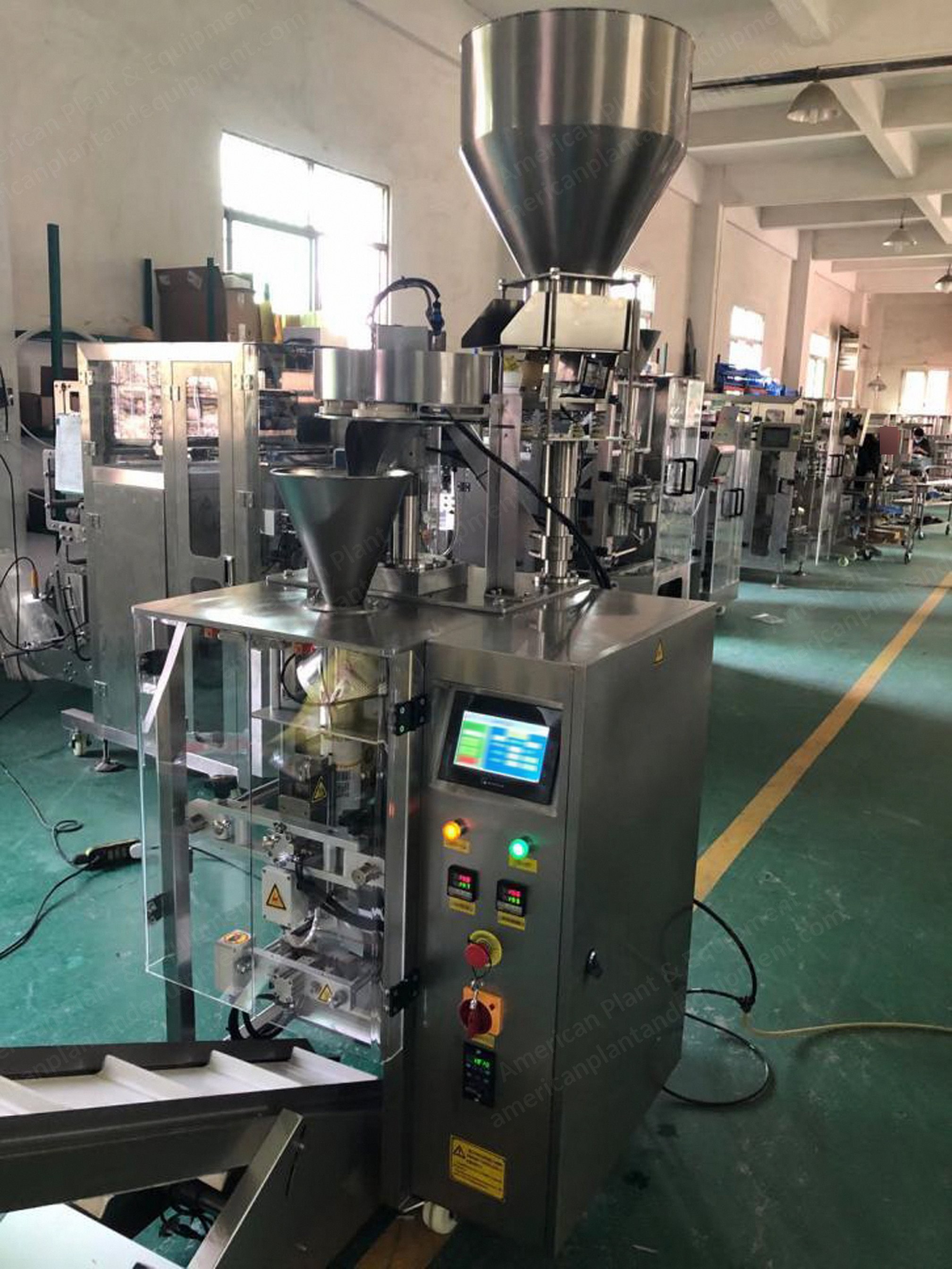

NovaStar, GK167, Vertical Automatic Packaging Machine, 10 to 70 Bags per Minute, 320mm Max Roll Film Width, Stainless Steel 304 (New)

NovaStar, GK167, Vertical Automatic Packaging Machine, 10 to 70 Bags per Minute, 320mm Max Roll Film Width, Stainless Steel 304

Description

  1. Overview
    1. Item 001: Vertical automatic packaging machine and measuring cup
    2. Item 002: Former
    3. Item 003: Nitrogen charging device
    4. Item 004: Finished product conveyor (optional)
  2. Specifications
    1. Capacity: 10 to 70 bags per minute
    2. Bag dimensions: (L) 10 to 200 mm, (W) 40 to 150 mm
    3. Maximum width for roll film: 320 mm
    4. Packing speed: 5 to 60 bags per minute
    5. Range: 5 to 1000 ml
    6. Air consumption: 0.8 MPA, 0.5 m³ per minute
    7. Dimensions: L 1458 x W 920 x H 2292 mm
    8. Net weight: 480 kg

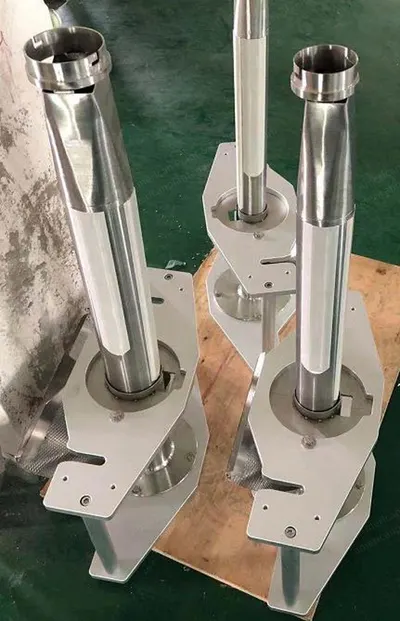

  3. Former Details
    1. Spares former: The plastic film used for packaging is automatically rolled into a cylindrical shape by a lapel machine
  4. Conveyor Specifications
    1. Machine frame: Fully stainless steel #304
    2. Feeding speed: 30 meters per minute
    3. Belt width: 230 mm
    4. The lifting height: 600 to 800 mm
    5. Dimensions: 2110 x 340 x 500 mm
    6. Net weight: 68 kg
    7. Gross weight: 120 kg
