NovaStar, Recycle Foam Cutting Machine, Working Width 500mm, Capacity 300 kg/h, 10 kW

Overview

1. Designed for cutting polyurethane foam wastes

2. Ideal for polyurethane recycling processes

3. Output product is suitable for filling pillows and furniture industry

4. Small size and high efficiency suited for furniture producers with waste foam

Machine Configuration

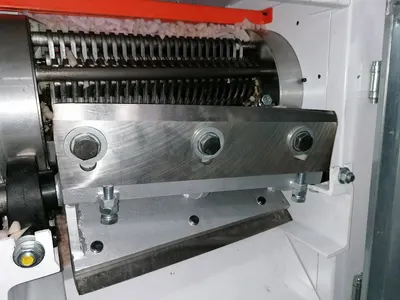

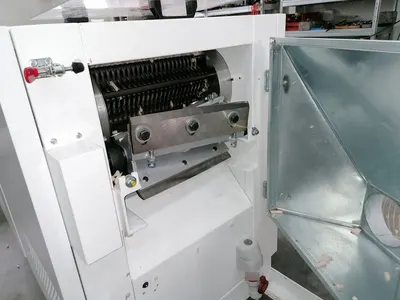

1. Consists of three cutting units for polyurethane foam

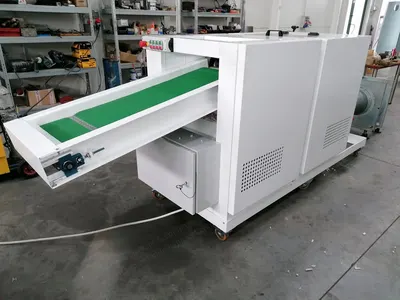

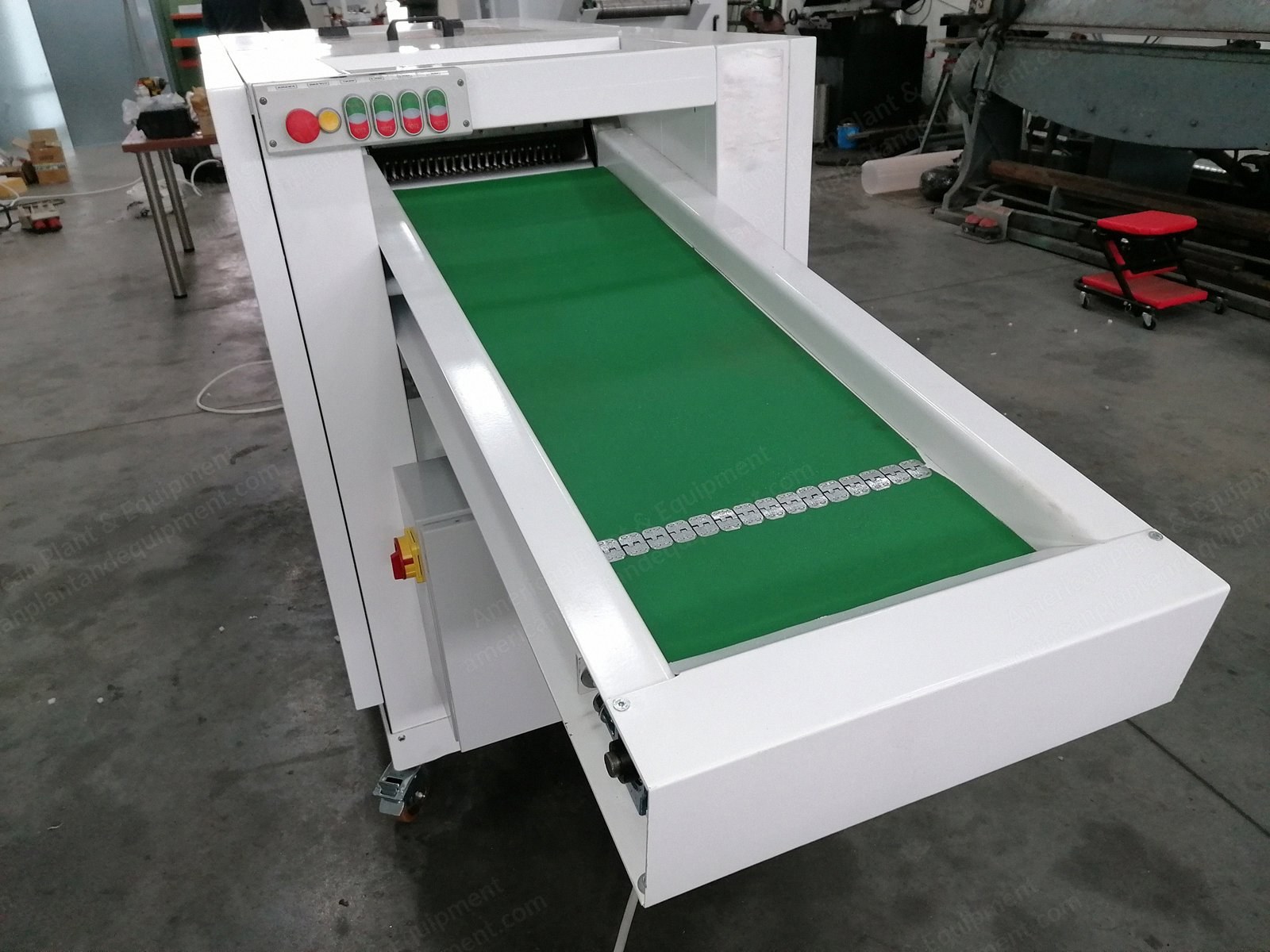

2. Raw material fed via feeding conveyor belt to loading tunnel

3. In loading tunnel, foam is fed to first cutting section

4. First cutting section cuts raw material into flakes, then directed to chute by conveyor

5. Cut foam is processed by second cutting section, cutting in second plane

6. From second cutting section, foam transported by lower and upper conveyor to third cutting section

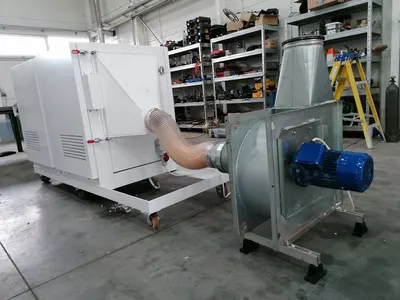

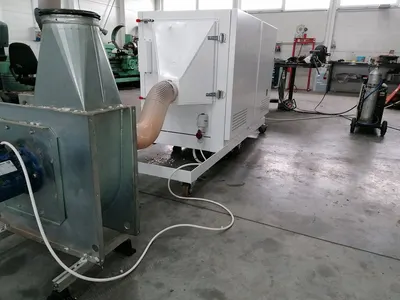

7. Cut polyurethane foam is sucked out by packing station, which places product in bags

Specifications

1. Capacity: 300 kg per hour

2. Working width: 500 mm

3. Height: 1150 mm

4. Length: 2500 mm

5. Weight: 290 kg

6. Power: 10 kW
