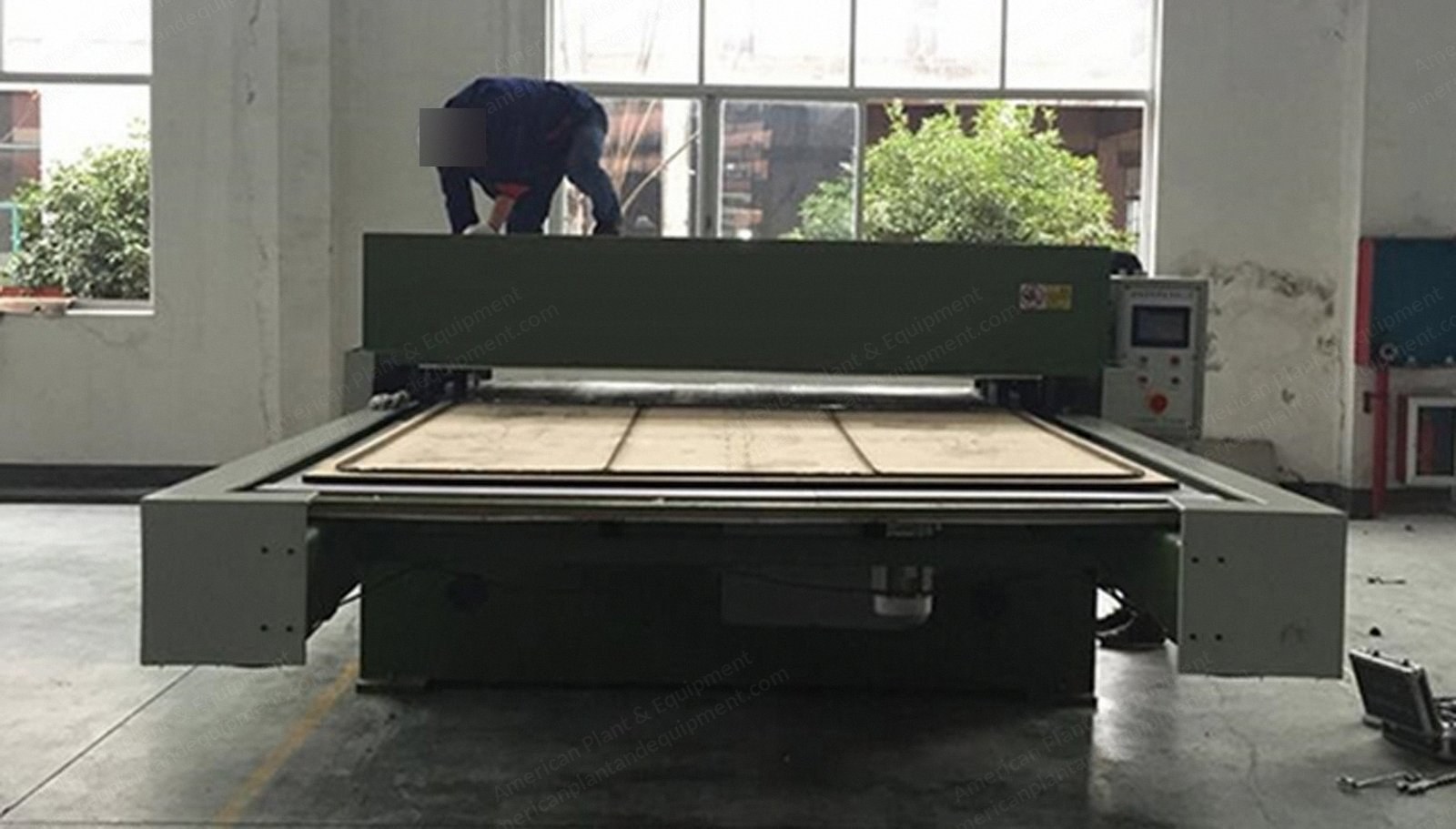

NovaStar, DT149, 50 Ton, 2000x600mm, 5.5 kW (New)

NovaStar, DT149, 50 Ton, 2000x600mm, 5.5 kW

Description

  1. Overview
    1. Precision oil press die cutting machine
    2. Capacity: 50 ton
    3. Operation platform area: 2000 x 600 mm
    4. Feeding part face to worker: 2000 mm
    5. Operation platform range: 50 to 250 mm (adjustable)
    6. Max pressure capacity: 50 ton (adjustable)
    7. Table board height: 800 mm
    8. Work route adjustment accuracy: ±0.1 mm
    9. Cutting board up and down speed: 100 mm per second
    10. Power: 5.5 kW
    11. Weight: 2.5 tons
  2. Configuration Details
    1. PLC: 1 set, Mitsubishi
    2. Touch screen: 1 set
    3. Safety light: 1 set
    4. Automatic servo motor: 1 set
    5. Main motor (7.5 kW-4): 1 set
    6. Oil pump: 1 set
    7. Magnetic valve: 1 group
    8. Main engine oil cylinder: 1 set
    9. Feeding oil system cylinder: 1 set
    10. Oil seal: 1 set
    11. PE plate (25 mm): 1 piece
  3. Usage and Characteristics
    1. Applicable for whole-broken or semi-broken operation of various nonmetal slice materials by cutting die, such as plastics packing, pearl cotton packaging, rubber and printing industries.
    2. Mitsubishi PLC controlled, with simple, prompt and accurate operation.
    3. Main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which guarantees that the cutting depth at every cutting position is the same.
    4. Pressing board carries out slow cutting when it presses downward to contact the die cutter, ensuring no size error between the uppermost and lowermost layers of cut materials.
    5. Central oil supply automatic lubricating system guarantees the service life and precision of the machine.
    6. Single-side automatic feeding system can be allocated to enhance production efficiency twice or thrice.
    7. Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
    8. Die cutter pneumatic clamp device can be allocated to make replacement of die cutter convenient and prompt.
    9. Applies to punch electronic materials such as EVA, sponge, foam, PET, protective film through cutting.
  4. Packing
    1. Wooden case packing
