Murata, 363-S166 (L-Type), 1988, 120 Spindles, 165mm Spindle-Pot, 200V

Murata, 363-S166 (L-Type), 1988, 120 Spindles, 165mm Spindle-Pot, 200V

Description

  1. Overview

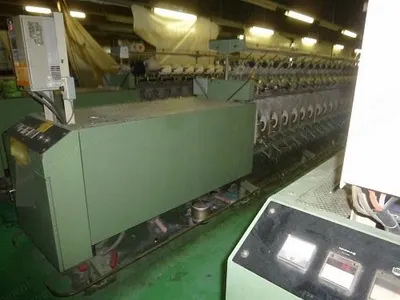

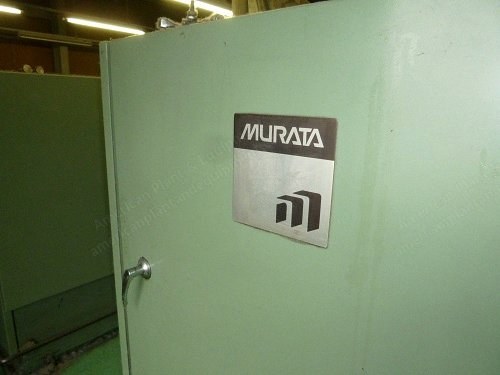

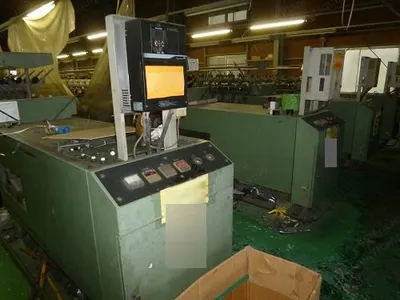

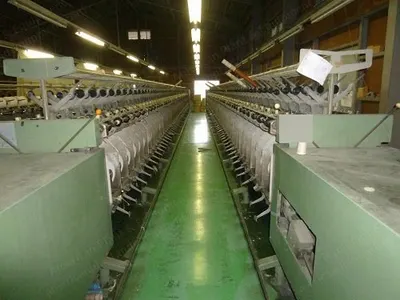

    1. Murata two-for-one twisters, model 363-s166 (l-type).
    2. Designed for application where yarn counts range from fine to medium.
    3. Spindles: 120.
    4. Year: 1988.

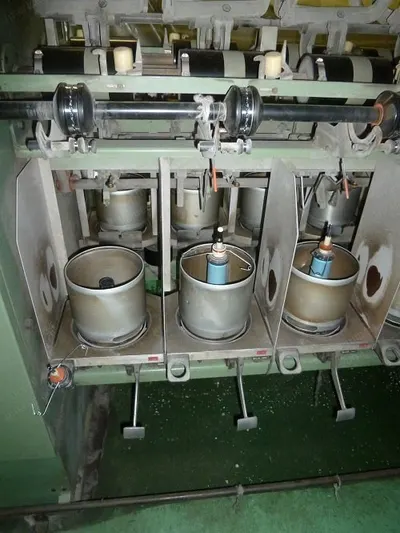

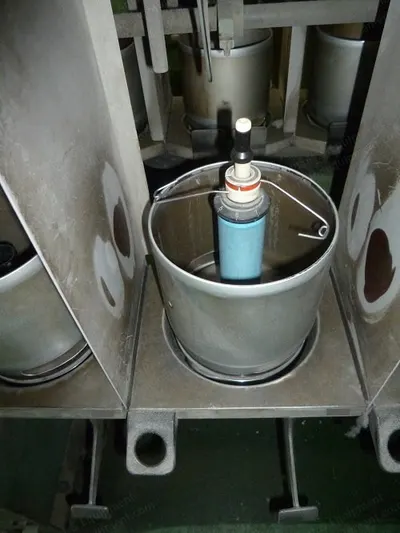

    5. Supply package (spindle-pot) size: 165 mm diameter.
    6. Max. weight of full package (cotton) gr (lb): 1100 (2.4).
    7. Yarn count range (ne cotton): 20/2 - 45/2.
    8. Yarn count range (nm): 2/34 - 2/76.
    9. Inverter: included.
    10. Machine dimensions l x w x h (mm): 18710 x 930 x 1640 for 120 sp.
  2. Specifications
    1. Spindle pitch: 254 mm.
    2. Maximum spindle speed (rpm): 9000, 10000, 11000, 12000.
    3. Range of twist t/m (tpi): 170 - 2000 (4.3 - 50.8).
    4. Twist direction: s & z twisting changeable.
    5. Supply package traverse in (mm): 6 (152).
    6. Take-up package traverse in (mm): 6 (152).
    7. Take-up bobbin: 3°30' cone.
    8. Maximum take-up package diameter (mm): 250.
    9. Spindle drive: endless belt driving.
    10. Waxing device: included.
    11. Tension device: capsule type.
    12. Starting system: slow start by start delta system.
    13. Lease angle: adjustable in range of 12°14' to 21°24'.
    14. Voltage: 200 volts / 60 hz / 3-phase.
  3. Condition
    1. Quantity: 4 sets.
