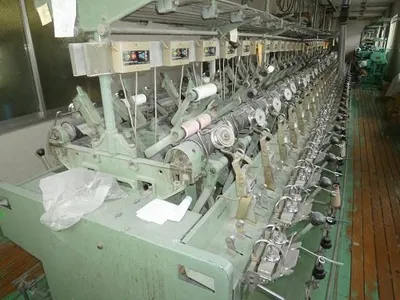

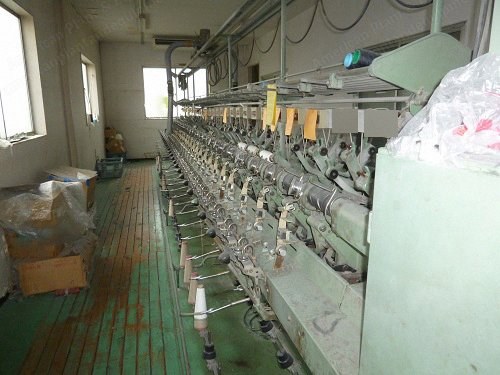

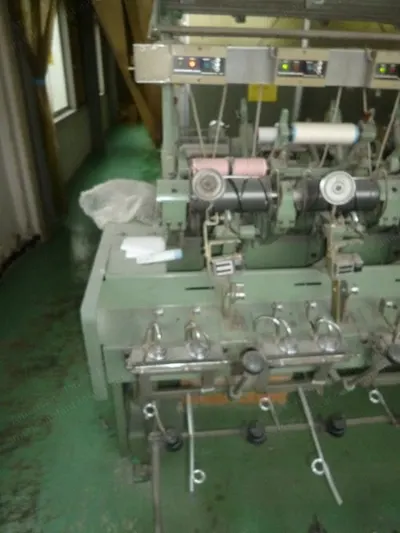

Murata, Model 23, 1988, 60 Spindles, 152mm Traverse, 2-Ply Doubling

Description

Overview
1. Murata doubler-winders, model 23
2. This machine can wind all kinds of spun yarns in cheese by simple operation, with quality packages and increased productivity, for supply to two-for-one twisters.
3. 60 spindles
4. Year 1988
Specifications
1. Yarn applicable: cotton, worsted, staple fibres, synthetic, blended spun yarns
2. Doubling: 2-ply yarns doubling
3. Traverse: 152 mm (6)
4. Wind: 2.5 winds
5. Package shape: parallel cheese
6. Maximum package diameter: 250 mm (10)
7. Yarn speed (step pulley): 250, 300 meters per minute; 350, 400 meters per minute
8. Pitch of drum: 260 mm
9. Drive motor: 2.0 kW x 2 sets
Attachments
1. Blow cleaner
2. Tachometer
3. Ribbon breaker
4. Carrier rail

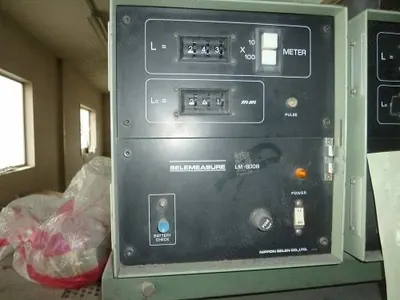

5. Nippon Selen's yarn length measuring device Selemeasure
6. Yarn fault detecting device type NE66

HS code	8445.40

Capacity	60 spindles
Winds	2.5
Yarn Applicable	Cotton, worsted, staple fibres, synthetic, blended spun yarns

Pitch of Drum	260 mm

Yarn Speed	250 m/min
