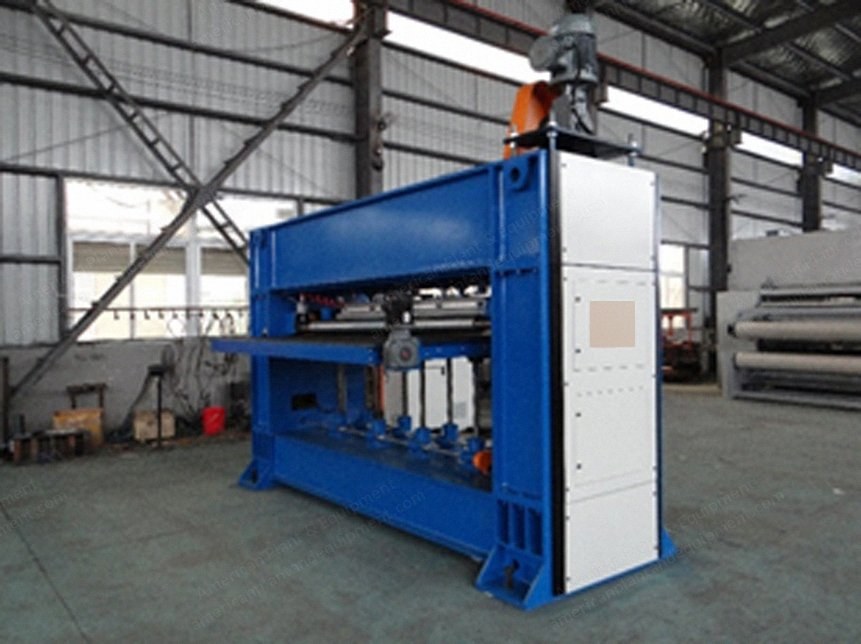

NovaStar, NN463, Flatbed Needle Loom, Up Punch, Working Width 1000mm, 60mm Stroke (New)

NovaStar, NN463, Flatbed Needle Loom, Up Punch, Working Width 1000mm, 60mm Stroke

Description

  1. Overview
    1. Flatbed needling machine
    2. Needling form: single needle board, upper stabbing (from the top down)
    3. Machine structure for three-stage, high machining precision, good stability, fashion appearance
  2. Specifications
    1. Working length: 1000 mm, width of the working table input and output of the network is 800 mm
    2. Stroke: 60 mm, stroke of stripping board: 30 mm
    3. Needle density: 24 rows, needle spacing 8 mm, diameter of the pinhole is 2.02 mm, computer straight stitch (for confirmation by both parties)
    4. Frequency: 60 to approximately 200 rpm
    5. Speed: 0.2 to approximately 2 meters per minute; servo motor control, can have forward and reverse cloth; inlet and outlet screen with press roller
    6. Installed power: main motor is 5.5 kW, motor for lifting the wool plate is 0.55 kW, with top dead stop function
  3. Construction And Materials
    1. Needle plate material: panel is aluminum magnesium alloy plate (air bag lock, easy to remove), back of pu composite cloth, iron plate wool plate thickness of 10 mm, stripping plate thickness of 14 mm, diameter of mesh plate is 5.5 mm, and conical reaming, diameter of the stripping plate is 5.5 mm
    2. Main body of the wall panel is made of 16 mm steel plate, main body of the beam is made of 12 mm steel plate, main body of the bottom needle beam is made of 25 mm steel plate
    3. Main bearing is twb
    4. There are 6 worm wheels for supporting wool plate, lifting range is up to 200 mm
  4. Control And Operation
    1. Control system adopts plc control, man-machine interface is easy to operate and humanized design
    2. Control operation table seal
  5. Additional Details
    1. Device color: customer's choice
