NovaStar, BS128, Automatic Bottom Sealing Bag Making Machine, Soft Loop Handle, 700mm Max Width, 60 pcs/min (New)

NovaStar, BS128, Automatic Bottom Sealing Bag Making Machine, Soft Loop Handle, 700mm Max Width, 60 pcs/min

Description

  1. Overview
    1. Automatic Bottom Sealing Bag Making Machine

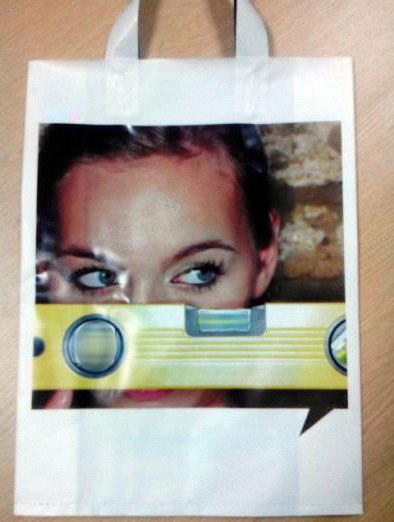

    2. With soft loop handle
    3. HS Code: 8477800000
  2. Technical Parameters
    1. Material HDPE, LDPE
    2. Film roller maximum width 700mm, maximum diameter 800mm
    3. Bag making speed: 60 pieces per minute
    4. Bag length <700mm
    5. Bag width <700mm
    6. Dimensions 5500 length x 2250 width x 1700mm height
    7. Power supply 220 Volts / 380 Volts
    8. Gross weight: 3300 kg
    9. Total power 15 kW
  3. Unwinding Unit
    1. Structure: lying horizontal position
    2. Controlling: auto tension controller, powder brake
    3. Corrective controlling device: progressive EPC device from Taiwan
    4. Automatic air cylinder roll lifting device with 3 inch air shaft
  4. Film Drawing Device
    1. Structure: air pressure type rubber friction with backward synchronous feeding unit
    2. Drive: digital AC servo motor
    3. Conveying: synchronous belt and synchronous wheel conveying, servo speed ratio: 1:2
    4. Controlling: PLC central control
    5. Inspection mode: mark sensor with close switch control
  5. Main Conveying Device
    1. Structure: bent arm swinging pole with two poles and main shaft double eccentric wheel line bearing guiding structure
    2. Drive: digital AC motor system: 1.5 kW
    3. Conveying: synchronous belt and synchronous wheel conveying, speed ratio: 1:2
    4. Controlling: PLC central control
  6. Heat Sealing Bar Device
    1. Structure: heat deformation proof, convenient change device
    2. Heating mode: pipe heater center heating
    3. Adjusting mode: left and right, up and down, independent regulation
  7. Temperature Controlling
    1. Inspection: thermocouple
    2. Controlling mode: temperature control meter, PID regulation, solid state relay drive
    3. Temperature set range: 0 to 400 degrees
    4. Temperature test point: electric heating, heat knife center
  8. Auto Location Device
    1. Mode: 1 Auto computer length control, precision ≤0.5mm
    2. 2 Reflective photocell sensor tracking control, precision ≤0.5mm
    3. Photocell searching range: 0 to 20mm (settable)
    4. Amending compensation range: ± 1 to ± 10mm (settable)
    5. Location amending way: servo motor controlled by computer feedback signal
  9. Cold Cutter Device
    1. Structure: frame type anti-collision device, independent cutter pressure adjusting, flying knife device
  10. Additional Units and Features
    1. AC motor for unwinding and conveying
    2. Inclined sealing units for bottom square making
    3. Rotary bag conveying device driven by servo motor
    4. Soft loop handle inserting and sealing unit
    5. Pressing and cooling unit for soft loop handle sealing areas driven by air cylinders
    6. Bag drawing and collecting device
  11. Main Configuration
    1. Controller PLC quantity: 1
    2. Touch screen 7” quantity: 1
    3. Photocell SICK brand quantity: 1
    4. Main conveying bottom sealing 1.5 kW servo motor and driver quantity: 1
    5. Unwinding unit frequency inverter 0.75 kW quantity: 1
    6. AC motor 0.75 kW (with gear box) quantity: 1
    7. Drawing motor 1.5 kW servo motor and driver quantity: 2
  12. Soft Loop Handle Unit
    1. Heat welding 0.75 kW servo motor and driver quantity: 1
    2. Cutter 0.75 kW servo motor and driver quantity: 1
    3. Feeding motor 0.75 kW servo motor and driver quantity: 1
    4. Rotary bag conveying 2 kW servo motor with driver quantity: 1
    5. Film collector bag drawing 0.75 kW servo motor with driver quantity: 1
    6. Bag collector DC motor quantity: 1
  13. Accessories Included
    1. 1 Pipe heater quantity: 1 set
    2. 2 Springs quantity: 10 pieces
    3. 3 Thermocouple quantity: 1 piece
    4. 4 Adjustable spanner (8") quantity: 1 piece
    5. 5 Cross screw driver quantity: 1 piece
    6. 6 Line screw driver quantity: 1 piece
    7. 7 Inner hexagon spanner quantity: 1 set
    8. 8 Oil pot quantity: 1 piece
  14. Packing and Shipping
    1. Requires 1 20 foot container to ship
    2. Machine will be packed on wooden pallet, 5800mm x 2300mm
    3. Total weight when packed: 2800 kg
