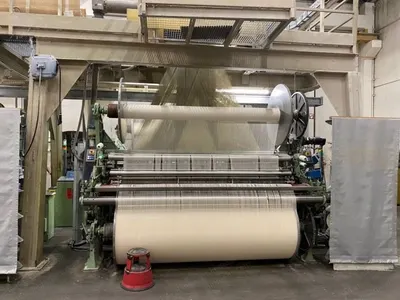

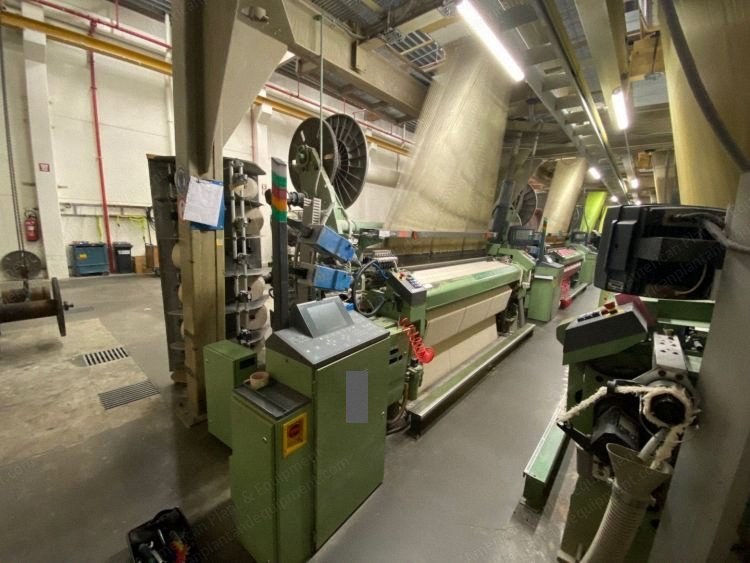

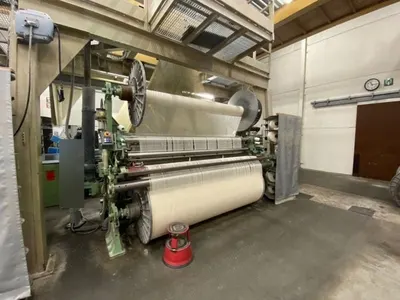

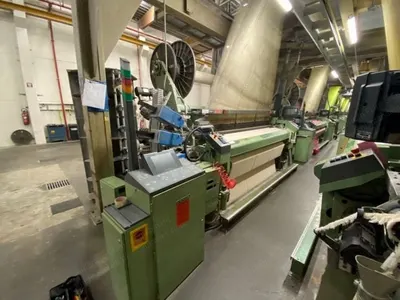

Dornier, LTNF-6/J-260, 2000, Air-Jet Terry Weaving Loom, 2600mm Working Width, 6 Colors, Staubli LX1600B Jacquard

Dornier, LTNF-6/J-260, 2000, Air-Jet Terry Weaving Loom, 2600mm Working Width, 6 Colors, Staubli LX1600B Jacquard

Description

  1. Overview
    1. Dornier air-jet terry weaving loom
    2. Category: terry looms
    3. Brand: Dornier
    4. Type: LTNF-6/J-260
    5. Year: 2000
    6. Working width: 2600 mm
  2. Specifications
    1. 6 weft colors
    2. Ground and upper beam construction
    3. Electronic take up and let off motors

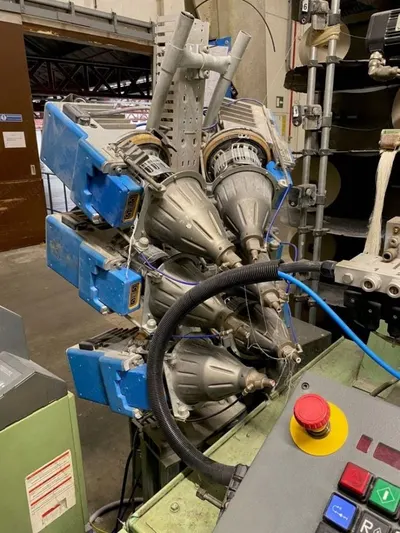

    4. 6 weft accumulators Roj Super Elf with balloon breaker
    5. Feeder stand

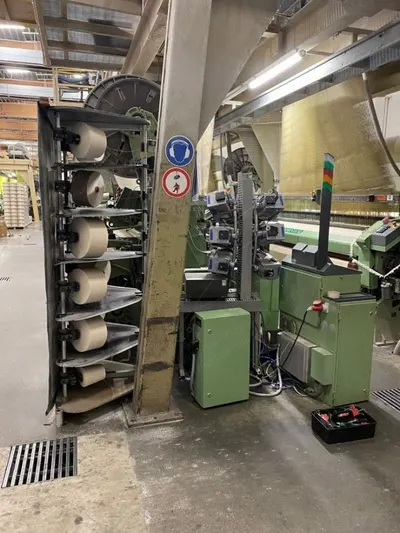

    6. Creel for each 2 x 6 bobbins
    7. 2 warp tension rolls
    8. Double warp detection Grob with each 2 warp stop detection bars
    9. Motorized waste cutter R+L
    10. 1.5 pile beam Ø 1250 mm
    11. 1.5 ground beam Ø 1000 mm
    12. Heddles and droppers as on the looms
    13. Trash can
    14. AT2-panel
    15. Step
    16. Cloth roll driving system with 1 cloth roll with pins
  3. Jacquard Equipment

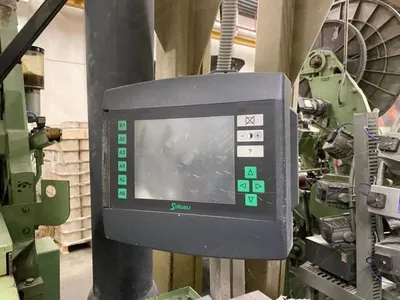

    1. With jacquard Staubli type LX1600B format 3072 year 2000
    2. Hooks installed 1792
    3. Cardan-axe
    4. Harness
