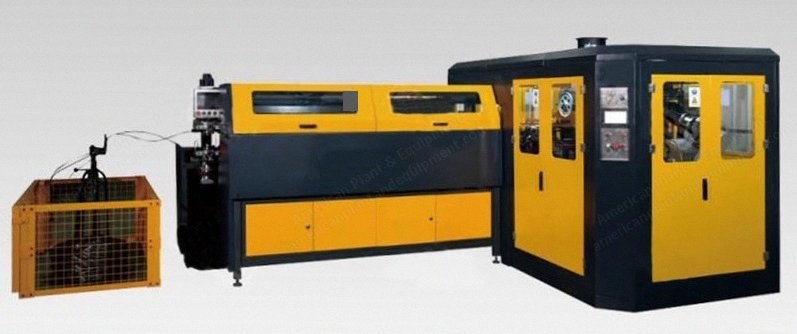

NovaStar, SB262, Automatic Bonnell Spring Bed Unit Transfer Line, 38400 pcs/8h, 2000mm Max Width (New)

NovaStar, SB262, Automatic Bonnell Spring Bed Unit Transfer Line, 38400 pcs/8h, 2000mm Max Width

Description

  1. Item 001: Automatic Bonnell Spring Bed Unit Transfer Line
    1. Quality products with stable performance.
    2. Advanced system with operation easily and conveniently.
    3. Space between coils adjusted accurately and flexibly by servo motor.
    4. High grade protection with hommizat.
    5. Production capacity: 38400 pieces/8 hours.
    6. Spring type: Bonnell.
    7. Steel wire diameter: 1.9 to 2.4 mm.
    8. Spring outside diameter: φ65 to 92 mm.
    9. Center coil outside diameter: φ32 to 55 mm.
    10. Spring height: 80 to 190 mm.
    11. 4 turns: 80 to 120 mm.
    12. 5 turns: 120 to 150 mm.
    13. 6 turns: 140 to 190 mm.
    14. Standard: 5 turns.
    15. Helical wire diameter: 1.3 to 1.5 mm.
    16. Max spring unit width: 2000 mm.
    17. Working temperature: 0 to 40 °C.
    18. Wire basket capacity: ≥1000 kg.
    19. Total power: 30 kW.
    20. Required voltage: 220 V, 3P, 60 or 50 Hz.
    21. Total weight: 5000 kg.
  2. Item 002: Digital Control Automatic Coiler
    1. Digital control automatic coiler is totally digital controlled to produce spring.
    2. With advanced controlling software, you can adjust spring diameter, spring height, number of turns and feeding wire length.
    3. Cancel the traditional cam group, can produce different specification spring more conveniently and adjust the spring shape precisely.
    4. High quality required spring can be produced.
    5. Coil type: Bonnell.
    6. Output: 80 pcs/mins.
    7. Steel wire diameter: 1.9 to 2.4 mm.
    8. Coil outside diameter: 62 to 95 mm.
    9. Spring height: 80 to 190 mm.
    10. Spring coils (turn): 4 to 7.
    11. Main diver power: 5.3 kW.
    12. Swift frame power: 2.2 kW.
    13. Heat treatment: 15 kVA.
    14. Power requirements: 3xAC 220 / 50 or 60 Hz.
    15. Weight: 2650 kg.
  3. Item 003: Automatic Spring Units Assembler
    1. It can account the spring rows automatically.
    2. It can pull out the inner-spring units automatically after finishing the enactment of the rows.
    3. The spring rows can be enacted by the computer.
    4. Economy: the machine operates without compressed air, maintenance and spare parts wear is kept to a minimum.
    5. Production speed can be adapted to the quality of wire.
    6. High flexibility: the assembly machine produces various types of spring units using springs with different diameter, wire thickness and height.
    7. The number of lines can be varied without moving the unused holdfasts.
    8. Quality: the helix closing rings on both ends are very near to the springs.
    9. Extremely precise, electronic controlled helix stop guarantees a perfect closing.
    10. Output: 24000 springs/8 hours (depends on the operator).
    11. Coil type: Bonnell.
    12. Steel wire diameter: 1.9 to 2.4 mm.
    13. Spring height: 80 to 190 mm.
    14. Helical wire diameter: 1.3 to 1.5 mm.
    15. Max spring unit width: 2000 mm.
    16. Total power: 4 kW.
    17. Power requirement: 3xAC 220/50 or 60 Hz.
    18. Weight: 980 kg.
