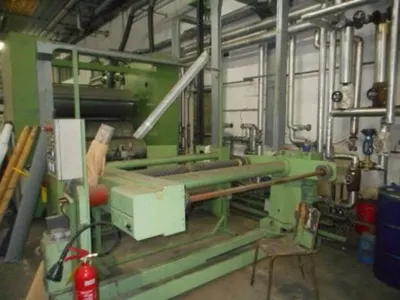

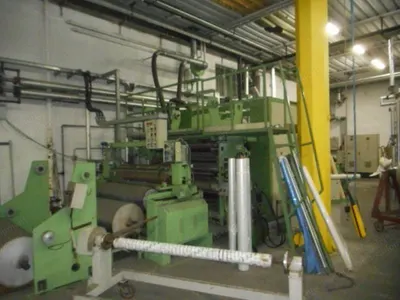

Matex Laminating System, 1999, Working Width 1800mm, Double Unrolling, Oil-Heated Calender

Matex Laminating System, 1999, Working Width 1800mm, Double Unrolling, Oil-Heated Calender

Description

  1. Overview
    1. Automated lamination coupling system for shoe factory fabric
    2. Brand: Matex
    3. Year: 1999
    4. Working width: 1800 mm
  2. Specifications
    1. Introduction with double system of unrolling fabric (revolver)
    2. Coating head also called spreading table (used for dense glues)
    3. It is possible to work without spreading table, only lamination with adhesive film

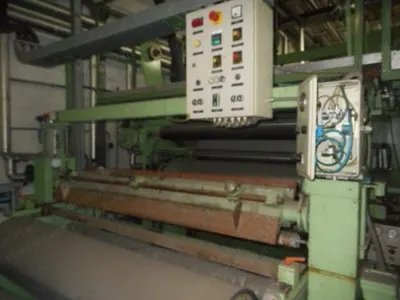

    4. Pressing / coupling calender (oil heated)

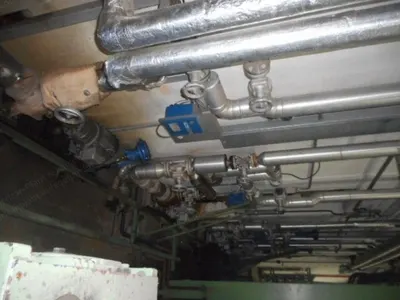

    5. Fixing up/down fabric by tower of cylinders (oil-heated), composed of 6 cylinders connected with mechanical transmission
    6. Final output by means of a double head winding unit (revolver)
