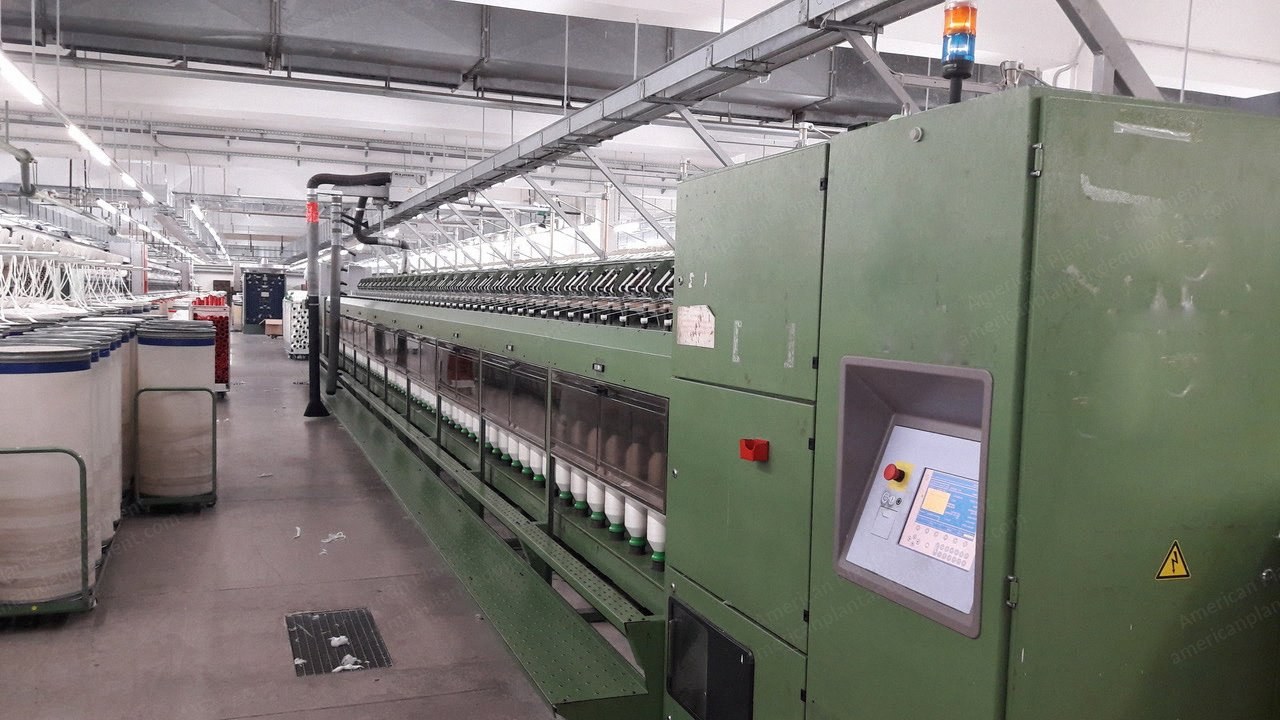

Zinser, 670, 120 Spindles, 16x6" Wing Dimension, 3 Over 3 Cylinders

Zinser, 670, 120 Spindles, 16x6" Wing Dimension, 3 Over 3 Cylinders

Description

  1. Overview
    1. Zinser flyer
    2. Type: 670
    3. Year: 1997, 2001, 2003
    4. 120 spindles
    5. Division: 260 mm
    6. Wing dimension: 16 x 6 in
    7. Spool diameter: up to 150 mm
    8. Can diameter: up to 500 mm
  2. Specifications
    1. Section belt (Nm): 0.14 - 0.26
    2. Roving number: 0.8 - 3.4
    3. Turns per meter: 18 - 60
    4. Total delay: 6 - 13
    5. Fiber length: bis 45 mm (bw type)
    6. Lower roll diameter: 30 - 25.5 - 30
    7. Top roll diameter: 30 - 25 - 30
    8. Tension: 400
    9. Frequency: 50 Hz
  3. Drive and Control
    1. Drive: 4 axes - control with adjustable frequency converter drive
    2. Separate drive for: wings, bobbins, bobbin bank movement, drafting system
  4. Drafting System
    1. Pendulum arm is PK1500, cylinders are 3 over 3
    2. Gate: 3 rich, driven, slide-bearing belt feed rollers
    3. Belt monitoring by light barrier and machine shutdown at belt breakage and end of belt
  5. Extraction and Cleaning
    1. Extraction system: extraction on the drafting system controlled by a frequency converter into a collecting channel
    2. Sohler traveling cleaner per machine (without central suction)
  6. Condition and Availability
    1. Machines are not in production anymore, ready to be shipped
    2. All machines have 120 spindles
    3. Available immediately
