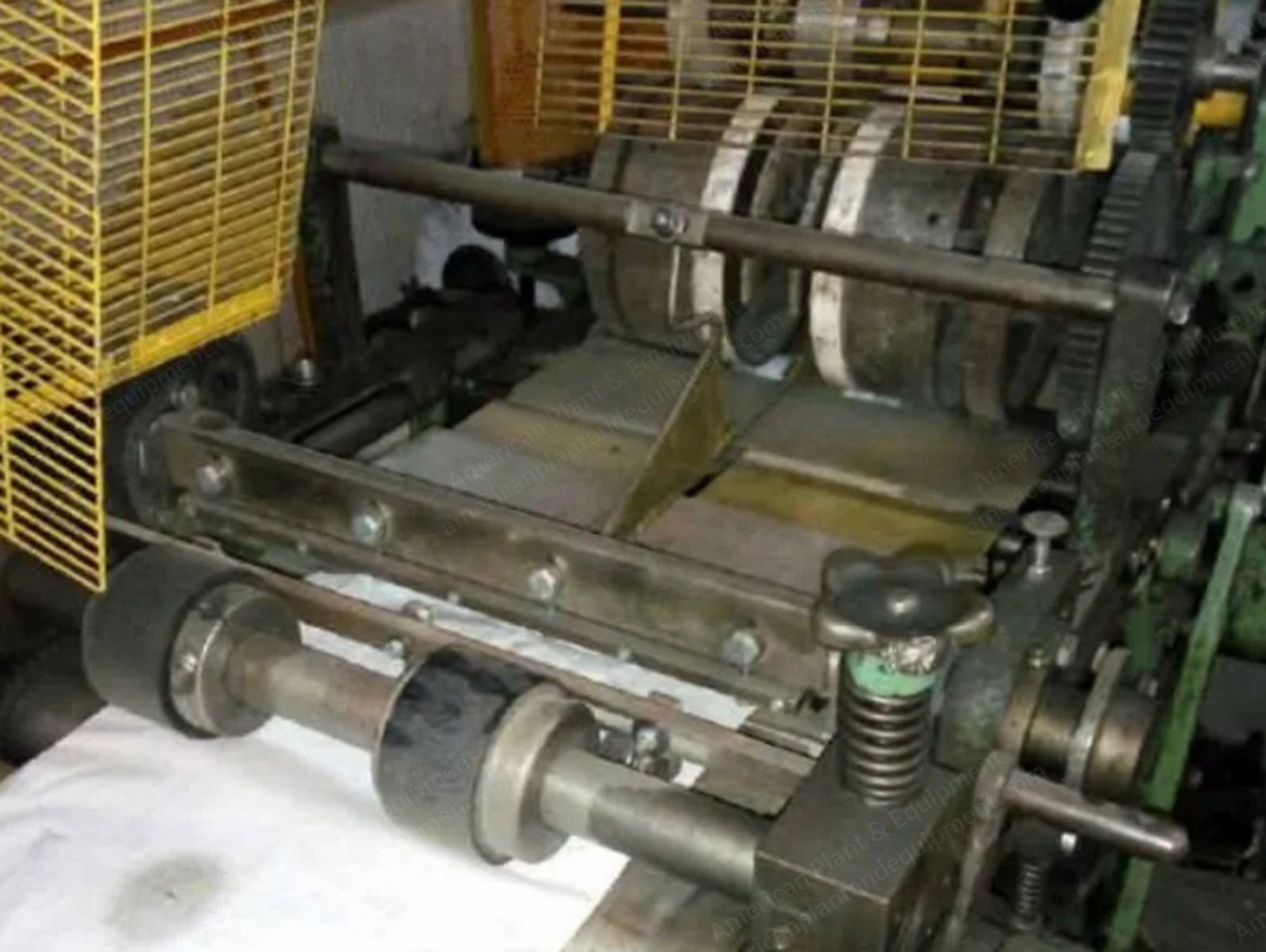

Description Overview Gatermann & Hollmann Olimpia paper sos bagmaking machine Brand: Gatermann & Hollmann Model: Olimpia Year: 1960 Type of bag: cross bottom/sos bag Machine can be seen in production Available from: now Specifications Min-max bag width: 200 to 350 mm Min-max cut off length: 340 to 570 mm Min-max bottom width: 90 to 130 mm Maximum number of cycles: 60 cycles/minute Materials: paper 50 to 120 gsm Maximum unwind width: 1000 mm Photocell: yes Bottom patch unit: yes Inline printing unit: yes, cmf, 6 colors, width 800 mm Aniloxes: 8 Cylinders: 2x420; 1x440; 2x470; 6x500; 4x530; 3x560; 4x580; 4x650; 6x700; 3x750 1 color stamp printer for bottom patch Included Tools bag width: 200, 250, 270, 280, 300, 310, 350 Tool bag length – gear: 420, 440, 470, 500, 530, 560, 580, 610, 650, 660 and 700 6cl cmf printer which can also be used as a stand alone printer for roll to roll printing Special Characteristics Possibility of using only printer roll-to-roll This machine can produce paper cross bottom (sos) bags The machine is from 1960 but still running very well and can be seen in production The bagmaking machine can produce bags up to 60 bags/minute with max dimensions of 350 mm (width) and 570 mm (length) With extra reinforcement for the bottom
