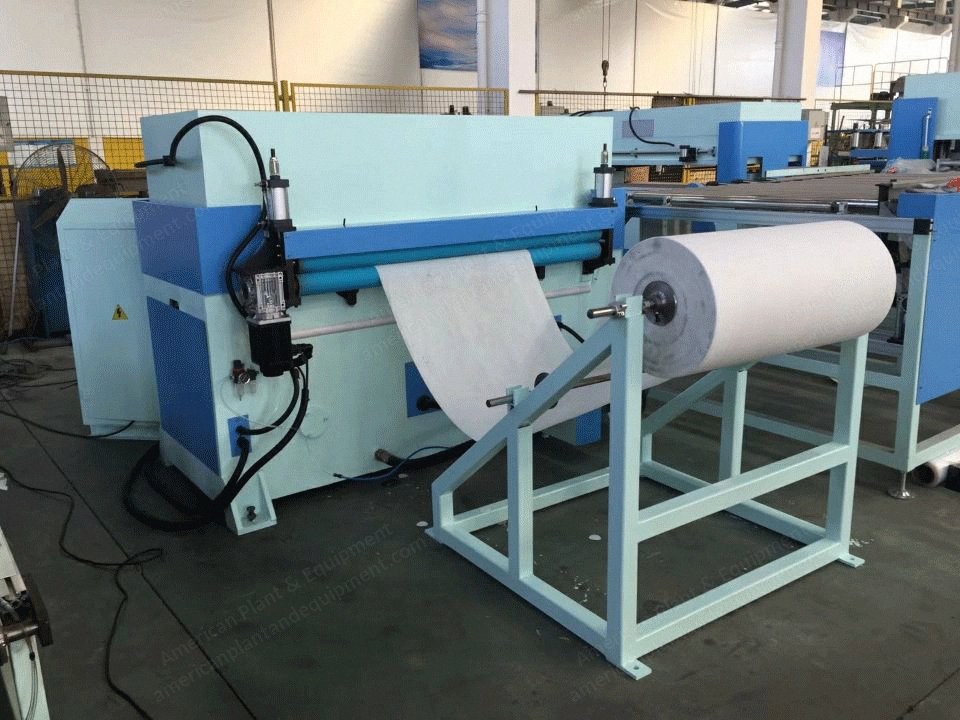

Automatic rubber roller feeding PLC control die cutting machine
Machine name: automatic rubber roller feeding PLC control die cutting machine
Specifications
Maximum cutting force: 40 tons
Daylight: 170 mm
Feeding roller diameter: 90 mm
Range between the working table: 60 to 170 mm
Size of upper beam: 1500 x 600 mm
Size of lower worktable: 1500 x 610 mm
Motor power: 3 kW
Gross weight: about 2800 kg
Packed dimensions: 2400 x 1500 x 1600 mm
Operation
With manual operated cutting machine, the worker can move the cutting mold by hand after cutting; the working mode is moving mold one time and cut one time, the cutting mold is not bigger, repeating the action one by one.
With automatic feeding and cutting machine with rubber roller feeding system, the cutting mold should be attached onto the upper beam and the cutting mold cannot move by hand; this means you need to use bigger cutting molds and cut finished products many pieces one time.

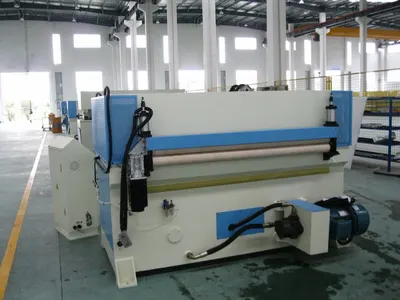

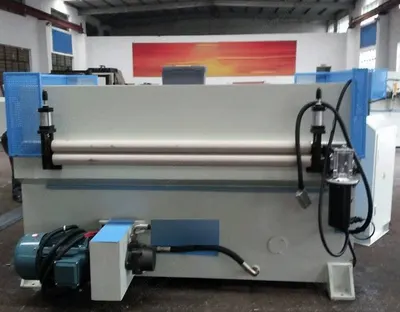

Rubber rollers are at the rear of the machine; when they rotate they will feed the foam forward.
