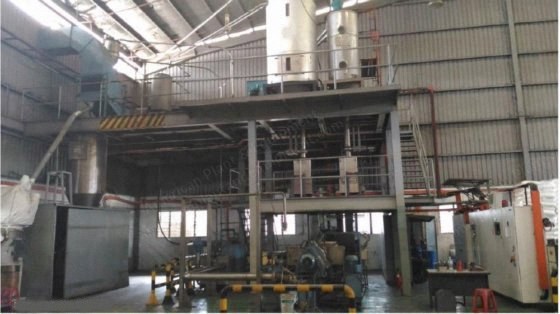

Werner & Pfleiderer, ZSK 92, 1997, Twin Screw Extruder, 36:1 L/D, 525 HP

Werner & Pfleiderer, ZSK 92, 1997, Twin Screw Extruder, 36:1 L/D, 525 HP

Description

  1. Overview

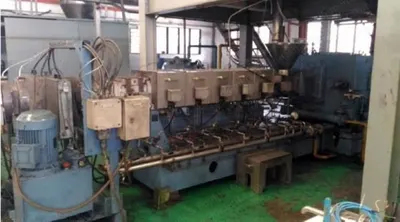

    1. Werner & Pfleiderer twin screw extruder
    2. Model ZSK 92, 36:1 L/D
    3. Co-rotating, 9 housing sections, electrically heated, water cooled
    4. Max screw speed is 400 rpm via a gearbox by a 525 hp/350 kW-415 volt/50 cycle/3 phase motor
    5. New year 1997
    6. Previously used in a masterbatch application
  2. Specifications
    1. Model ZSK 92
    2. 36:1 L/D ratio
    3. Co-rotating twin screws
    4. 9 housing sections
    5. Electrically heated, water cooled
    6. Max screw speed: 400 rpm
    7. Motor: 525 hp/350 kW, 415 volt, 50 cycle, 3 phase
  3. Included Equipment
    1. Support frame
    2. (3) Brabender loss in weight feeding system consisting of (2) Brabender pellet loss in weight feeder for up to 2200 lbs/hr (1000 kg/hr) and (1) Brabender liquid loss in weight feeder for up to 44 lbs/hr (20 kg/hr)
    3. (1) Gneuss screen changer

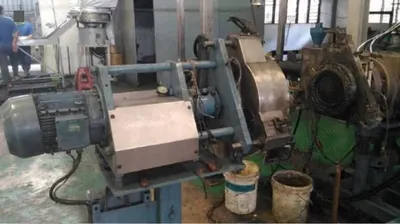

    4. (1) Werner & Pfleiderer watering pelletizer, type WRG 200 including pellet dewatering and drying unit
    5. (1) Somos pellet drier by Somos
    6. (1) Pellet classifier
    7. (1) Sweco sifter/separator
    8. (1) Control panel and further infrastructure
  4. Condition
    1. Previously used in a masterbatch application
    2. No side feeder included
