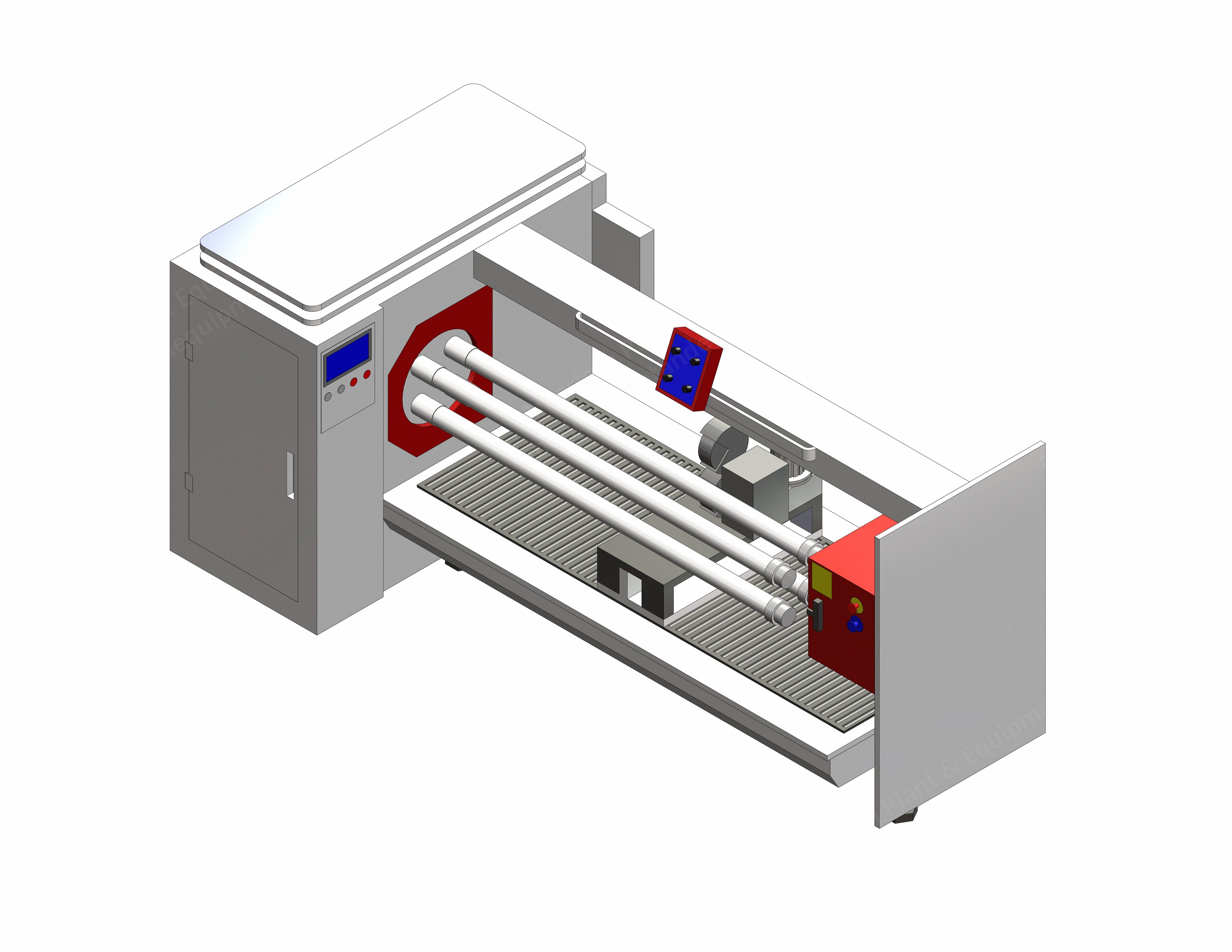

Description Overview Automatic cutting machinery for tape logs 4 shafts 2 blades Four shafts rotate around to meet the two blades 2 shafts can be unloaded and reloaded while the other 2 shafts are being cut Application: suitable for various tape such as PVC, masking, bandages, double side, OPP packaging and foam tapes, etc Specifications Roller width: 1800mm Cutting width: 2mm to 1700mm Paper core I.D.: 1 inch (changeable) Cutting diameter: maximum 160mm Length x width x height: 3140 x 1550 x 1450mm Weight: net weight 2100 kg, gross weight 2300 kg Total power: 6.0 kW Standard Accessories Main motor: A.C 5.0 HP inverter control: 1 set Width setting: servo motor driven: 1 set Cutter stand: ball spline: 2 pieces Ball screw: 1 piece Cooling system: automatic water supply: 1 set Shaft turret change: turret change over by air auto control: 1 set Cutting shaft: for paper core I.D. 1" (changeable): 4 pieces Shaft sleeve: PE tube 1 inch (spare): 10 pieces Circular blade: 2mm x 1” I.D. x 180mm O.D. (C-type): 2 pieces Knife angle adjustment: angle change by servo motor driven +/- 8 degree: 1 set Knife motor: 1 HP 1/10 turbo motor with inverter control: 1 set Cutter guard: connected type movable small plate: 1 set Shaft ending rack: automatic control: 1 set Cutting system: servo motor driven: 1 set Maintenance kit: tools & instruction: 1 set Packed Weight and Dimensions Packed weight: 2000kg (including the wood packaging) Machine itself weighs: 1666kg Packed dimensions: 3500mm (length) x 2000mm (width) x 1700mm (height)
