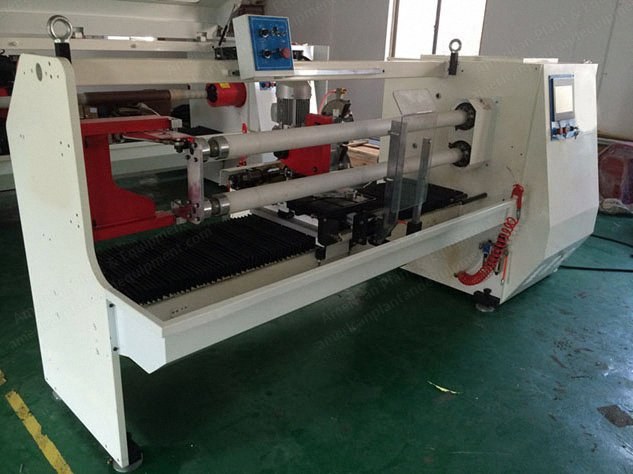

Description Overview Automatic cutting machinery for tape Double blades for double shafts Application: suitable for various tape such as pvc, masking, double side, opp packaging and foam tapes, etc Standard Accessories Main motor: a.c 3 hp x 6p inverter control: 1 set Width setting: servo motor driven: 1 set 20 memory sets for the cutting width: 1 set Automatic error detective system: 1 set Cutter stand: ball spline: 2 pcs Ball screw: 1 pc Cooling system: automatic water supply: 1 set Cutting shaft: for paper core i.d. 3”: 2 pcs Shaft sleeve: pe tube 75.4mm (spare): 10 pcs Circular blade: 2mm x 1” i.d. x 180mm o.d (c-type): 2 pcs Knife angle adjustment: angle change by servo motor driven +/- 8 degree: 1 set Knife motor: 1 hp 1/10 turbo motor with inverter control: 1 set Cutter guard: connected type movable small plate: 1 set Shaft ending rack: automatic control: 1 set Cutting system: servo motor driven: 1 set Maintenance kit: tools & instruction: 1 set Electrical Section Control system: plc - 3 servo motor system: 1 set Display mode: touch panel screen: 1 set Length x width x height: 3350 x 1450 x 1500mm Weight: n.w 1900kg g.w 2100kg Total power: 5.0kw
