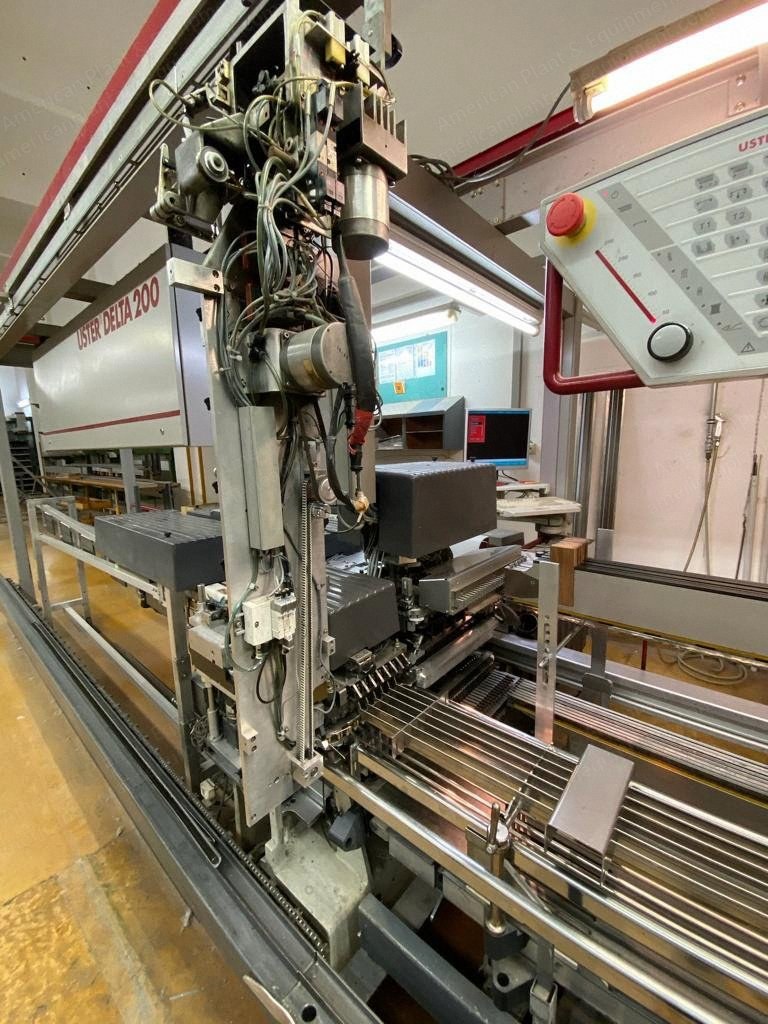

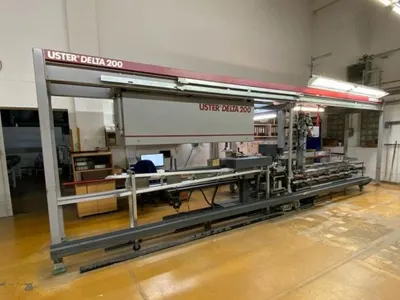

Description Overview Uster Delta 200 drawing-in machine Year: 1991 Voltage: 400 volts, 3 phase, 60 Hz Machine automatically draws threads from warp sheet into drop wires, heald frames, and through the dents of the reed Specifications Base machine support structure for drawing patterns up to 2200 mm reed widths Maximum 28 heald frames Adjustable to draw most 11", 13", and 15" heald frames of J or C type, if not showing signs of severe wear Adjustable for most open and closed type drop wires depending on correct wear Included Equipment One drawing-in truck for loading heald frames and drop wires during drawing process One yarn back frame, 2200 mm, for stretching the warp ends in a sheet Not Included No warp truck (dolly) is supplied for movement of the warp in the drawing-in machine Condition and Availability Available immediately
