Giudici, TG30 FA, 84 Positions, Double Oven, Automatic Doffing, 10 to 300 Denier

Giudici, TG30 FA, 84 Positions, Double Oven, Automatic Doffing, 10 to 300 Denier

Description

  1. Overview
    1. Giudici friction texturizing machine model TG30 FA
    2. Double oven and automatic doffing for polyester yarns of whole range of textile titles

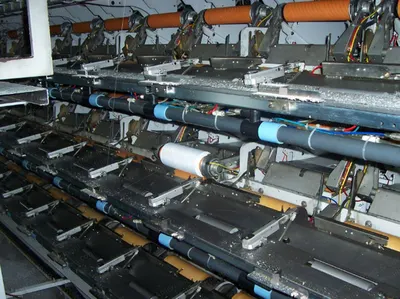

    3. 84 positions distributed on 3 floors of collection
    4. 84 Temco friction spindles model FTS525 ME open/closed
    5. Fast change of torsion, friction and driving disks in ceramic
    6. Disk diameter 52 mm and thickness 9 mm
    7. Shaft diameter 14.5 mm
    8. Combination disks 1/8/1
  2. Machine Equipment
    1. Extra roller for the control of tension
    2. Air interlacing device (regulator of pressure, piping, valves and quick coupling)
    3. GQS system (Giudici quality system) to control the tension of yarn, integrated with the machine
  3. Specifications
    1. Positions: 84 one side only
    2. Section gauge: 1700 mm
    3. Floors of collection: 3
    4. Positions per section: 12
    5. Titles: usually from 10 to 300 denier

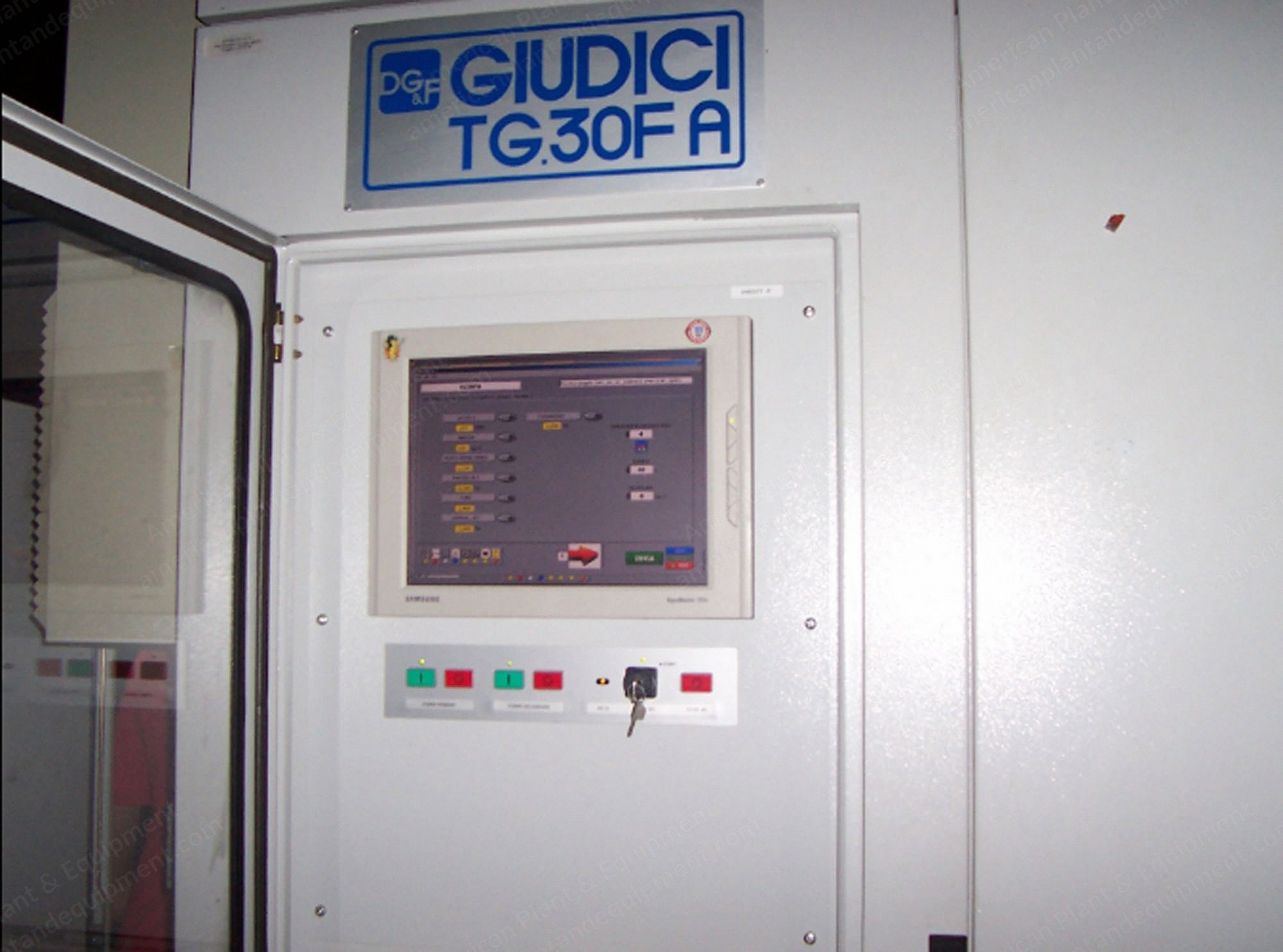

  4. Computerized Control System
    1. With touch screen central computer that controls the automatic doffing and allows the programming and displaying of several parameters such as: basic speed, drawing ratio, speed of spindles, collection speed, oiling thread, weight spools of collection, temperature of oven
  5. Automatic Doffing System
    1. A pneumatic system for each position keeps out the spools and replaces it with an empty tube, without operator input
    2. Capacity collection spools: 3 plus 1 at work
    3. Capacity collection tubes: 6
  6. Spindles
    1. Temco spindles model FTS 525 ME open/closed, fast change of torsion
    2. Friction and driving disks in ceramic
    3. Diameter 52 mm
    4. Thickness 9 mm
    5. Shaft diameter 14.5 mm
    6. Combination disks 1/8/1
  7. Torsion
    1. Adjustable depending on the characteristics of the yarn
    2. Torsion directions: S or Z or alternate S and Z
  8. Feeding Rollers
    1. Steel feeding rollers diameter 120 mm in contact with roller covered with polyurethane diameter 85 mm
  9. Main Texturizing Oven
    1. Heat insulated oven with electronic regulation
    2. Electronically controlled individual
    3. Fume suction at both ends
    4. Possibility to move it in vertical position to clean
    5. Length of oven 500 mm
    6. Temperature: 240 °C maximum
  10. Secondary Oven
    1. Electric, closed, with the area of temperature regulating
