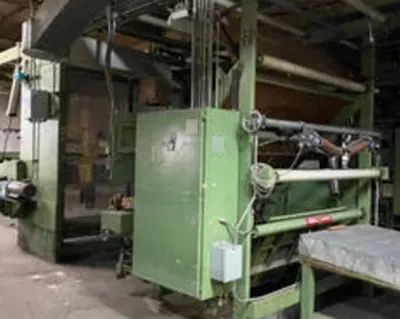

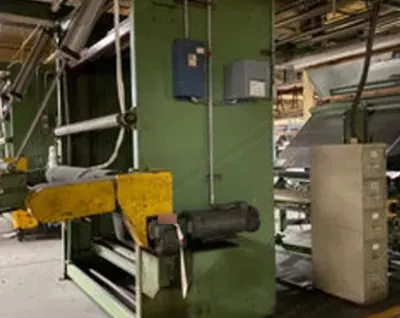

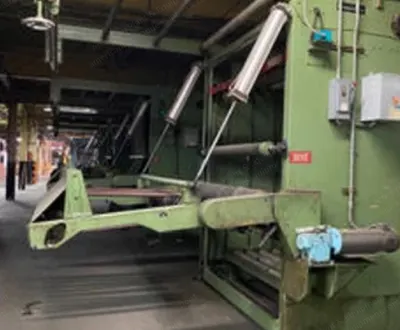

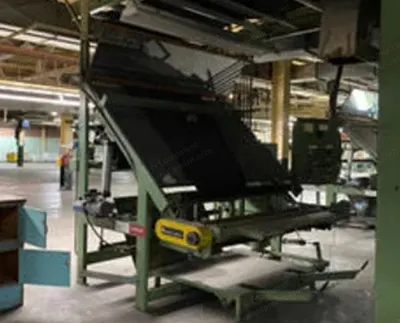

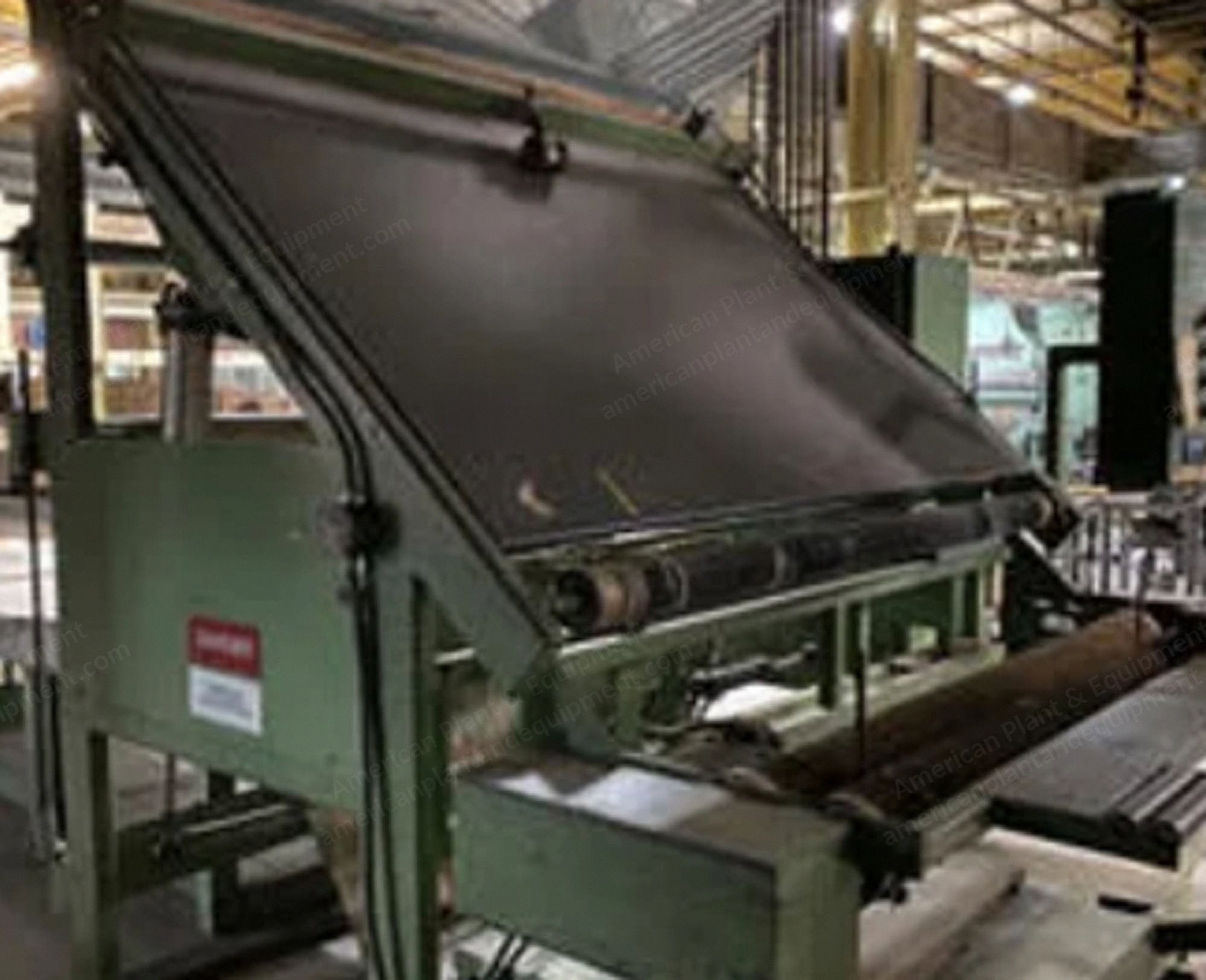

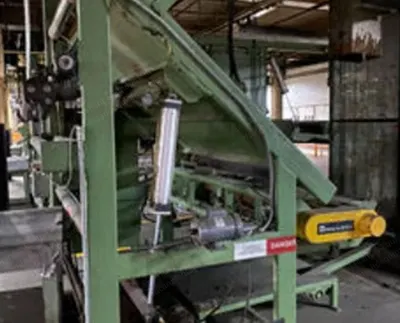

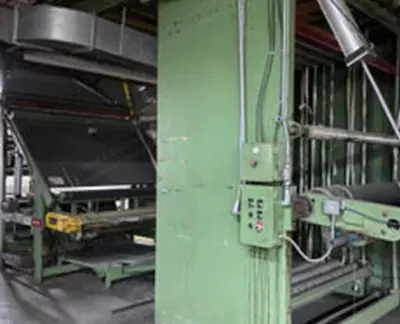

Menzel, 2005, Coating Range, 2600mm Material Width, 2800mm Roller Width, 10 Heat Sections

Menzel, 2005, Coating Range, 2600mm Material Width, 2800mm Roller Width, 10 Heat Sections

Description

  1. Overview
    1. Different methods of production can be realized; machine is designed for coating on a precisely high coating roller or as an air doctor blade.
    2. Equipped with a collision control system.
    3. Available immediately.
  2. Machine Components
    1. Lower frame and coating head with length, beam and knife adjustment.
    2. Coating roller with stripping doctor device (which helps to remove residues from the rear roller).
    3. Brake, paste limitation, paste supply, control panel.
    4. Lacquering device - serves for lacquering the before coated material; consists of a frame, engraved roller, pressure roller, medium basin and medium limitation.
    5. Coating beams adjusted with servo drive controlled via the control panel from which all functions of the machine are centrally controlled.
    6. Coating knives: adjustable.
    7. Dryer - 10 heat sections and a cooling section, 2 sections each are combined in one temperature zone.
    8. Cooling section: 2 fresh air ventilator.

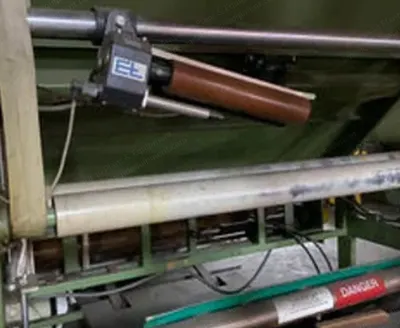

    9. Mahlo coating thickness verifier system, entry and exit.
    10. 1 preheating unit for fabric, run with hot water.
    11. Heat exchanger and transfer by H.E.A.T. Inc, model KM550-80-483, 80 kW, max. temp. 550 F, max. press. 75 psig.
  3. Specifications
    1. Year: 2005.
    2. Roller width: 2800 mm.
    3. Coating roller with doctor stripping device.
    4. Coating beam equipped with 2 coating knives.
    5. Material width: 2600 mm.
    6. Speed: 3-35 m/min.
    7. Burner capacity: zone 1 (inlet) 150 kW, zones 2-5 100 kW.
    8. Voltage: 3x 480 V ac, +/- 10%.
    9. Frequency: 60 Hz.
    10. Control voltage: 24 V dc.
    11. Compressed air: 6 bar.
