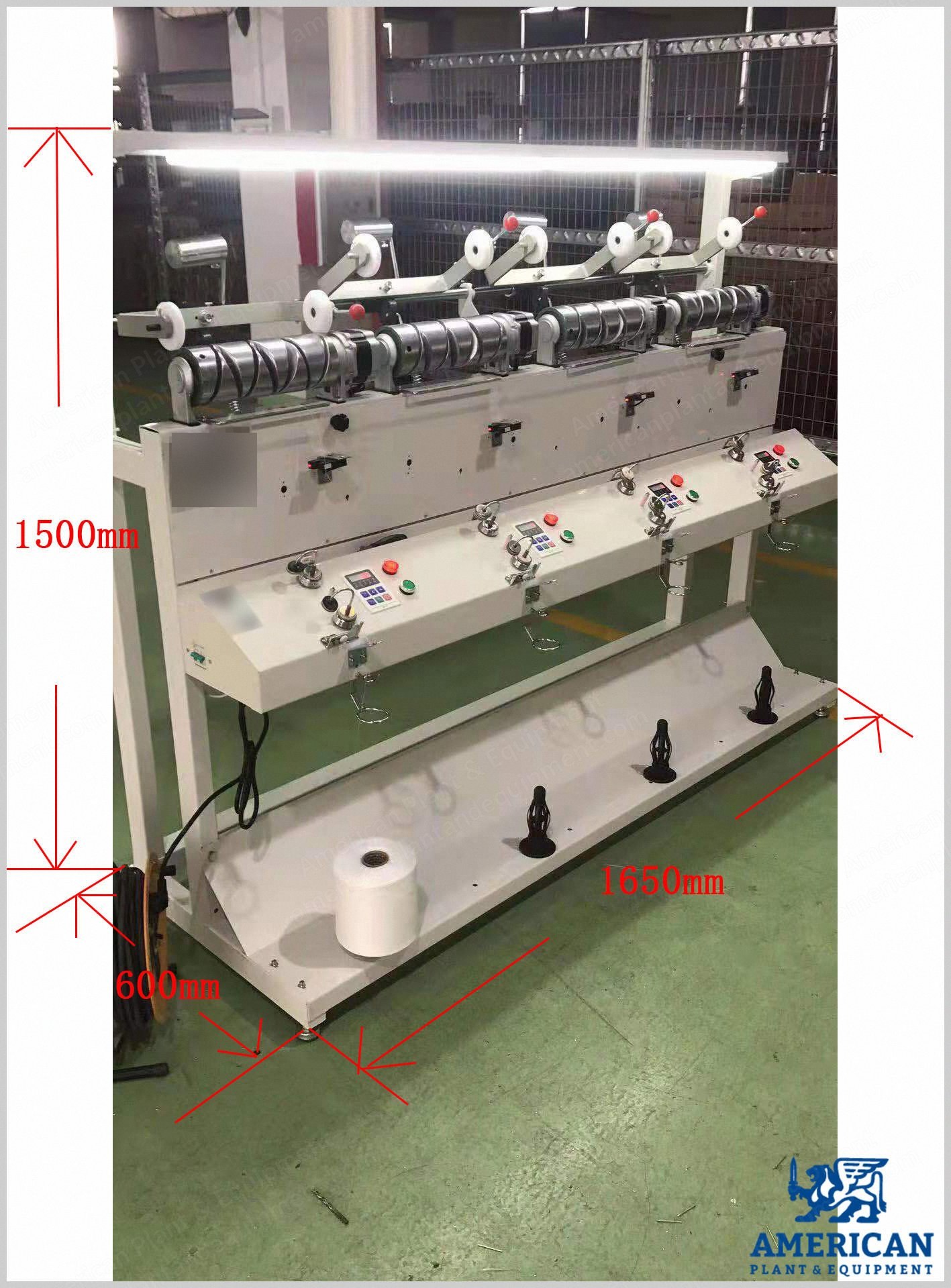

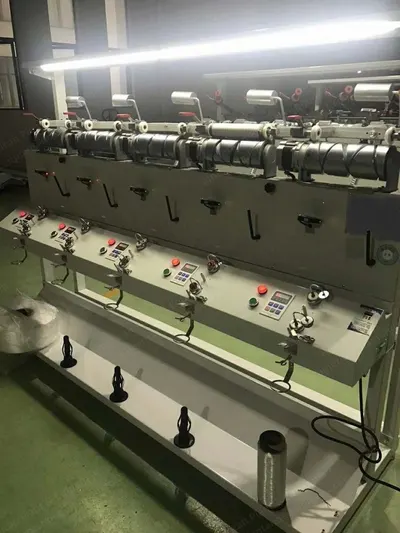

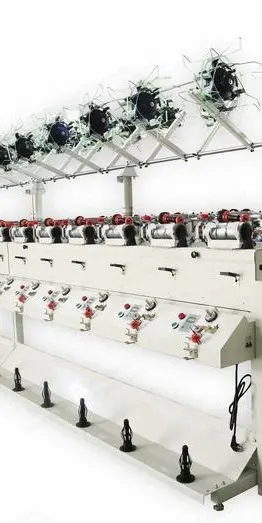

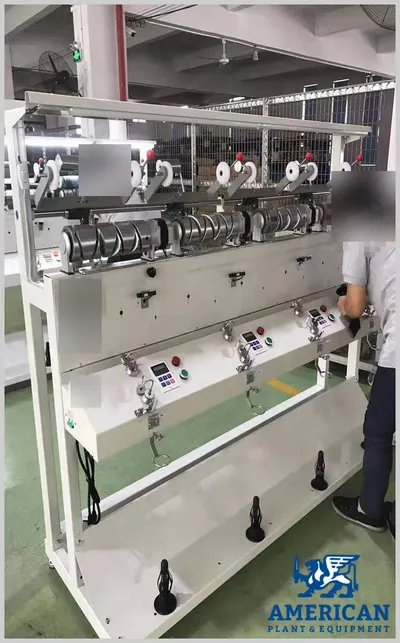

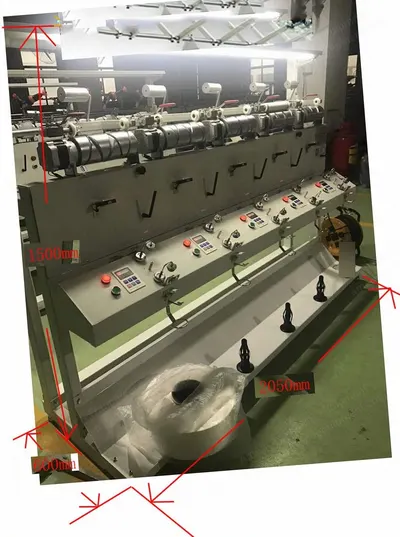

Description Overview Winder used in chemical fiber, cotton yarn, yarn, and low stretch yarn for winding into a cone or a cylinder for the next process. Can make 3 kg to 4 kg yarn of bobbin with good forming and without the phenomenon of edge collapse. Type to alleviate the labor intensity of the process, uses high speed production. Suitable for hank yarn to be changed into yarn or cylinder and after dyeing. Specifications Positions: 4 Bobbin size: 230 mm Traverse: 200 mm Take-up package: cylindrical; cone Yarn sensor: electronic yarn break stop Structure: single-sided machine Power supply: three-phase 220 volts or 380 volts, 50 or 60 Hz (as per customer) Drive: single position independent AC motor drive Power consumption: 0.18 kW per position The shaping bobbins: the circular column (0°)/cone; 4° 20, 5° 57, 9° 15 cone Drum diameter: a maximum of 200 and 290 mm Yarn speed: 300 to 1000 meters per minute Anti overlapping electronic device: inverter control Length setting device: programmable logic controller (PLC) control/display the length Tension device: rotate self-cleaning tensioner and wax each position Mechanical cleaning device: fine-tuning machine cleaning knife for each position Yarn break automatic stop device: electronic break stop Speed regulating device: frequency control of motor speed Soft package edge traverse device: mechanical/suitable for soft type winding machine Electronic yarn cleaner: optional Air splicer: optional Blowing and suction cleaner: optional Lighting system: lamp Dimensions: 2050 x 600 x 1500 mm 5 positions per set customized into 4 positions Zinc alloy drum With oiled box/oiled tank/wax device Configuration: 4 positions Condition Hank creel is not installed during shipment, it is only placed in a wooden box to reduce the volume.
