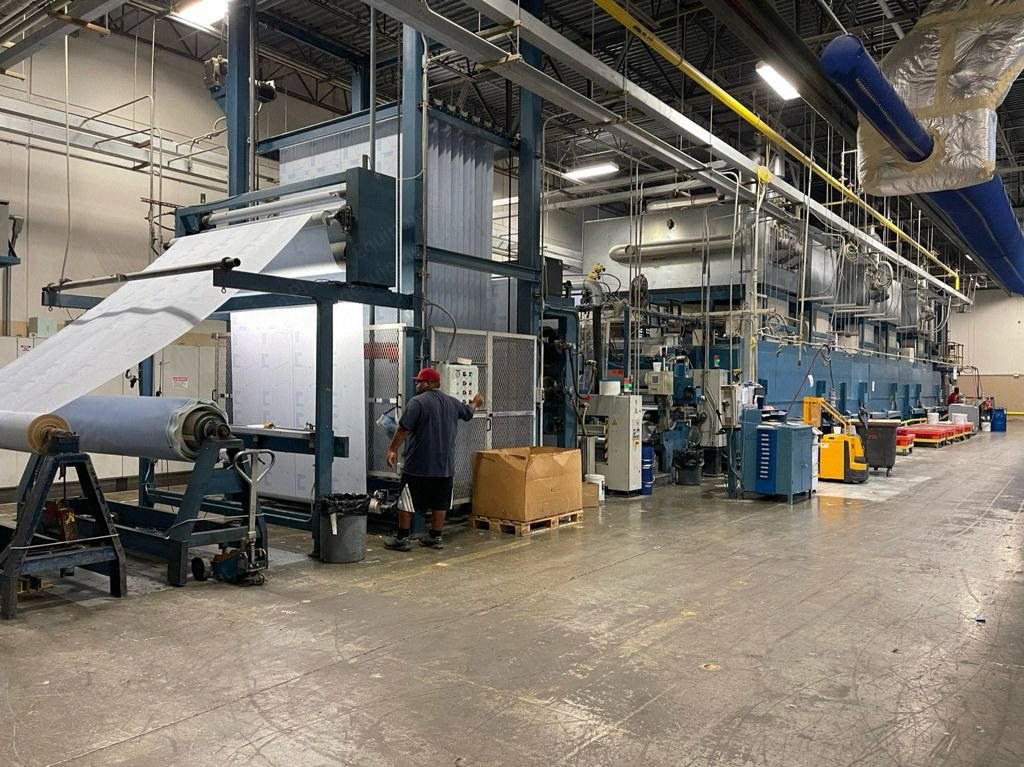

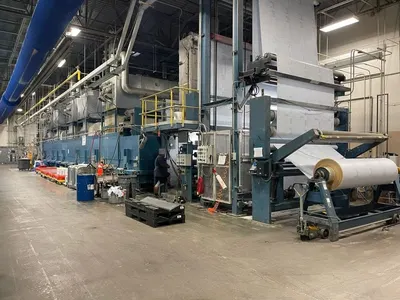

Menzel, Coating Range, 2005, 2600mm Working Width, 35 m/min, 10 Heat Sections

Menzel, Coating Range, 2005, 2600mm Working Width, 35 m/min, 10 Heat Sections

Description

  1. Overview
    1. Machine is designed for coating on a precisely high coating roller or as an air doctor blade, enabling different methods of production.
    2. Equipped with a collision control system.
    3. Includes a lacquering device for lacquering the before coated material.
    4. Coating beams adjusted with servo drive controlled via the control panel from which all functions of the machine are centrally controlled.
    5. Coating knives are adjustable.
    6. Available immediately.
  2. Machine Components
    1. Lower frame and coating head with length, beam and knife adjustment.
    2. Coating roller with stripping doctor device (which helps to remove residues from the rear roller).
    3. Brake, paste limitation, paste supply, control panel.
    4. Lacquering device consists of a frame, engraved roller, pressure roller, medium basin and medium limitation.
    5. Dryer with 10 heat sections and a cooling section; 2 sections each are combined in one temperature zone.
    6. Cooling section with 2 fresh air ventilators.
    7. Mahlo coating thickness verifier system, entry and exit.
    8. 1 preheating unit for fabric, run with hot water.
    9. Heat exchanger and transfer by H.E.A.T. Inc, model KM550-80-483, 80 kW, maximum temperature 550 f, maximum pressure 75 psig.
  3. Specifications
    1. Year: 2005.
    2. Roller width: 2800 mm.
    3. Coating roller with doctor stripping device.
    4. Coating beam equipped with 2 coating knives.
    5. Material width: 2600 mm.
    6. Speed: 3 to 35 meters per minute.
    7. Burner capacity: zone 1 (inlet) 150 kW, zones 2-5 100 kW.
    8. Voltage: 3x 480 V AC, +/- 10%.
    9. Frequency: 60 Hz.
    10. Control voltage: 24 V DC.
    11. Compressed air: 6 bar.
