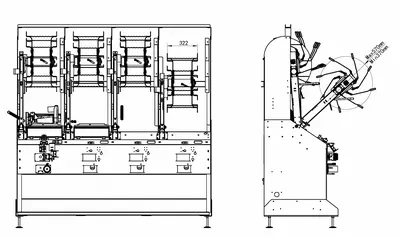

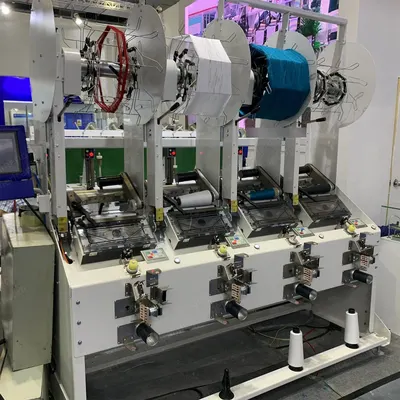

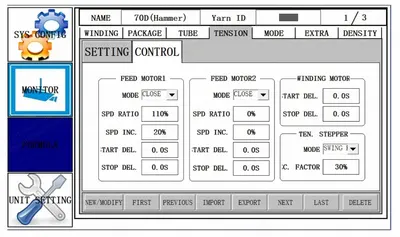

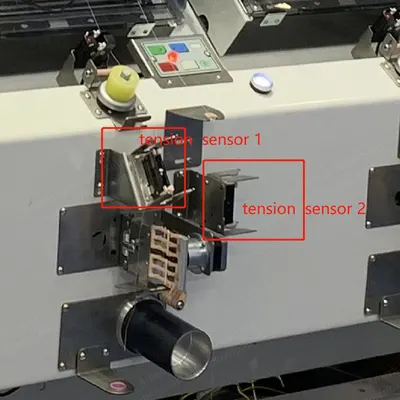

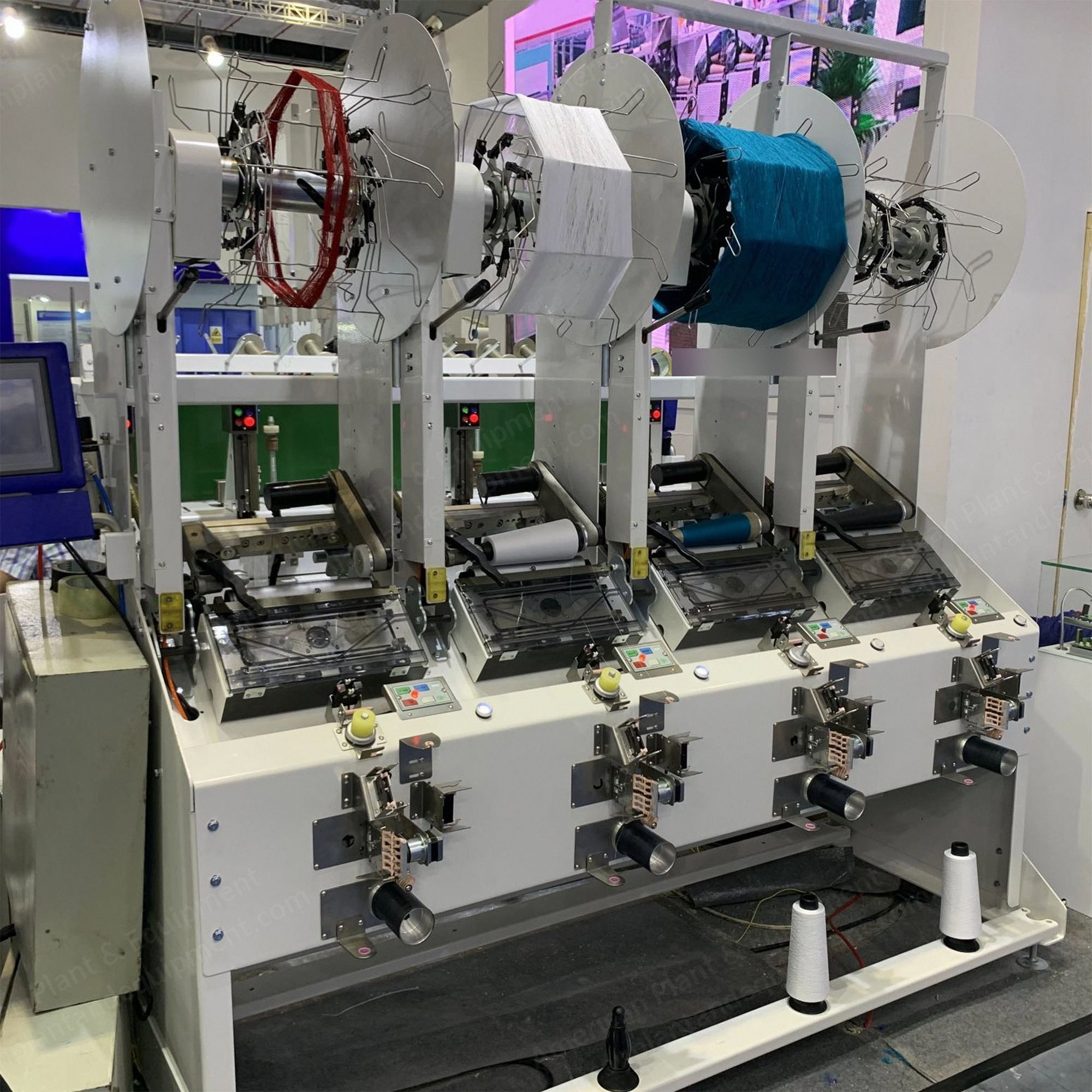

Description Overview Hank to cone winder 4 positions Electronic yarn guide and unwinding Specifications Machine structure: single sided, single deck, 4 positions per section Spindle gauge: 440mm (specify when ordering) Type of winding: digital or precision winding Linear speed: up to 1100 meters per minute (depending on the process parameters) Type of tension: electronic tension, electronic gate tension, heavy hammertension (optional) Take-up tubes: cylindrical or conical cone Traverse length: 130mm to 250mm (it can be changed according to actual needs) Package shape: straight edge or incline edge shape (the angle can be adjustable) Rated power: 400 watts per spindle Actual consumption: 25% to 50% of rated power (depends on the process parameters) Waxing device or oil device: optional as per customer requirement Cleaner: optional as per customer requirement Blower: optional as per customer requirement Air splicer: optional as per customer requirement Power supply: as per customer Dimensions And Weight Machine head dimensions: length 755mm x width 810mm x height 1467mm One section (4 positions): length 1780mm x width 810mm x height 2139mm One section (4 spindles) dimensions including machine head: length 1780mm / 2335mm x width 810mm x height 2139mm Floor space: length 99.8 inches (8.31 feet) x width 31.8 inches (2.6 feet) x height 84 inches (7 feet) Shipping weight: 900 kgs Functions Yarn goes through the yarn hook to the overfeeding device The electronic gate tensioner automatically tensions the yarn Then the yarn goes through the tension sensor and yarn break sensor Yarn goes through electronic yarn guide motor to the winding motor
