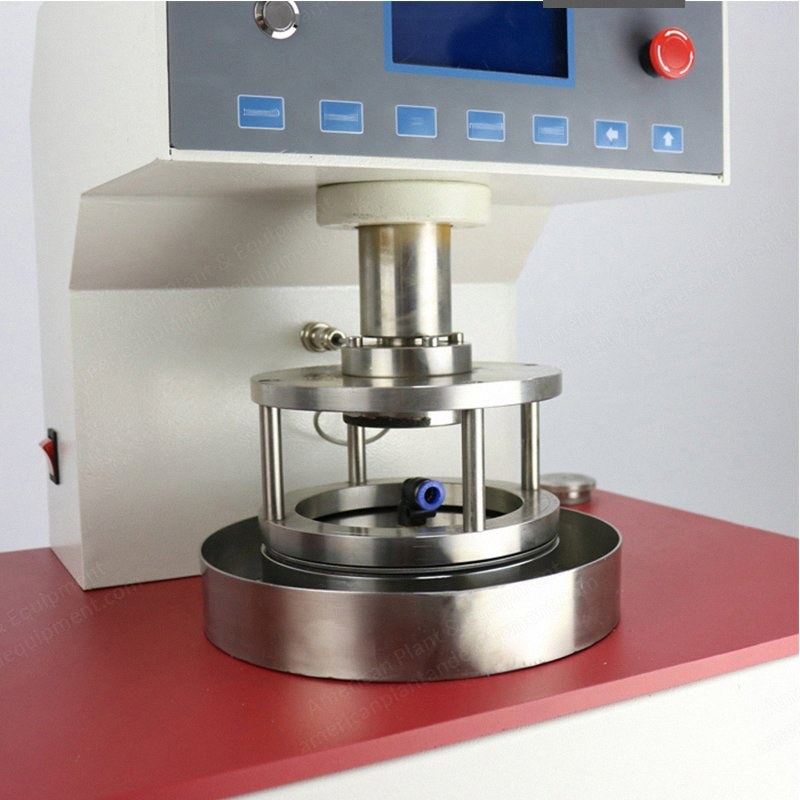

NovaStar, GL302, Digital Hydrostatic Head Tester, 500Pa-200kPa, AC 220V (New)

NovaStar, GL302, Digital Hydrostatic Head Tester, 500Pa-200kPa, AC 220V

Description

  1. Overview
    1. Digital hydrostatic head tester
    2. Used to test the waterproof properties of fabrics through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile.
  2. Key Specifications
    1. Testing range: 500pa-200kpa
    2. Water pressure increase rate: 1kpa-30kpa
    3. Accuracy: 0.2% f.s
    4. Specimen test area: 1000mm2, or 78mm2 (option)
    5. Testing unit: pa, mmhg, cmh2o
    6. Power supply: ac 220v 50/60hz
  3. Testing Modes
    1. P. rise
    2. Const p & timing
    3. Const p & time
    4. Water penetration
    5. Fatigue
  4. Dimensions and Weight
    1. Dimension: 600 x 450 x 640mm (l x w x h)
    2. Weight: 60 kg
    3. Packed weight: 80 kgs
    4. Packed dimensions: 660 x 480 x 700mm
