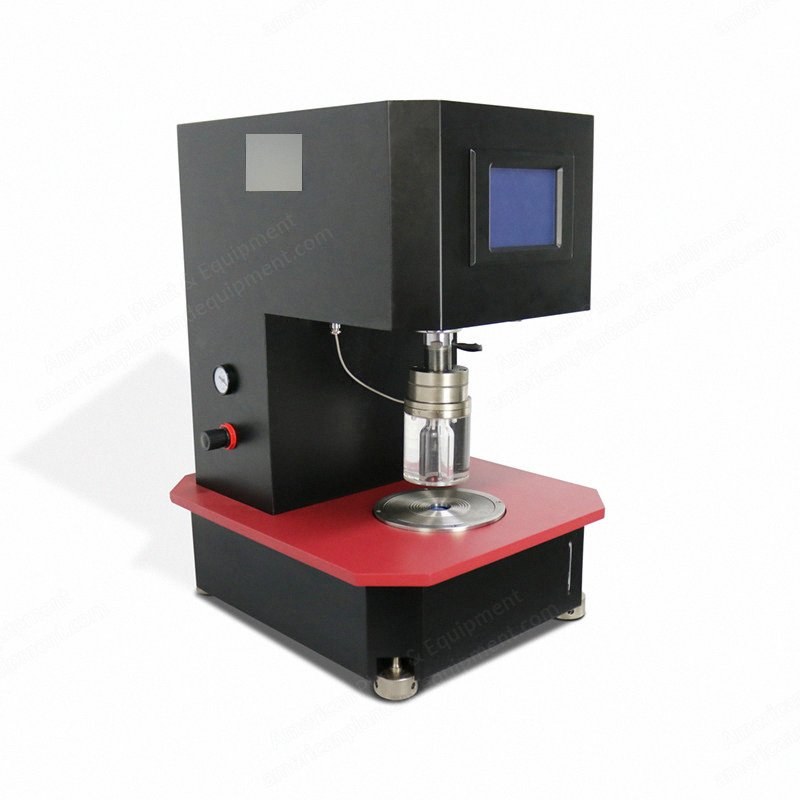

NovaStar, MC264, Fabric Bursting Strength Tester, 2.00 to 10.00 MPa, 220V (New)

Description

Overview
1. Fabric bursting strength tester designed to meet international standards for tests on paper, foils, paper boards, corrugated board, textiles, etc.
2. Used to determine pressure for a variety of fabrics, including knits, woven fabric, non-woven fabric, laminated fabric, and other craft-made fabrics, in standard conditions or under wet bursting strength and bursting dilation.
3. Also called a mullen bursting tester.
Specifications
1. Range: 2.00 mpa to 10.000 mpa
2. Minimum division value: 0.001 mpa to 0.003 mpa
3. Test area: 73 mm² (Φ30.5 mm), 100 mm² (Φ35.7 mm), 500 mm² (Φ79.8 mm), 1000 mm² (Φ112.8 mm) can be option
4. Thickness of rubber diaphragm: ≤2 mm
5. Pressure speed: 20 ml/min - 600 ml/min
6. Maximum expansion height: 75 ± 0.02 mm
7. Testing units: kpa, kgf/cm², atm, mmhg, lb/in² free shift
8. Test methods: constant rate bursting, constant expansion, constant pressure, constant time bursting
9. Output: printer, display output and can be connected to the computer
10. Power supply: ac 220v 50/60 hz 200 w
11. Dimensions: 550 × 450 × 700 mm
12. Net weight: 125 kg
13. Packed weight: 155 kg
14. Packed dimensions: 700 × 590 × 970 mm

HS code	9024.80

Capacity	2.00MPa to 10.000MPa

Pressure Speed	20ml/min - 600ml/min

Voltage	220 V
