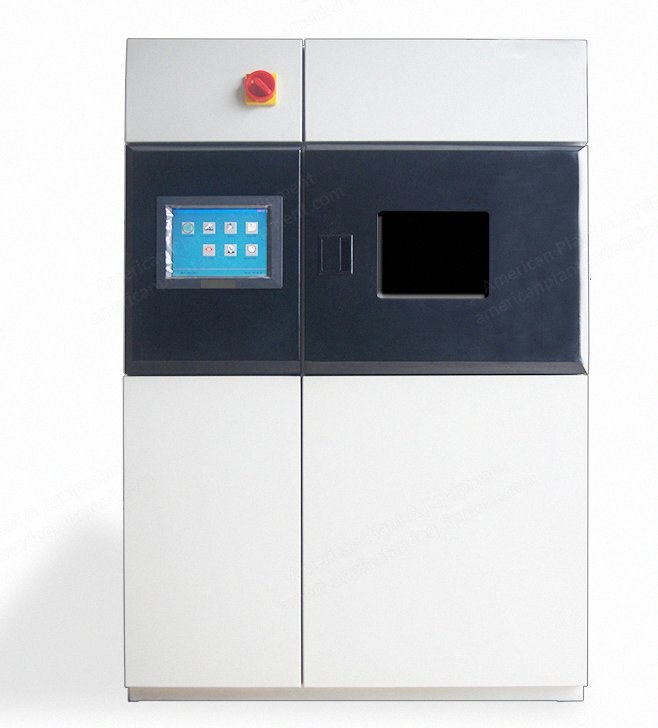

NovaStar, EC123, Xenon Arc Light Fastness Tester, 2500W, 12 Working Positions, 920x650x1680mm (New)

NovaStar, EC123, Xenon Arc Light Fastness Tester, 2500W, 12 Working Positions, 920x650x1680mm

Description

  1. Overview
    1. Xenon arc light fastness tester
    2. Uses a 2500 W long arc xenon lamp to simulate the solar spectrum
    3. High transmittance of filter combinations with 95% transmittance filters and filter cartridges
    4. Low power consumption while achieving the same irradiation light requirements, making the machine more energy saving and environment friendly
  2. Application
    1. Applies to light color fastness, anti-climate color fastness, light and perspiration color fastness, and light aging tests of textile, paint, dye, coating, rubber, plastic, wood floor, paper, and other materials
    2. Has anti-climate functions of exposing to the rain, revolution, and mist spraying
  3. Features
    1. 12 working positions monitoring, can set and inquire the irradiation energy
    2. Possesses fault prompt functions and self-diagnostic function
    3. 7-inch color touch screen with various test monitor models (animation, figure, and chart), simply operate, directly and clear
    4. Test and radio transmission are powered by using light conversion technology, no additional power supply is required
  4. Key Specifications
    1. Chamber temperature: 25-55°C; resolution: 0.1°C
    2. Chamber humidity: light cycle: 10-70% RH; resolution: 0.1 RH%
    3. Dark cycle: 30-95% RH; resolution: 0.1 RH%
    4. BST: 40-85°C; accuracy: ±1°C; resolution: 0.1°C
    5. BPT (option): 40-80°C; accuracy: ±2°C; resolution: 0.1°C
    6. Time control range: ≤10000 h
    7. Irradiance control range: 0.80-1.20 W/m² @ 420 nm (option: 340 nm, 420 nm, 300-400 nm, or 280-800 nm); accuracy: ±0.02 W/m² @ 420 nm
    8. Digital setting, closed-loop automatic compensation
    9. Xenon arc lamp rated power: 2500 W
    10. Sample holder rotation speed: 2-7 rpm
    11. Sample holders capacity: ISO: 145 × 45 mm, 12 pcs or AATCC: 145 × 70 mm, 6 pcs
    12. Timing of each sample holder, respectively: ≤10000 h
    13. Light period: ≤1000 h
    14. Spray period: ≤1000 h
    15. Power: AC 220 V ±10%, 50 Hz, 6.5 kW
    16. Rated power: 3.3 kW
    17. Dimension: 920 × 650 × 1680 mm
    18. Weight: 180 kg
