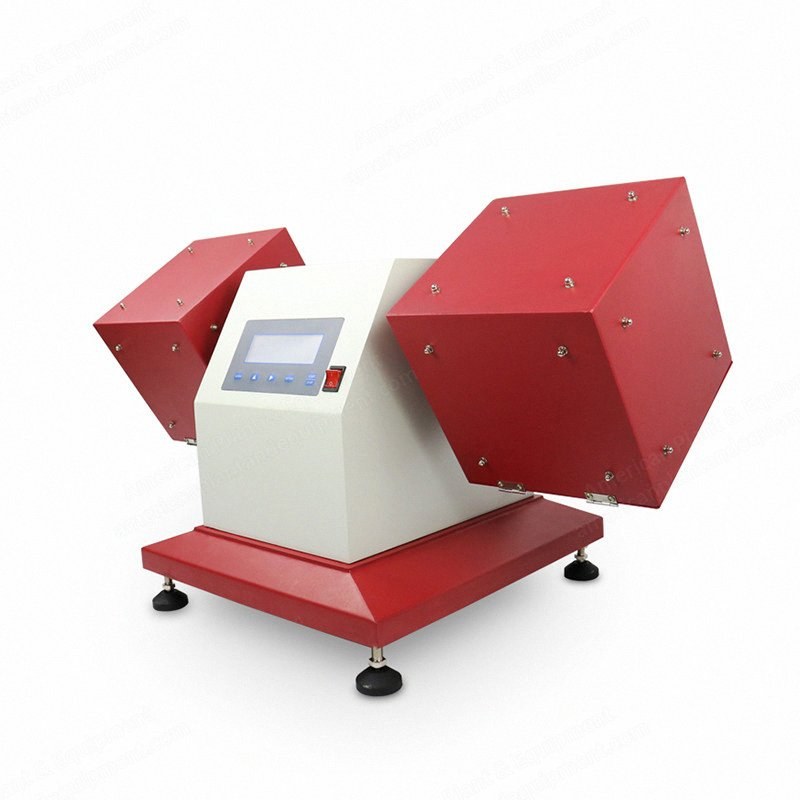

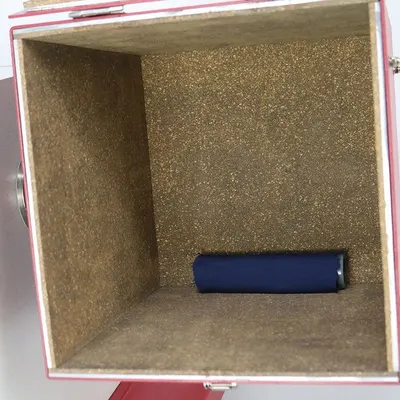

Description Overview Uses a universal drive system with 2, 4 or 9 position, electronic digital counter, and sample mounting fixture. The machine accepts ICI pilling boxes and drums / snagging boxes and drums. Ici pilling and snagging tester, to determine the surface pilling and snagging properties of both woven and knitted materials. Complies in full with the requirements of EN ISO 12945-1 and BS 5811, etc. Features Ici pilling tester simple and easy to operate. Preset testing cycles with automatic stop makes tests easier. High quality motor provides lower running sound and longer service life. User friendly loading and unloading structures design for testing drums makes changing drums for different tests more convenient. Specifications Number of pilling boxes: 2 boxes, 4 boxes, 9 boxes Rotational speed: 60 ± 2 rpm Internal dimensions: 235 × 235 mm Count range: 0 to 99999 Polyurethane sample tubes: external diameter: 31.5 ± 1 mm; l: 140 ± 1 mm; thickness: 3.2 ± 0.5 mm Power supply: ac 220 volts 50/60 Hz Dimensions (l x w x h): 1200 x 500 x 500 mm, 1200 x 500 x 800 mm, 1400 x 500 x 1600 mm Weight: 40 kg, 60 kg, 180 kg Included Accessories Cork lining: 6 pcs for each box Polyurethane sample tubes: 4 pcs for each box Sample template: 1 pc Power line: 1 pc Optional Accessories Pilling specimen mounting device: optional Standard photographs: optional Pilling assessment box: optional M&s random tumble pilling/snagging drum complete with liner, step, and 8 polyurethane sample mounting tubes with locking rings - m&s suppliers only: optional
