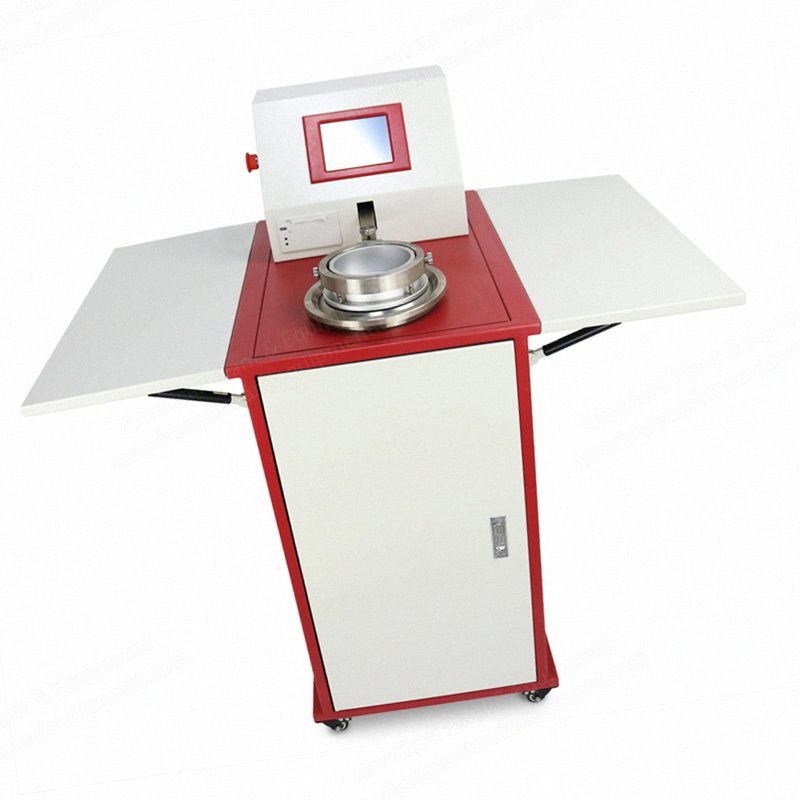

NovaStar, GL306, PLC Touch Screen, 4000Pa Nozzle Pressure, 700x520x1100mm (New)

NovaStar, GL306, PLC Touch Screen, 4000Pa Nozzle Pressure, 700x520x1100mm

Description

  1. Overview
    1. Menu-style interface design with freely switchable test units and direct printout without manual conversion.
    2. Measurement units include mm/s, cfm, cm³/cm²/s, l/m²/s, l/dm²/min, m³/m²/min, and many other options.
    3. Used to measure the air permeability of a variety of textile fabrics, including industrial fabrics, non-woven fabrics, and other textile products and air-permeable materials.
  2. Features
    1. Industrial color touch screen with man-machine dialogue interface operation, simple and easy to use.
    2. Pressure detection uses an imported high-precision air pressure sensor instead of the traditional hydraulic test method.
    3. Whole air permeability tester design uses a two-wing structure for easy customer testing.
    4. Automatically prompts to replace the nozzle number according to the test range, improving test efficiency.
    5. Test parameters can be set freely; 7 kinds of test units can be set by the customer free.
    6. Function of saving data when power down.
  3. Specifications
    1. Operation display: PLC + touch screen, PLC + touch screen + PC control.
    2. Test method: automatically.
    3. Test time: 10 to 15 seconds.
    4. Nozzle pressure difference: 4,000 Pa.
    5. Specimen pressure difference: 1,000 Pa.
    6. Data port: RS232C.
    7. Permeability range: 0.1 to 12,000 mm/s.
    8. Measuring error: ≤ ±2%.
    9. Measuring unit: mm/s, cfm, cm³/cm²/s, l/m²/s, l/dm²/min, m³/m²/min.
    10. Testing area: 5 cm², 20 cm², 50 cm², 100 cm², Ф50 mm (≈19.6 cm²), Ф70 mm (≈38.5 cm²).
    11. Fabric thickness: ≤12 mm.
    12. Nozzle parameter: number 0, 1, 2, 3, 4, 5, 6, 7, 8, 9; diameter 0.8, 1.2, 2, 3, 4, 6, 8, 10, 12, 16 mm.
    13. Power supply: AC 220 V 50/60 Hz, 2 kW.
    14. Dimensions: 700 x 520 x 1,100 mm (L x W x H).
    15. Weight: 93 kg.
  4. Standard Accessories
    1. 1 set of 20 cm² test plate and fixture.
    2. 1 set of 38.5 cm² test plate and fixture.
    3. 1 set of standard calibration plate.
    4. 1 set of nozzle.
    5. 1 power line.
    6. 1 operation software.
    7. 1 cable to connect with PC.
  5. Optional Accessories
    1. Other test plates and fixtures.
    2. Air compressor.
    3. Computer.
